ENGINE OVERHAUL GASKET KIT

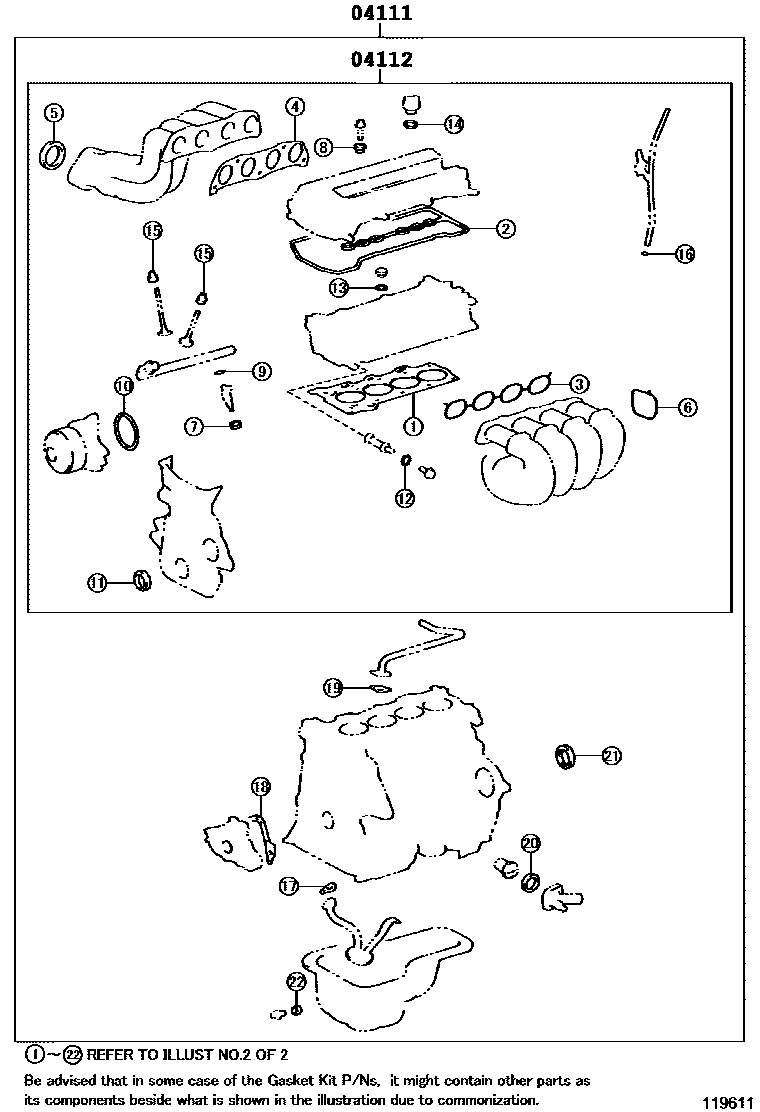

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-22150i200110-200206

main04111-22151i200206-200302

main04111-22152i200302-200404

main04111-22310i200404-200510

main04111-22880i200510-200702

04112GASKET KIT, ENGINE VALVE GRIND

main04112-22150i200110-200206

main04112-22151i200206-200302

main04112-22152i200302-200404

main04112-22310i200404-200510

main04112-22730i200510-200702

2 parts on this diagram · 4 diagrams in section
