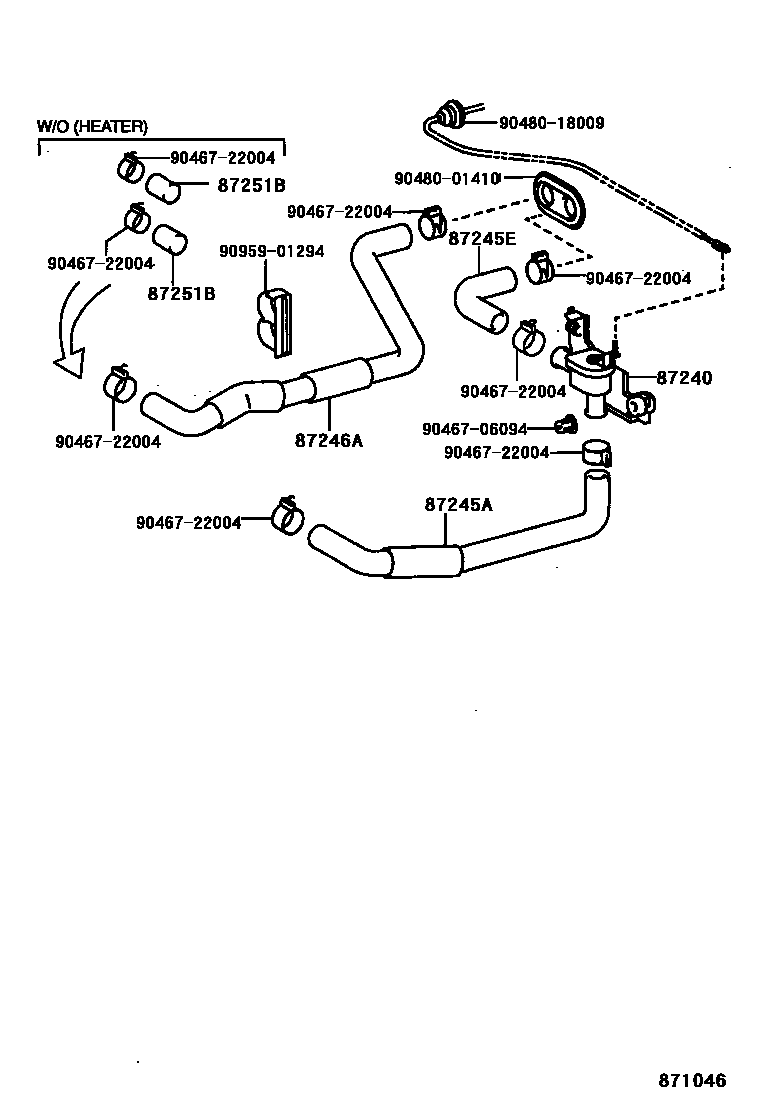

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

87240VALVE ASSY, HEATER WATER

main87240-12250iAE11#..RHD..(ARL,GEN)199704-200109

main87240-12260iAE112,EE110..GCC199704-200008

87245AHOSE, HEATER WATER, INLET A

main87245-1A542iEE110..GCC199704-199910

main87245-1A570iAE112..GCC199704-200008

main87245-1A640iAE11#..RHD..(ARL,GEN)199704-200109

main87245-1A680iEE110..GEN199704-199910

main87245-1A760iAE111..GL199704-199910

87245EHOSE, HEATER WATER, INLET E

main87245-1A440iAE11#..RHD..(ARL,GEN)199704-200109

main87245-1A530iAE11#,EE110..LHD199704-199910

87246AHOSE, HEATER WATER, OUTLET A

main87245-1A273iEE110..GCC199704-199910

main87245-1A332iAE111..GL199704-199910

main87245-1A581iAE112..GCC199704-199910

main87245-1A630iAE11#..RHD199704-199910

main87245-1A670iEE110..GEN199704-199910

87251BPLUG, HEATER WATER

main90339-16001×2iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

9046706094

main90467-06094

9046722004

main90467-22004

9048001410

main90480-01410

9048018009

main90480-18009

9095901294

main90959-01294

10 parts on this diagram · 4 diagrams in section
