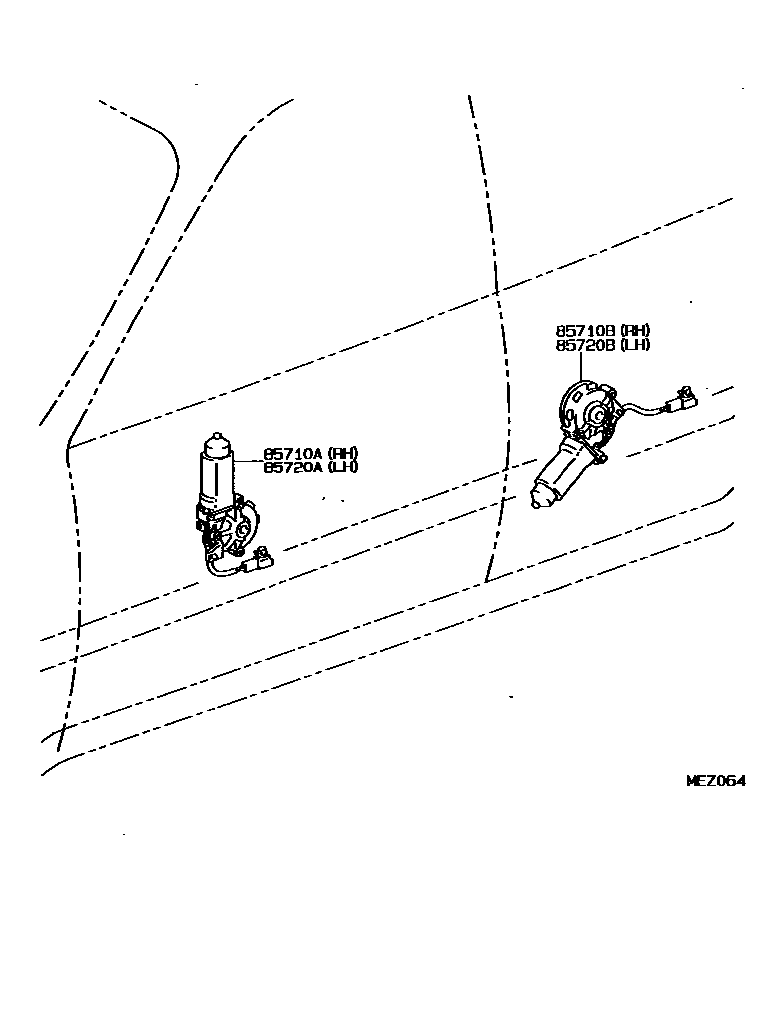

DOOR MOTOR & DOOR SOLENOID

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-12170iAE11#,EE110..RHD199704-199910

main85710-12220iAE11#,EE110..LHD199704-199910

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85710-12200iAE111..ARL;AE112..GCC;AE11#,EE110..GL,GLI,XL; AE112..GCC;AE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL)..(ARL,GCC)199704-199910

main85710-12270iAE11#,EE110200005-200109

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-12170iAE112,EE110..GCC199704-200008

main85720-12220iAE11#..RHD..(ARL,GEN)199704-200109

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85720-12200iAE111..ARL;AE112..GCC;AE11#,EE110..GL,GLI,XL; AE112..GCC;AE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL)..(ARL,GCC)199704-199910

main85720-12270iAE11#,EE110200005-200109

4 parts on this diagram · 1 diagram in section
