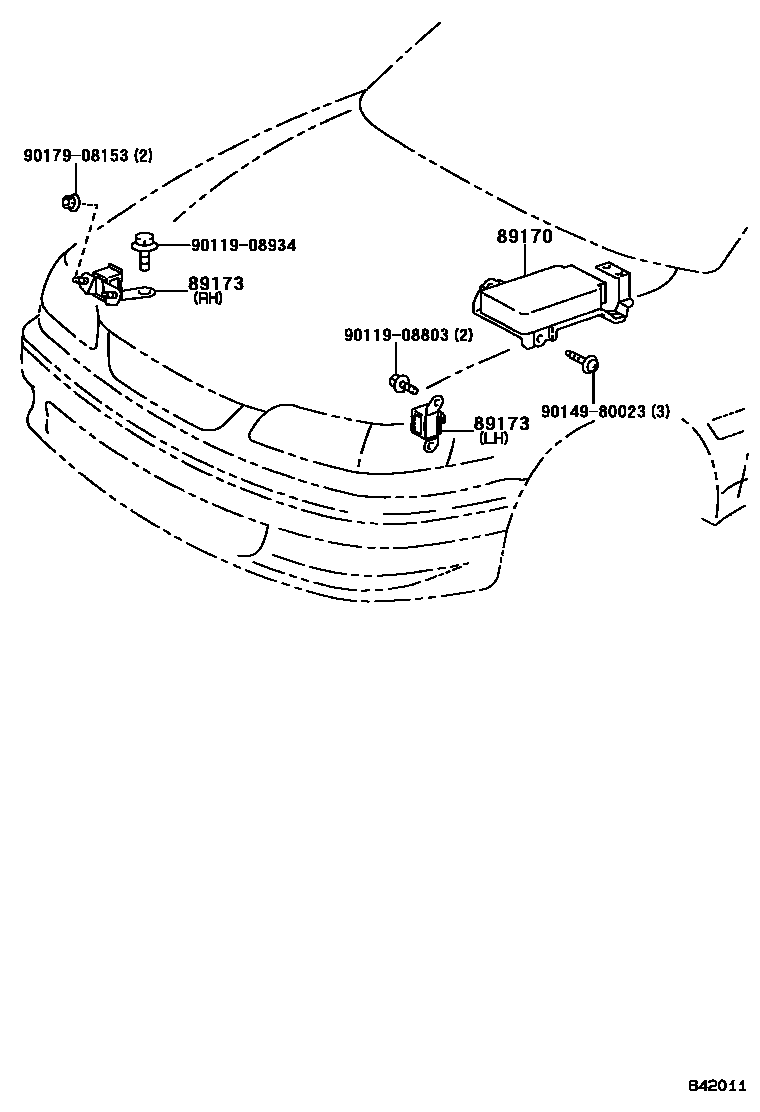

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-12080iAE11#..ARL199808-199811

*80,DRIVER SIDE & PASSENGER SIDE

main89170-12120iAE11#..NZ199710-199810

main89170-12130iAE11#,EE110..GCC,GEN; AE111..GLI..GEN;AE112,EE110..GCC199704-199812

main89170-12131iAE11#,EE110..GCC,GEN; EE110..GCC;AE11#..(GLI,XLI)..(GCC,GEN)199812-199910

main89170-12240iAE11#..ARL199808-199910

main89170-12250iAE11#..ARL199811-199910

*80,DRIVER SIDE & PASSENGER SIDE

main89170-12310iAE112,EE110..GCC199910-200008

main89170-12330iAE11#..ARL; AE111..GEN199910-200109

*80,DRIVER SIDE

main89170-13020iAE11#,EE110199910-200109

*80,DRIVER SIDE & PASSENGER SIDE

89173SENSOR, AIRBAG, FRONT

main89173-19115iAE11#..ARL199808-199910

RH

main89173-19125iAE11#..ARL199808-199910

LH

9011908803

main90119-08803

9011908934

main90119-08934

9014980023

main90149-80023

9017908153

main90179-08153

6 parts on this diagram · 1 diagram in section
