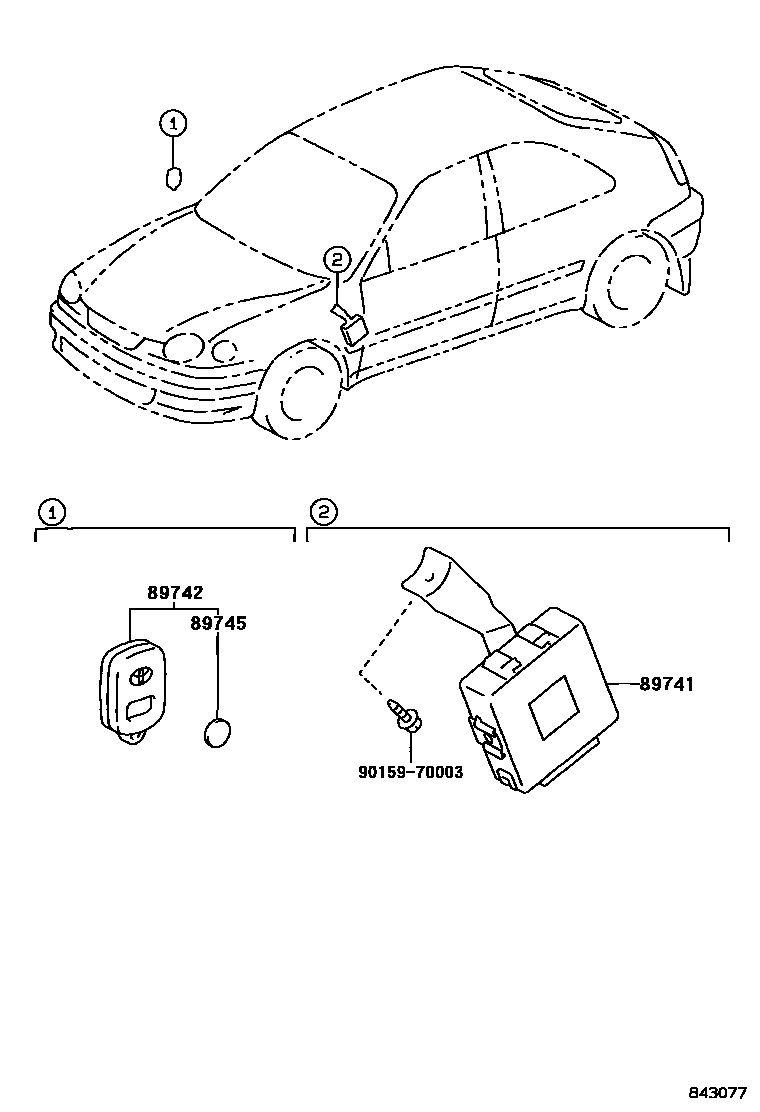

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89741-12140iAE11#..NZ199710-199810

main89741-12160iAE112,EE110..GCC199704-200008

main89741-12170iAE111..GLI..GEN199704-199910

main89741-12180iAE111..GL199704-199910

main89741-12190iAE11#..ARL199808-200109

89742TRANSMITTER, DOOR CONTROL

main89742-12180iAE112,EE110..GCC199704-200008

main89742-12210iAE111..GLI..GEN199704-200109

89745BATTERY, TRANSMITTER

main89745-50010iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

9015970003

main90159-70003

4 parts on this diagram · 1 diagram in section
