ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87008iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199710-200109

P/N LABEL=9008087008

main90987-02012iAE11#..GLI,XLI199704-199710

85910FRELAY, COMPUTER (FOR EFI)

main90080-87008iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199710-200109

P/N LABEL=9008087008

main90987-02012iAE11#..GLI,XLI199710-199910

P/N LABEL=9098702012

89279COVER, ENGINE CONTROL COMPUTER

main89279-13020iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-02020iAE11#..RHD199704-199910

P/N LABEL=8942002020

main89420-12070iAE11#..RHD..(ARL,GEN)199704-200109

P/N LABEL=8942012070

main89420-12150iAE112..GCC199704-200008

main89420-12190iAE111..GLI..GEN199805-199808

P/N LABEL=8942012190

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22090iAE112199704-199910

main89452-33030iAE111..RHD199704-199910

89456RESISTOR, VARIABLE

main89456-30010iAE11#..(GLI,XLI)..(GCC,GEN)199704-199910

89459ABRACKET, VARIABLE RESISTOR

main89459-12020iAE111..GLI..GEN199704-200109

89661COMPUTER, ENGINE CONTROL

main89661-1A350iAE112..GCC199704-199910

main89661-1A800iAE111..GLI..GEN199704-200109

main89661-1A810iAE111..GLI..GEN199704-199808

SINGAPORE SPEC

main89661-1E160iAE112..NZ199710-199810

main89661-1E310iAE111..4FC..GEN199808-199910

SINGAPORE SPEC

main89661-1E320iAE111..5F..ARL199808-200109

main89661-1E330iAE111..4FC..ARL199808-200109

main89661-1E340iAE112..5F..ARL199808-200109

main89661-1E350iAE112..4FC..ARL199808-200109

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12130iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12060iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

9011906539

main90119-06539

9015970003

main90159-70003

9043012005

main90430-12005

9043012221

main90430-12221

9331915010

main93319-15010

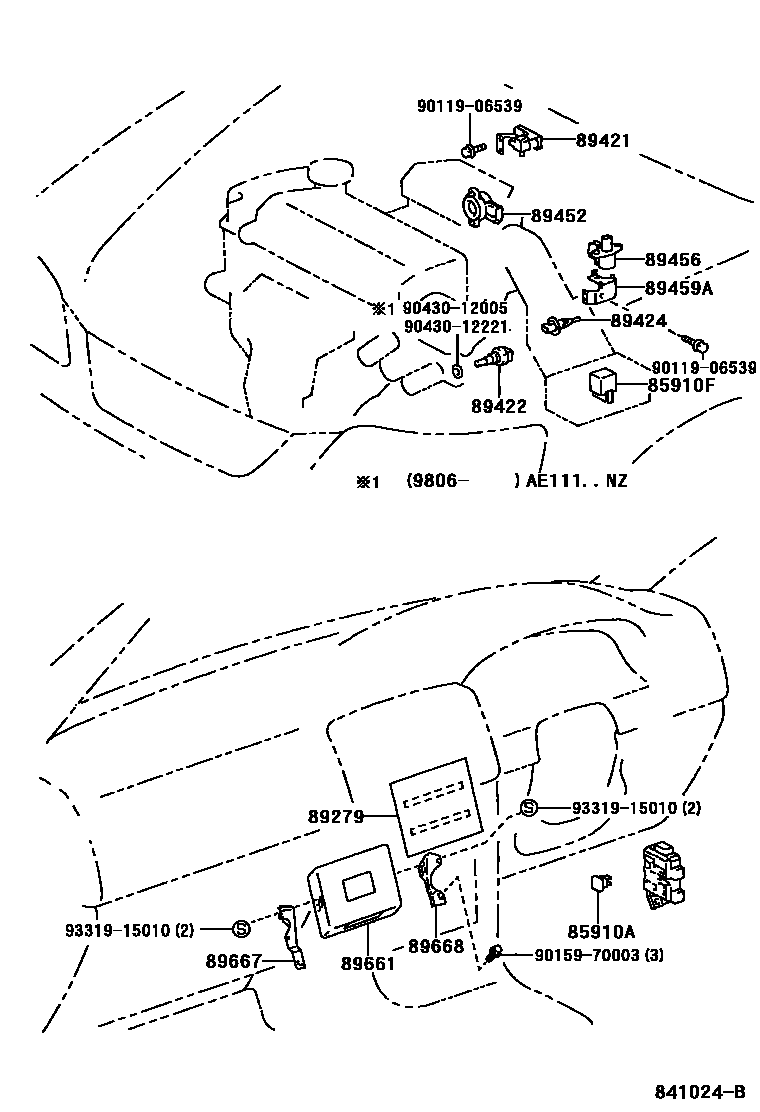

17 parts on this diagram · 1 diagram in section
