WIRING & CLAMP

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE 0004 1ENGINE ROOM 0005 1COWL,INSTRUMENT PANEL 0006 1COWL,INSTRUMENT PANEL 0007 1ROOF,DOOR,FLOOR 0008 1ROOF,DOOR,FLOOR 0009 1CLAMP & BRACKET 0010 1CLAMP & BRACKET 0011 1CABLE BOND 0012 1CABLE BOND 0013 1FUSIBLE LINK REPAIR

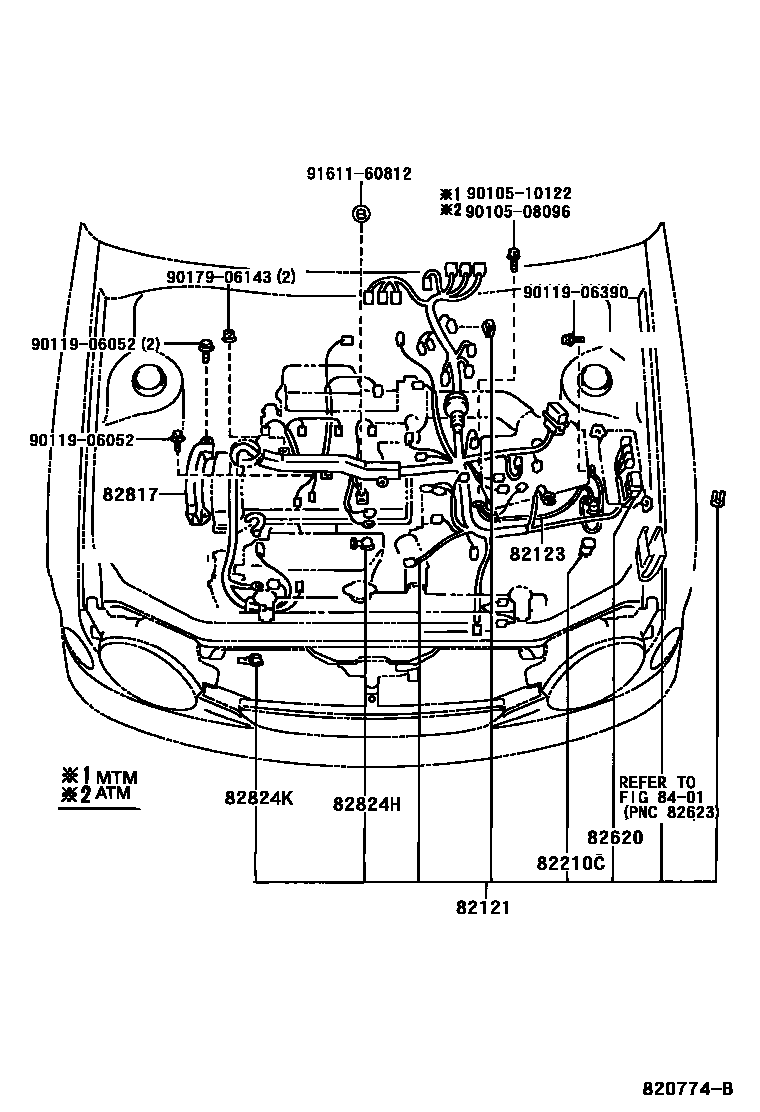

82121WIRE, ENGINE

main82121-1N550iAE111..5F..GLI..GEN199704-200109

main82121-1N560iAE111..4FC..GEN199704-200109

main82121-1N570iAE111..5F..NZ199710-199808

main82121-1N571iAE111..5F..(ARL,NZ); AE111..5F..GLI..GEN199808-199910

SINGAPORE SPEC

main82121-1N580iAE111..4FC..GEN199704-199808

SINGAPORE SPEC

main82121-1N581iAE111..4FC..ARL199808-200109

main82121-1N710iAE112..5F..NZ199710-199808

main82121-1N711iAE112..RHD..5F199808-199910

main82121-1N720iAE112..4FC..NZ199710-199808

main82121-1N721iAE112..4FC..ARL199808-200109

main82121-1N730iAE112..5F..GCC199704-200008

main82121-1N740iAE112..4FC..GCC199704-199910

main82121-1N850iEE110..GEN199704-199908

main82121-1N851iEE110..GEN199908-199910

main82121-1N870iEE110..GCC199704-200001

main82121-1N871iEE110200001-200008

main82121-1T020iAE111..GL199704-199910

main82121-1T260iAE111..4FC..GEN199808-200010

SINGAPORE SPEC

82123WIRE, ENGINE, NO.3

main82123-12290iAE111,EE110;AE112..ARL,GCC199704-199910

main82123-12310iAE11#..(GLI,XLI)..(GCC,GEN);AE112,EE110..(GT,XL)..(ARL,GCC)199704-200109

W(BATTERY=32B24L OR 34B19L)

82210CFUSIBLE LINK

main90982-08228iAE11#..GLI,XLI199704-199910

50A,TERM.:MALE,RED

main90982-08246iAE11#,EE110199704-199910

100A,TERM.:MALE,BLUE

main90982-08280iEE110;AE11#..ARL,GEN,NZ199704-199910

30A,TERM.:FEMALE,PNK

main90982-08281iAE11#;EE110..GCC199704-199910

40A,TERM.:FEMALE,GRN

main90982-08282iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

50A,TERM.:FEMALE,RED

82620BLOCK ASSY, FUSIBLE LINK

main82620-02020iAE11#199910-200109

(L)

main82620-13020iAE11#,EE110; AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-199910

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-1A070iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

82824HCONNECTOR, WIRING HARNESS

main82824-30130×2iAE111..GEN; AE111..GLI..GEN199705-199910

82824KCONNECTOR, WIRING HARNESS

main82824-12210iAE11#..RHD..(ARL,GEN)199704-200109

BLACK

main82824-30130iAE11#..RHD..(ARL,GEN)199704-200109

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508096

main90105-08096

9010510122

main90105-10122

9011906052

main90119-06052

9011906390

main90119-06390

9017906143

main90179-06143

9161160812

main91611-60812

14 parts on this diagram · 13 diagrams in section
