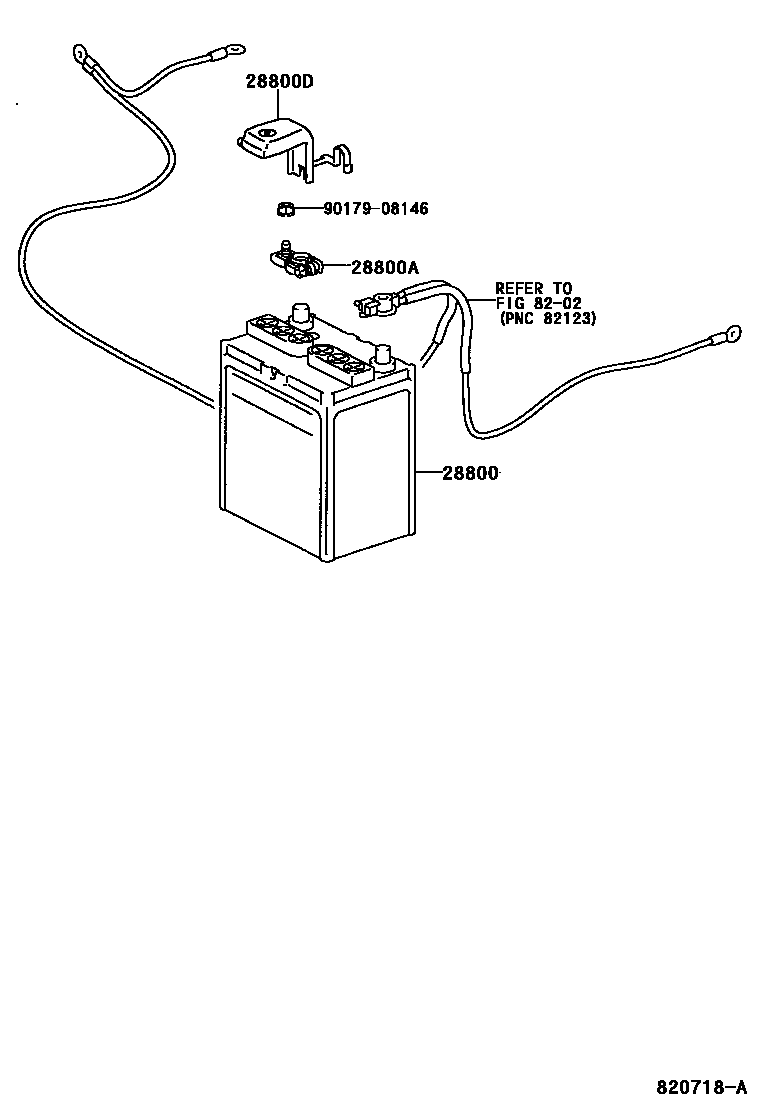

BATTERY & BATTERY CABLE

28800BATTERY

main28800-11100i2E..EE110..GCC199704-200008

28B19L

main28800-16041i4AFE,7AFE..AE11#200103-200109

34B19L

main28800-16090i4AFE..AE111..4FC..NZ199710-199808

46B24L,YUASA

main28800-16100i4AFE..AE111..4FC..NZ199710-199808

46B24L,SHINKOBE

main28800-16110i4AFE..AE111..4FC..NZ199710-199808

46B24L,MATSUSHITA

main28800-16120i4AFE..AE111..4FC..NZ199710-199808

46B24L,FURUKAWA

main28800-16130i4AFE..AE111..4FC..GEN;4AF#,2E..AE111,EE110..5F..(GEN,NZ); 4AFE..AE111..GEN199704-199808

32B24L(S)

main28800-16160i4AFE,7AFE..AE11#..RHD200004-200109

32B24L(S)

main28800-21150i4AFE,7AFE..AE11#200007-200109

34B19L,NIPPON DENCHI

main28800-21160i4AFE,7AFE..AE11#200007-200109

34B19R

main28800-22010i4AFE,7AFE..AE11#200007-200109

34B19L,SINKOUBE

main28800-22020i4AFE,7AFE..AE11#200007-200109

34B19L,FURUKAWA

main28800-26040i4AFE,7AFE..AE11#..GCC,GEN; 4AFE..AE111..5F;4AF,7AFE..AE11#..LHD;4AFE..AE111..4FC..GEN199704-199808

34B19L

main28800-26050i4AFE,7AFE..AE11#200007-200103

34B19L,YUASA

main28800-31080i2E..EE110..GCC;4AFE,7AFE..AE11#..GCC,GEN; 4AFE..AE111..5F;4AFE..AE111..4FC..GEN;4AF,7AFE,2E..AE11#,EE110199704-199712

34B19L(S)

main28800-31112i4AFE,7AFE..AE11#200103-200109

34B19L(S)

main28800-72010i2E..EE110..GCC;4AFE,7AFE..AE11#..GCC,GEN; 4AFE..AE111..5F;4AFE..AE111..4FC..GEN;4AF,7AFE,2E..AE11#,EE110199712-199808

34B19L(S)

28800ATERMINAL, BATTERY POSITIVE

main90982-05034i2E..EE110..GCC;4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200005

main90982-05035i4AF#,7AFE,2E..AE11#,EE110199704-199910

W(BATTERY=32B24L OR 34B19L)

main90982-05054i4AFE,7AFE,2E..AE11#,EE110200005-200109

W(BATTERY=32B24L OR 34B19L)

main90982-05055i4AFE,7AFE,2E..AE11#,EE110200005-200109

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12290i2E..EE110..GCC;4AFE,7AFE..AE11#..ARL,GCC,GEN; 4AF#,7AFE,2E..AE11#,EE110199704-199812

main82821-12480i2E..EE110..GCC;4AFE,7AFE..AE11#199812-200005

main82821-12490i4AFE,7AFE,2E..AE11#,EE110200005-200109

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

5 parts on this diagram · 1 diagram in section
