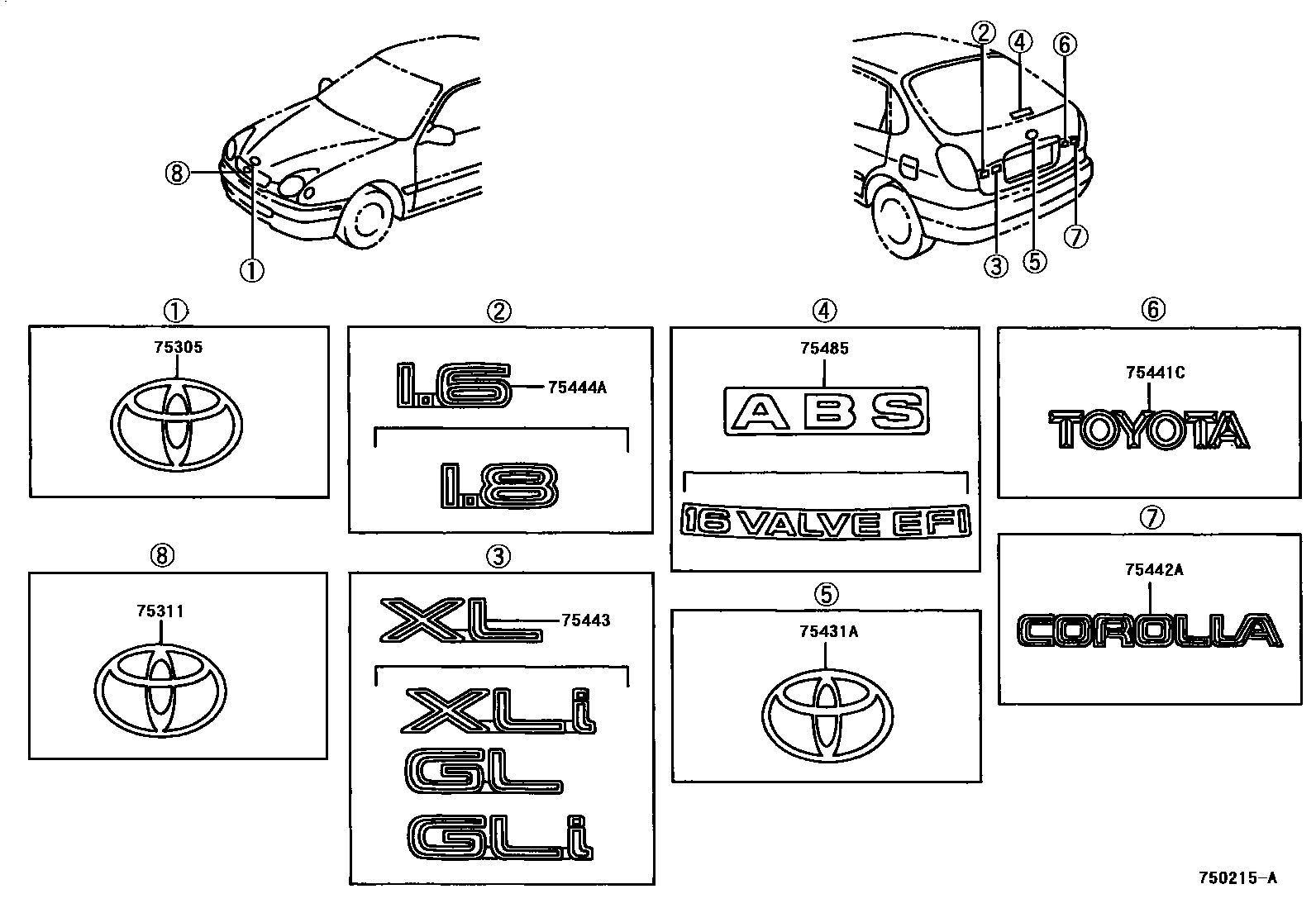

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75305EMBLEM, HOOD

main75331-12100iAE11#,EE110; EE110..GCC;AE11#..GLI,XLI199810-199910

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-1E010iAE11#,EE110199910-200109

75431AEMBLEM, BACK DOOR, NO.1

main75431-12130iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

75441CPLATE, BACK DOOR NAME

main75441-12800iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

TOYOTA

75442APLATE, BACK DOOR NAME, NO.2

main75442-1A390iAE11#,EE110199704-199910

COROLLA

75443PLATE, BACK DOOR NAME, NO.3

main75444-1A500iEE110..GCC199704-200008

XL

main75444-1A510iAE11#..XLI..(GCC,NZ); AE112..GCC199704-199810

XLI

main75444-1A520iAE111..GL199704-199910

GL

main75444-1A530iAE111..GLI199810-200109

GLI

75444APLATE, BACK DOOR NAME, NO.4

main75443-1A820iAE111199704-199910

1.6

main75443-1A840iAE112199704-199910

1.8

75485PLATE, BACK WINDOW NAME

main75485-12320iAE112;AE111..RHD..(ARL,GEN)199704-199910

ABS

main75485-12360iAE112..GCC;AE111..RHD..(GEN,NZ)199704-199910

16 VALVE EFI

8 parts on this diagram · 1 diagram in section
