ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-12250-B1iAE11#,EE110..LHD199704-199910

DK.CHARCOAL,TRIM1#

main74102-12260-B0iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

main74102-12260-B1iAE11#..(GLI,XLI)..(ARL,GEN)199704-200109

DK.CHARCOAL,TRIM1#

main74102-12340-B0iAE112..GT199910-200109

LIGHT SILVER,TRIM1#

74130RECEPTACLE ASSY, REAR ASH

main74109-12020-B3iAE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL,XLI)..(ARL,GCC)199704-200109

MD.CHARCOAL,TRIM1#

main74109-12020-P0iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-12040iAE11#,EE110199910-200109

74137BRETAINER, REAR ASH RECEPTACLE, INNER

main74137-12010iAE11#,EE110199910-200109

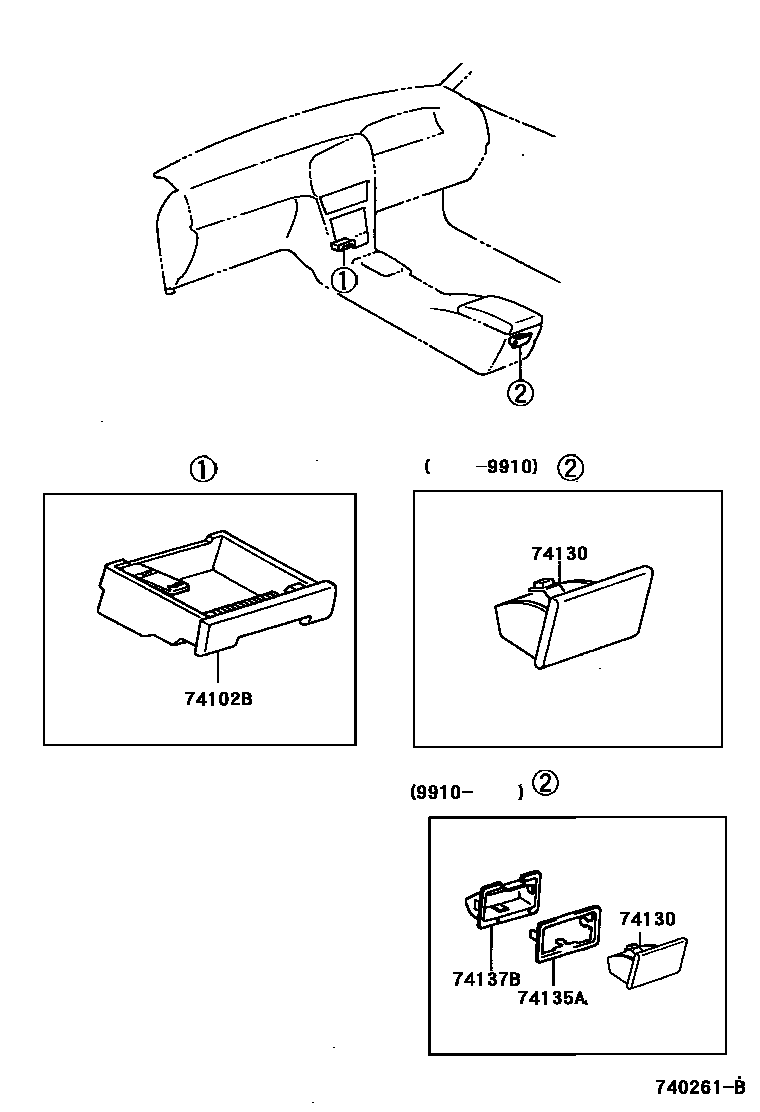

4 parts on this diagram · 1 diagram in section
