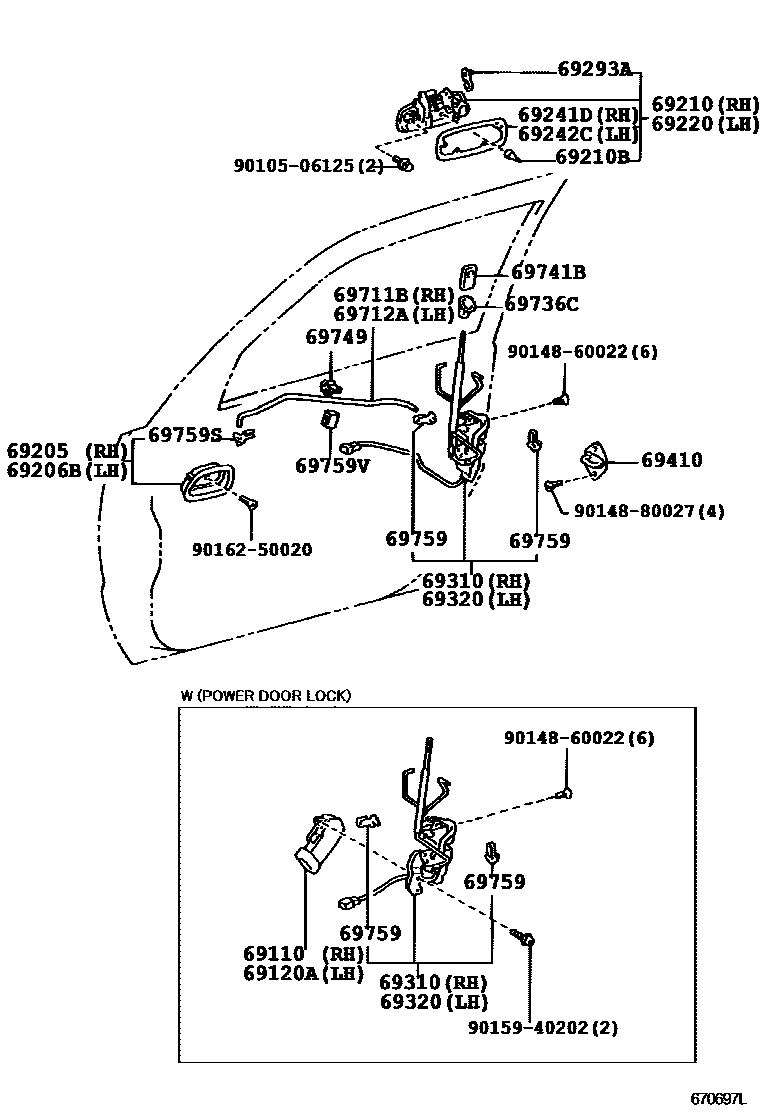

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-12030iAE111,EE110..RHD..GEN199704-200109

main69110-12040iAE112,EE110..GCC199704-200008

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-12030iAE111..GLI..GEN199704-200109

main69120-12040iAE11#,EE110..LHD199704-200008

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12160-B0iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

sub69205-12160

main69205-12160-B0iAE112..GT199910-200109

SHADOW GRAY,TRIM1#

sub69205-12160

main69205-12160-B1iAE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL,XLI)..(ARL,GCC)199704-200109

MD.CHARCOAL,TRIM1#

sub69205-12160

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12160-B0iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

sub69206-12160

main69206-12160-B0iAE112..GT199910-200109

SHADOW GRAY,TRIM1#

sub69206-12160

main69206-12160-B1iAE11#,EE110199704-200109

MD.CHARCOAL,TRIM1#

sub69206-12160

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12280iAE11#,EE110..(XL,XLI)..(ARL,GCC,GEN)199704-200109

BLACK

main69210-12290-A0iAE111..RHD;AE112..GCC;AE112,EE110..(GLI,XL)..(ARL,GCC)199704-200109

SUPER WHITE 2,040

sub69210-12290

main69210-12290-B3iAE112..GLI..ARL;AE111,EE110..ARL,GEN199704-200109

SILVER ME,199

sub69210-12290

main69210-12290-C0iAE112..GLI..ARL;AE111,EE110..ARL,GEN199704-200109

BLACK ME,205

sub69210-12290

main69210-12290-D1iAE112..GLI;AE112..GCC;AE111,EE110199704-199910

CORAL REEF M.M.,3L6

sub69210-12290

main69210-12290-D2iAE111,EE110..GEN199704-199808

RED,3M7

sub69210-12290

main69210-12290-D4iAE111..RHD;AE112..GCC;AE112,EE110..(GLI,XL)..(ARL,GCC)199808-200109

SUPER RED II,3E5

sub69210-12290

main69210-12290-D6iAE11#,EE110199910-200109

RED M.M.,3N8

sub69210-12290

main69210-12290-E0iAE111..GLI..GEN199704-199808

APRICOT M.M.,4P0

sub69210-12290

main69210-12290-F3iAE11#,EE110199910-200109

GOLD ME.,581

sub69210-12290

main69210-12290-G1iAE112..GLI..ARL;AE111..RHD..(ARL,GEN)199704-199910

GREEN M.M.,6P5

sub69210-12290

main69210-12290-G8iAE11#,EE110199910-200109

GREEN MC.,6R8

sub69210-12290

main69210-12290-J2iAE112..GLI..ARL;AE111..RHD..(ARL,GEN)199704-200109

BLUE M.M.,8L5

sub69210-12290

main69210-12290-J3iAE112..GLI..ARL;AE111,EE110..ARL,GEN199704-200109

DK.BLUE,8M4

sub69210-12290

main69210-12290-J7iAE112..GLI..ARL;AE111..RHD..(ARL,GEN)199808-199910

BLUE M.M.,8M9

sub69210-12290

main69210-12290-K0iAE111..GLI..GEN199704-199808

LAVENDER ME.,932

sub69210-12290

main69210-12290-K1iAE112..GLI;AE112..GCC;AE111,EE110199808-199910

VIOLET M.M.,944

sub69210-12290

main69210-12290-R0iAE11#,EE110199910-200109

DK.BLUE M.M.,8L3

sub69210-12290

main69210-12300iAE11#..NZ199710-199810

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018iAE11#,EE110199704-200109

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-12280iAE11#,EE110..(GT,XL,XLI)..(ARL,GCC)199704-200109

BLACK

main69220-12290-A0iAE11#,EE110199704-200109

SUPER WHITE 2,040

sub69220-12290

main69220-12290-B3iAE112..GLI..ARL;AE111..RHD..(ARL,GEN)199704-200109

SILVER ME,199

sub69220-12290

main69220-12290-C0iAE112..GLI..ARL;AE111..RHD..(ARL,GEN)199704-200109

BLACK ME,205

sub69220-12290

main69220-12290-D1iAE111..RHD;AE112..GCC;AE112,EE110..(GLI,XL)..(ARL,GCC)199704-199910

CORAL REEF M.M.,3L6

sub69220-12290

main69220-12290-D2iAE111..GLI..GEN199704-199808

RED,3M7

sub69220-12290

main69220-12290-D4iAE111..RHD;AE112..GCC;AE112,EE110..(GLI,XL)..(ARL,GCC)199808-200109

SUPER RED II,3E5

sub69220-12290

main69220-12290-D6iAE11#,EE110199910-200109

RED M.M.,3N8

sub69220-12290

main69220-12290-E0iAE111,EE110..GEN199704-199808

APRICOT M.M.,4P0

sub69220-12290

main69220-12290-F3iAE11#,EE110199910-200109

GOLD ME.,581

sub69220-12290

main69220-12290-G1iAE111..RHD;AE112..GCC;AE112,EE110..(GLI,XL)..(ARL,GCC)199704-199910

GREEN M.M.,6P5

sub69220-12290

main69220-12290-G8iAE11#,EE110199910-200109

GREEN MC.,6R8

sub69220-12290

main69220-12290-J2iAE112..GLI..ARL;AE111,EE110..ARL,GEN199704-200109

BLUE M.M.,8L5

sub69220-12290

main69220-12290-J3iAE111..RHD;AE112..GCC;AE112,EE110..(GLI,XL)..(ARL,GCC)199704-200109

DK.BLUE,8M4

sub69220-12290

main69220-12290-J7iAE112..GLI;AE112..GCC;AE111,EE110199808-199910

BLUE M.M.,8M9

sub69220-12290

main69220-12290-K0iAE111..GLI..GEN199704-199808

LAVENDER ME.,932

sub69220-12290

main69220-12290-K1iAE112..GLI..ARL;AE111..RHD..(ARL,GEN)199808-199910

VIOLET M.M.,944

sub69220-12290

main69220-12290-R0iAE11#,EE110199910-200109

DK.BLUE M.M.,8L3

sub69220-12290

main69220-12300iAE11#..NZ199710-199810

sub69220-12280

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main69241-12100iAE11#,EE110199704-200109

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main69242-12050iAE11#,EE110199704-200109

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

RH

main69293-12040iAE11#,EE110199704-200109

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-12550iAE112,EE110..GCC,GEN199704-200109

main69310-12590iEE110..GEN199704-200109

W(POWER DOOR LOCK)

main69310-12600iAE11#..ARL199808-200109

W(POWER DOOR LOCK)

main69310-12610iAE11#,EE110..LHD199704-200008

W(POWER DOOR LOCK)

69320LOCK ASSY, FRONT DOOR, LH

main69320-12560iAE111..ARL199704-200109

main69320-12590iAE11#..RHD199704-200109

W(POWER DOOR LOCK)

main69320-12600iAE11#,EE110..LHD199704-200008

W(POWER DOOR LOCK)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-12170iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-12180iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-12121iAE11#,EE110199704-200109

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-12040-B0iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

sub69741-12040

main69741-12040-B0iAE112..GT199910-200109

SHADOW GRAY,TRIM1#

sub69741-12040

main69741-12040-B3iAE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL,XLI)..(ARL,GCC)199704-200109

MD.CHARCOAL,TRIM1#

sub69741-12040

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12070iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20040iAE11#,EE110199704-200109

YELLOW

main69759-20050iAE11#,EE110199704-200109

BROWN

main69759-24010iAE11#,EE110199704-200109

NATURAL

main69759-24020iAE11#,EE110199704-200109

BLUE

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-22040iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

LH

main69759-22050iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

RH

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-14010iAE11#,EE110199704-200109

80 X 40

main69759-20390iAE11#,EE110199704-200109

60 X 40

9010506125

main90105-06125

9014860022

main90148-60022

9014880027

main90148-80027

9015940202

main90159-40202

9016250020

main90162-50020

26 parts on this diagram · 1 diagram in section
