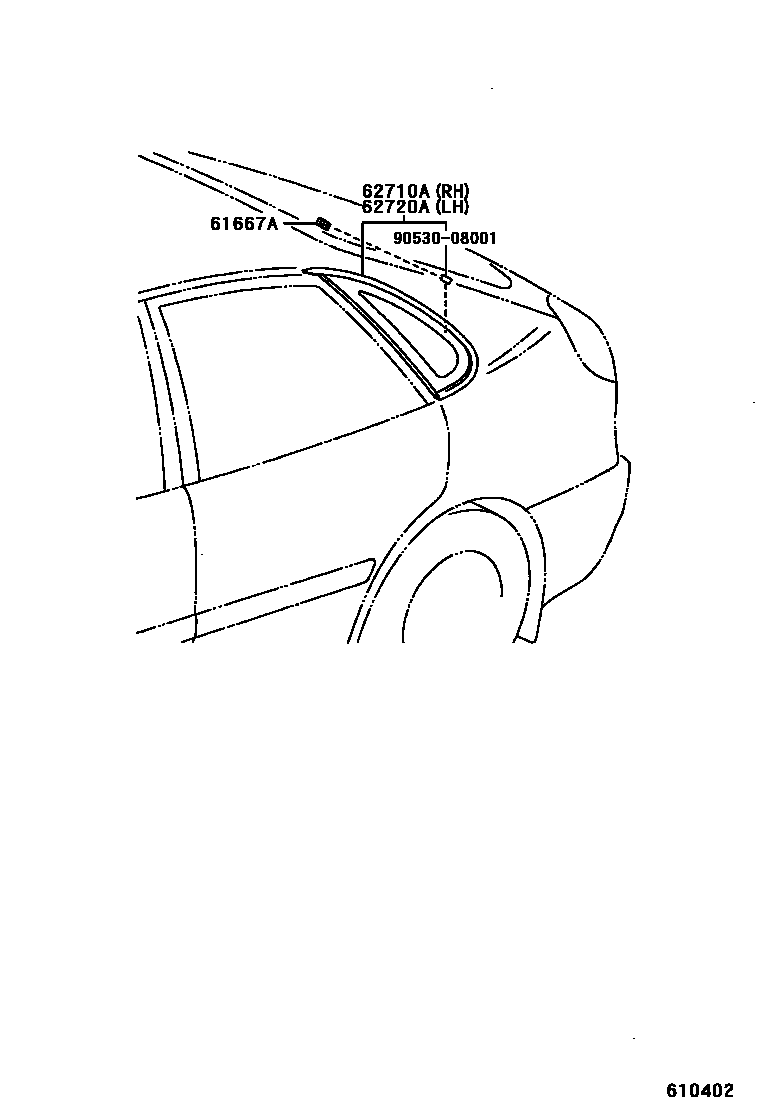

QUARTER WINDOW

61667ASPACER QUARTER PANEL, NO.1

main61667-14030×2iAE11#,EE110; EE110..GCC;AE11#..GLI,XLI199704-199709

main62785-16030×2iAE11#,EE110199709-199910

62710AWINDOW ASSY, QUARTER, RH

main62710-1A010iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

*TEM,T=3.5,GREEN

62720AWINDOW ASSY, QUARTER, LH

main62720-1A010iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

*TEM,T=3.5,GREEN

9053008001

main90530-08001

4 parts on this diagram · 1 diagram in section
