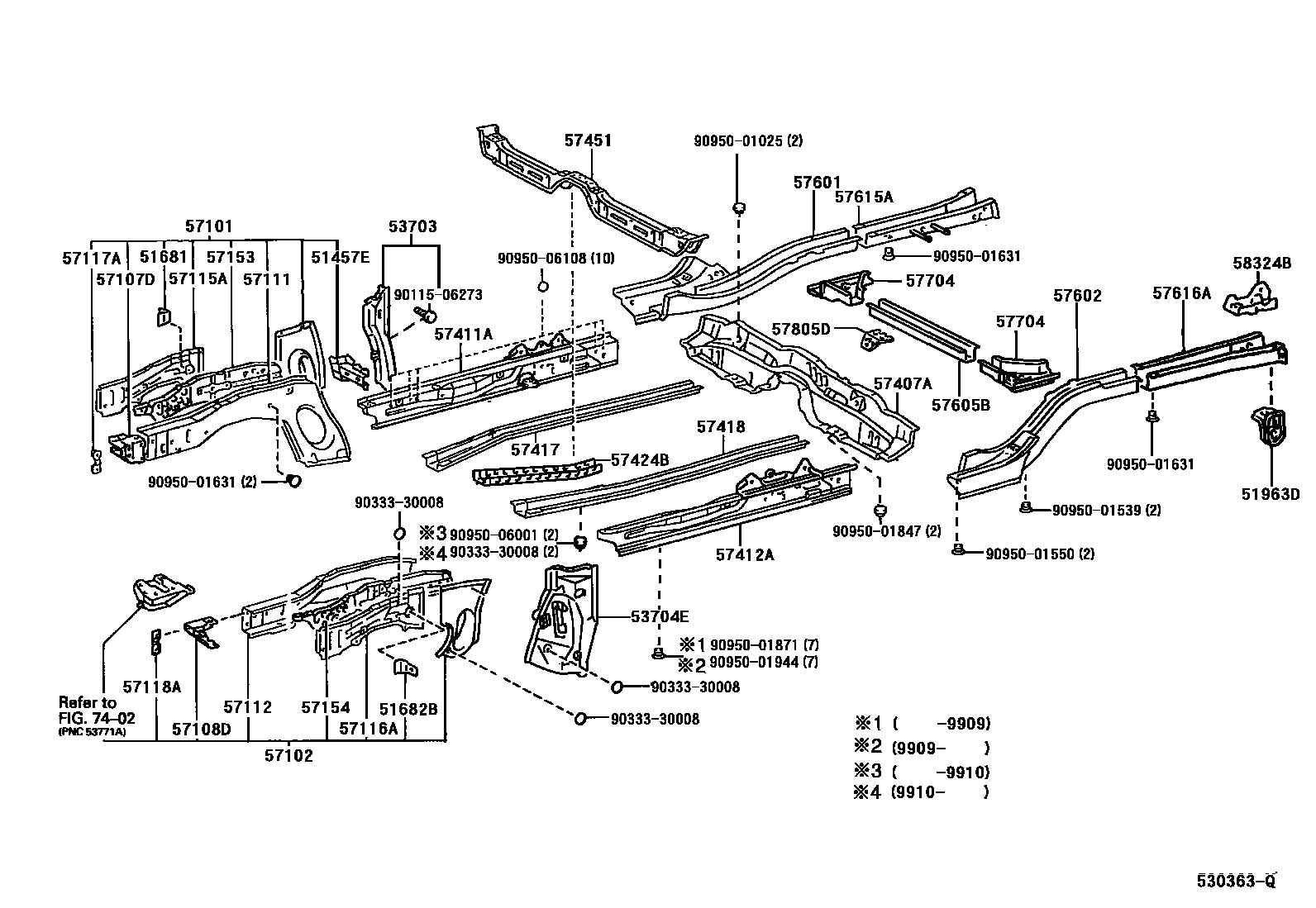

FLOOR SIDE MEMBER

51457EBRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBER

main51457-12020iAE112,EE110..GCC199704-200008

51681BRACKET, FLEXIBLE HOSE

main51681-12050iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

51682BBRACKET, FLEXIBLE HOSE, LH

main51682-12060iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

51963DHOOK, TRANSPORT, REAR LH

main51096-12040iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

53703APRON SUB-ASSY, FRONT FENDER, REAR RH

main53703-12040iAE11#,EE110..LHD199704-199910

main53703-12060iAE11#..RHD..(ARL,GEN)199704-200109

53704EAPRON SUB-ASSY, FRONT FENDER, REAR LH

main53704-12020iAE11#,EE110..RHD199704-199910

main53704-12090iAE11#,EE110..LHD199704-199910

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-12930iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200008

main57101-12931iEE110..GCC199704-200008

main57101-1A906iAE11#200008-200109

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-12939iAE11#,EE110199704-199910

main57102-1A906iAE11#200008-200109

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57125-13010iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57126-13010iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

57111MEMBER, FRONT SIDE, RH

main57111-12201iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

57112MEMBER, FRONT SIDE, LH

main57112-12142iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12060iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12060iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-12110iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57117-12110iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57016-12050iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

main57016-12060iEE110199704-199910

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57017-13010iAE11#,EE110199704-199910

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-12070iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-12530iAE11#,EE110199704-199910

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-12530iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-13010iAE11#,EE110199704-199910

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-13010iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

57424BREINFORCEMENT, FRONT FLOOR UNDER, INNER LH

main57424-12020iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

57451MEMBER, FRONT FLOOR CROSS

main57451-12152iAE11#,EE110; EE110..GCC;AE11#..GLI,XLI199704-199707

main57451-12153iAE11#,EE110199707-199910

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-1A901iAE11#..ARL199808-199910

main57601-1A903iAE11#,EE110..GCC,GEN,NZ; AE111..GLI..GEN;AE112,EE110..GCC199704-199910

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-1A901iAE11#,EE110199704-199910

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-12150iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-12902iAE11#,EE110199704-199910

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-12904iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

57704SUPPORT SUB-ASSY, REAR SUSPENSION SPRING

main57695-12030iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

RH

main57696-12030iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

LH

main57703-12080iAE11#..ARL199808-199910

RH

main57704-12100iAE11#..ARL199808-199910

LH

57805DREINFORCEMENT ASSY, NO.1 SEAT LEG, REAR NO.1

main57805-12060iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH

main58324-12070iAE11#..ARL199910-200109

9011506273

main90115-06273

9033330008

main90333-30008

9095001025

main90950-01025

9095001539

main90950-01539

9095001550

main90950-01550

9095001631

main90950-01631

9095001847

main90950-01847

9095001871

main90950-01871

9095001944

main90950-01944

9095006001

main90950-06001

9095006108

main90950-06108

44 parts on this diagram · 1 diagram in section
