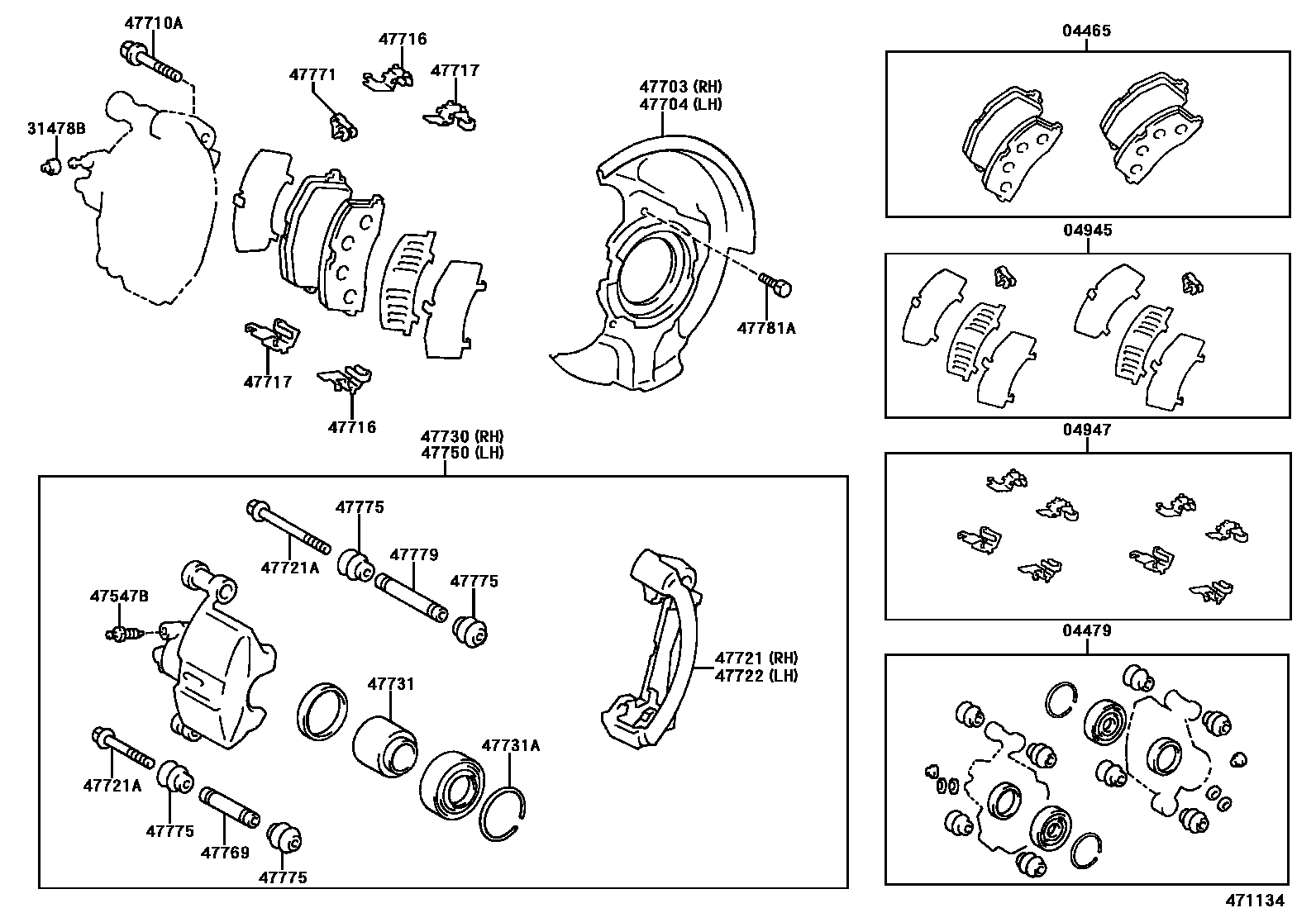

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-12240iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

MARK SUMITOMO PS522H,W(ABS)

main04465-12510iAE11#..NZ199804-199810

MARK AISIN PC543

main04465-12540iAE11#..ARL199808-200109

MARK NBK PN540H

sub04465-12593

main04465-12550iAE111..GLI..GEN199704-200005

MARK AK PA533

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12091iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

main04479-12180iAE11#..ARL199808-199910

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-12060iAE11#,EE110199709-199804

main04945-13020iAE11#..NZ199804-199810

main04945-20090iAE11#..ARL199808-199910

main04945-32060iEE110..GCC;AE11#..GLI,XLI199704-199709

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20060iAE11#,EE110..GCC,GEN,NZ199704-199910

main04947-33130iAE11#..ARL199808-200109

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-12160iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

main47781-12170iAE11#..ARL199808-200109

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47782-12160iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

main47782-12170iAE11#..ARL,NZ199710-199910

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iAE11#,EE110199704-199910

*12-1.25PX25.8-19.5

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140×4iAE11#,EE110..GCC,GEN,NZ199704-199910

main47716-33050×2iAE11#..ARL199808-200109

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-33060×2iAE11#..ARL199808-199910

main47717-20140×4iAE11#,EE110..GCC,GEN,NZ199704-199910

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12120iAE111,EE110..GL,XL199704-199910

main47721-12160iAE11#..(GLI,XLI)..(GCC,GEN)199704-200109

main47721-12170iAE11#..NZ199710-199810

main47721-12211iAE11#..ARL199808-200109

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003×2iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

*9-1.25PX71-25,SUB

main90119-09004×2iAE11#,EE110..GCC,GEN,NZ199704-199910

*9-1.25PX91-25,MAIN

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12120iAE111,EE110..GL,XL199704-199910

main47721-12160iAE11#..(GLI,XLI)..(GCC,GEN)199704-199910

main47721-12170iAE11#..NZ199710-199810

main47722-12031iAE11#..ARL199808-200109

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12310iEE110..GCC199704-200008

main47730-12400iAE11#..(GLI,XLI)..(GCC,GEN)199704-199910

main47730-12410iAE11#..NZ199710-199810

main47730-12451iAE11#..ARL199808-199910

47731PISTON, FRONT DISC BRAKE

main47731-12150×2iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

main47731-12180×2iAE11#..ARL199808-200109

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×2iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

main90522-64003×2iAE11#..ARL199808-200109

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12310iAE111,EE110..GL,XL199704-199910

main47750-12400iAE11#..(GLI,XLI)..(GCC,GEN)199704-200109

main47750-12410iAE11#..NZ199710-199810

main47750-12451iAE11#..ARL199808-200109

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030×2iAE11#,EE110..GCC,GEN,NZ199704-199910

main47769-50010×2iAE11#..ARL199808-200109

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050×2iAE11#..NZ199804-199810

main47771-32010×2iAE11#,EE110199704-199804

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-20080×4iAE11#..ARL199808-200109

sub47775-30070

main47775-32010×8iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010×2iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134×6iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

23 parts on this diagram · 2 diagrams in section
