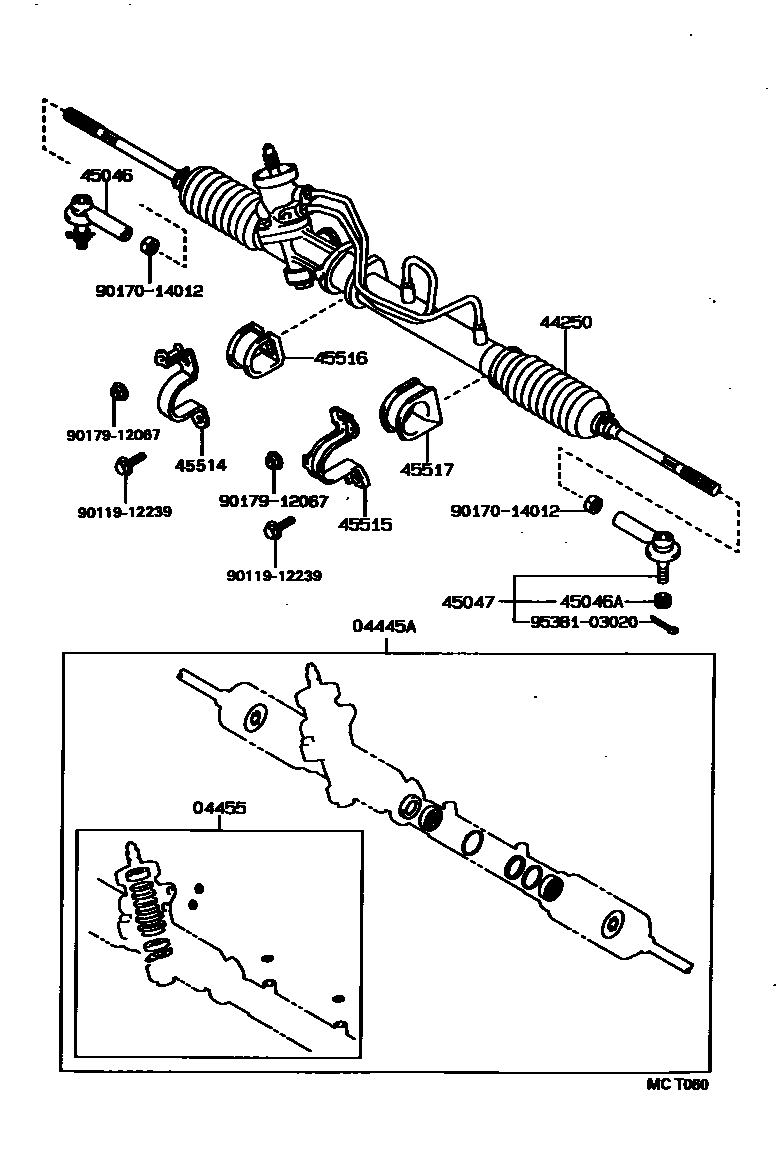

FRONT STEERING GEAR & LINK

0001 1POWER STEERING,KOYO 0002 1POWER STEERING,KOYO 0003 1POWER STEERING,TOYOTA 0004 1POWER STEERING,TOYOTA 0005 1MANUAL STEERING

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-12150iAE112,EE110;AE111..GL,XLI;AE111..GLI..NZ199704-199910

TOYOTA GEAR BOX

main04445-12150iAE11#,EE110..ARL,GCC199704-200109

main04445-12160iAE111..GLI..GEN199704-199910

KOYO GEAR BOX

main04445-12160iAE111..GEN199910-200109

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-12090iAE111..GLI..GEN199704-199910

TOYOTA GEAR BOX

main04455-12090iAE11#,EE110..ARL,GCC199704-200109

main04455-12210iAE111..GLI..GEN199704-199910

KOYO GEAR BOX

main04455-12210iAE111..GEN199910-200109

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-12530iAE111..GLI..GEN199704-200109

KOYO GEAR ASSY

main44250-12540iAE11#..ARL,NZ199710-200007

main44250-12541iAE11#..ARL200007-200109

main44250-12560iAE11#,EE110..LHD199704-200007

main44250-12561iAE112,EE110..GCC200007-200008

main44250-12620iEE110..GEN199704-200109

TOYOTA GEAR ASSY

45046END SUB-ASSY, TIE ROD, RH

main45046-09130iEE110199910-200008

(L)

main45046-29305iAE11#,EE110199704-200109

main45046-29305iEE110199910-200008

(J)

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAE11#,EE110199704-200109

45047END SUB-ASSY, TIE ROD, LH

main45046-09130iEE110199910-200008

(L)

main45046-29305iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

main45046-29305iEE110199910-200008

(J)

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12090iAE11#..ARL,NZ199710-200109

main45514-12090iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

W(POWER STEERING)

main45514-12110iEE110..GCC199704-200008

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-12170iAE11#..RHD..(ARL,GEN)199704-200109

main45515-12170iEE110199910-200008

W(MANUAL STEERING)

main45515-12180iAE11#,EE110..LHD199704-200008

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-12060iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12111iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

9011912239

main90119-12239

9017014012

main90170-14012

9017912067

main90179-12067

9538103020

main95381-03020

14 parts on this diagram · 5 diagrams in section
