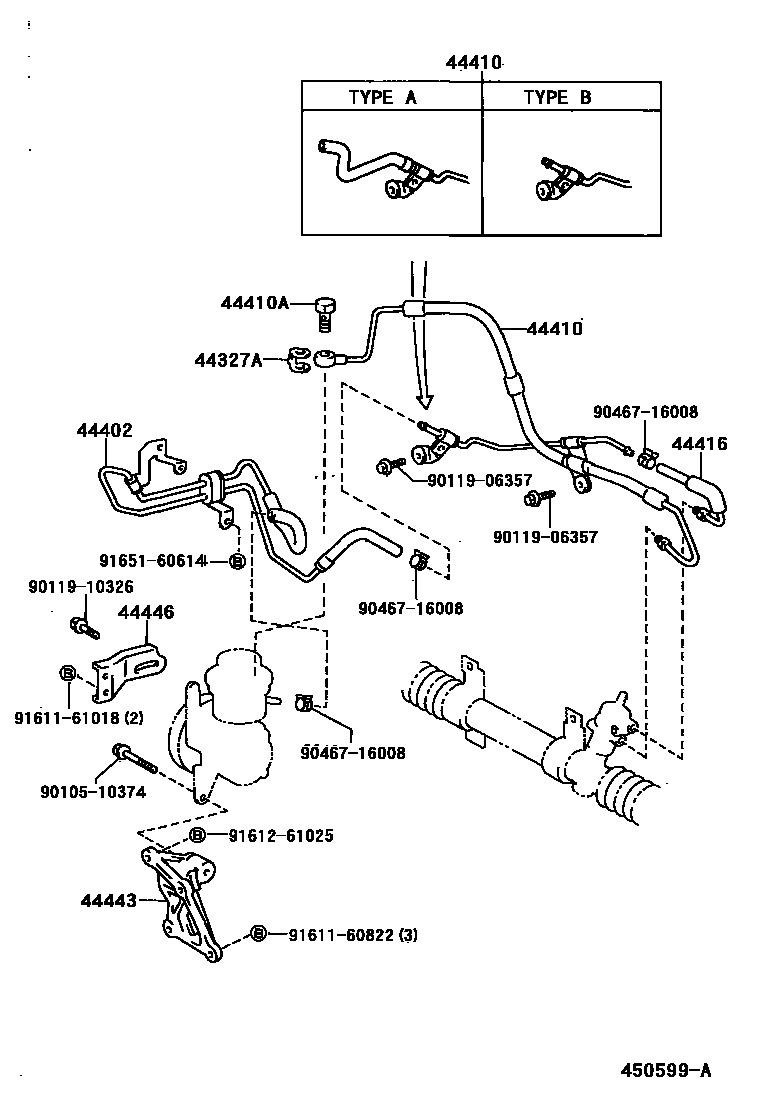

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-12140iAE111..GL199704-199910

main44402-12201iAE112..GCC199704-199910

main44402-12210iAE11#..ARL,NZ199710-199910

44410TUBE ASSY, PRESSURE FEED

main44040-12121iEE110..GCC199704-199910

main44040-12182iEE110..GEN199704-199910

main44410-12391iAE11#..ARL199808-200109

main44410-12451iAE111..GLI..GEN199704-200109

main44410-12481iAE111..GLI..GEN199704-199812

PHYSICALLY HADICAPPED

main44410-12492iAE112..GCC199704-199912

main44410-12493iAE112..GCC199912-200008

main44410-12500iAE111..GLI199812-199910

PHYSICALLY HADICAPPED

main44410-12512iAE111..GL199704-199910

TYPE A:REFER TO ILLUSTRATION

main44410-12540iAE111..GL199704-199910

TYPE B:REFER TO ILLUSTRATION

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16012iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44406-12160iAE112,EE110..GCC199704-199912

main44406-12171iAE111..GLI..GEN199704-199910

main44406-12181iAE111..GLI..GEN199704-199910

PHYSICALLY HADICAPPED

main44406-12220iAE112,EE110..GCC199912-200008

main44416-12240iAE11#..ARL199808-200109

44443BRACKET, PUMP

main44443-12070iEE110199704-199910

main44443-12100iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

44446STRUT, ADJUSTING

main44446-12050iEE110..GCC199704-200008

main44446-12060iAE111199704-199910

main44446-12090iAE112199704-199910

9010510374

main90105-10374

9011906357

main90119-06357

9011910326

main90119-10326

9046716008

main90467-16008

9161160822

main91611-60822

9161161018

main91611-61018

9161261025

main91612-61025

9165160614

main91651-60614

15 parts on this diagram · 5 diagrams in section
