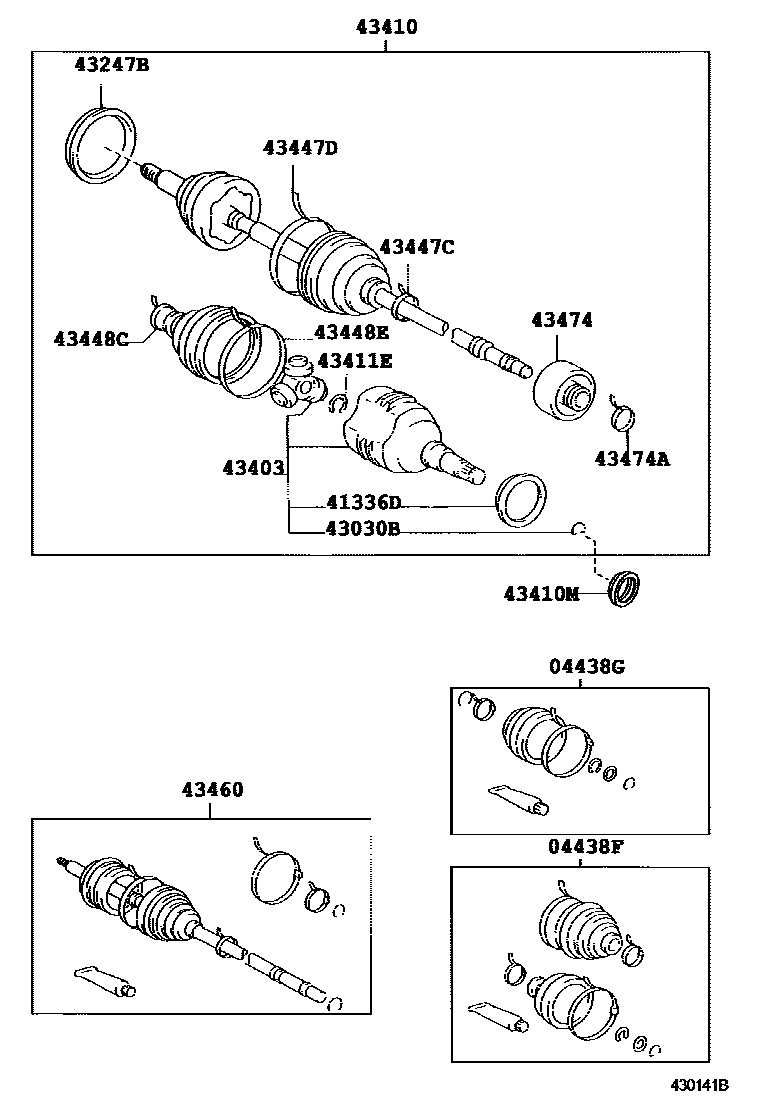

FRONT DRIVE SHAFT

0001 1RH 0003 1RH 0004 1LH 0006 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-12172iAE111,EE110199704-200109

sub04428-12270

main04438-12610iAE112200104-200109

sub04428-12260

main04438-20110iAE112199704-199804

sub04438-20131

main04438-20131iAE112199804-199901

sub04438-20134

main04438-20132iAE112199901-200104

sub04438-20133

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12410iAE11#,EE110199704-200109

sub04438-12840

main04438-20121iAE112..ARL,GCC199804-200104

sub04438-12470

main04438-52051iAE112200104-200109

sub04438-32231

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iAE11#,EE110199704-200109

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90521-26004iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iAE112;AE111..RHD..(ARL,GEN)199704-200109

W(ABS)

main43247-33010iAE111,EE110;AE112..ARL,GCC199704-200109

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-12040iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-20420iAE112199704-199709

sub43410-20421

sub90178-22001

main43410-20421iAE112..ARL,GCC199709-199901

sub43410-20422

main43410-20422iAE112199901-200104

sub43410-20423

main43410-20423iAE112200104-200109

main43410-20440iAE111,EE110199704-199709

sub43410-20441

sub90178-22001

main43410-20441iAE111,EE110199709-200109

sub43410-20442

main43410-20450iAE111..GLI199704-199709

W(ABS)

sub43410-20451

sub90178-22001

main43410-20451iAE111..RHD..(ARL,GEN)199709-200109

W(ABS)

sub43410-20452

main43410-20460iAE112199704-199709

W(ABS)

sub43410-20461

sub90178-22001

main43410-20461iAE112199709-199901

W(ABS)

sub43410-20462

main43410-20462iAE112199901-200104

W(ABS)

sub43410-20463

main43410-20463iAE112200104-200109

W(ABS)

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34012iAE11#..4FC..(GCC,GEN)199704-199802

main90311-34016iAE111..RHD..5F..(ARL,GEN)199704-200008

main90311-34023iAE11#..4FC199802-200109

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22005iAE11#,EE110199704-200109

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12150iAE112200104-200109

ID=29.6

sub42345-12190

main42345-16010iEE110..GCC;AE111..RHD..(ARL,GEN)199704-200109

ID=32.5

main42345-16030iAE112199704-199901

ID=35.45

main42345-20100iAE112199910-200104

ID=31.1

main90949-01078iEE110..GCC;AE111..RHD..(ARL,GEN)199704-199910

ID=32.7

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12140iAE112200104-200109

ID=92.0

sub42345-12180

main42345-16020iEE110..GCC;AE111..RHD..(ARL,GEN)199704-200109

ID=88.0

main42345-16040iAE112..ARL,GCC199704-199901

ID=91.9

main42345-20120iAE112199901-200104

ID=90.6

main90949-01080iEE110..GCC;AE111..RHD..(ARL,GEN)199704-200109

ID=88.2

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078iAE11#,EE110199704-199910

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01076iAE11#,EE110199704-200109

sub42345-12160

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-29098iAE111,EE110199704-199709

sub43460-29099

sub90178-22001

main43460-29099iEE110..GCC;AE111..RHD..(ARL,GEN)199709-200109

sub43460-80094

main43460-29117iAE112199704-199709

sub43460-29118

sub90178-22001

main43460-29118iAE112..GCC199709-199804

sub43460-29119

main43460-29119iAE112..ARL,GCC199804-199901

sub43460-29121

main43460-29120iAE112199804-199901

W(ABS)

sub43460-29200

main43460-29121iAE112199901-200104

W(ABS)

sub43460-29122

main43460-29122iAE112200104-200109

W(ABS)

main43460-29167iAE111..GLI199704-199709

W(ABS)

sub43460-29168

sub90178-22001

main43460-29168iAE111..RHD..(ARL,GEN)199709-200109

W(ABS)

sub43460-80095

main43460-29198iAE112199704-199709

W(ABS)

sub43460-29199

sub90178-22001

main43460-29199iAE112199709-199804

W(ABS)

sub43460-29120

main43460-29200iAE112199901-200104

sub43460-29201

main43460-29201iAE112200104-200109

43474DAMPER, DRIVE SHAFT

main43474-12040iAE111,EE110199704-200109

sub43474-12130

main43474-20050iAE112199704-200109

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iAE111,EE110199910-200109

main42345-16030iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-199910

main90949-01947iAE112199910-200109

16 parts on this diagram · 4 diagrams in section
