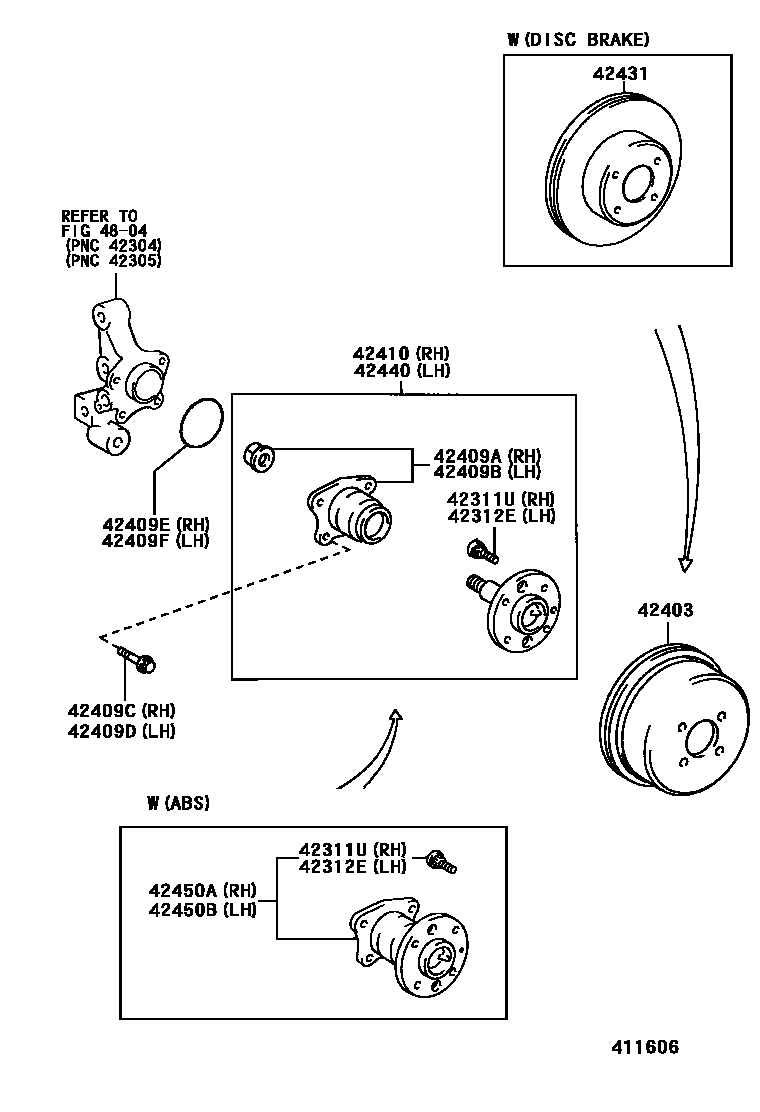

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02047×4iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02047×4iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12180×2iAE11#..ARL199808-200109

main42431-20250×2iAE11#,EE110..GCC,GEN,NZ199704-199910

42409ABEARING SUB-ASSY, REAR AXLE, RH

main42409-19015iAE11#,EE110199704-199910

42409BBEARING SUB-ASSY, REAR AXLE, LH

main42409-19015iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

42409CBOLT (FOR REAR AXLE BEARING RH)

main90105-10404×4iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

42409DBOLT (FOR REAR AXLE BEARING LH)

main90105-10404×4iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

42409ERING, O (FOR REAR AXLE BEARING RH)

main90301-61002iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

42409FRING, O (FOR REAR AXLE BEARING LH)

main90301-61002iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-12090iAE112,EE110..GCC;AE111..RHD..(ARL,GEN); AE112..GCC;AE111,EE110199704-199910

42431DISC, REAR

main42431-12150×2iAE112..ARL199808-200109

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-12090iAE112,EE110..GCC;AE111..RHD..(ARL,GEN); AE112..GCC;AE111,EE110199704-199910

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-12030iAE112..GCC;AE111..RHD..(ARL,GEN)199704-200109

main42450-12040iAE112..ARL199808-199910

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-12030iAE112..GCC;AE111..RHD..(ARL,GEN)199704-200109

main42450-12040iAE112..ARL199808-199910

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

15 parts on this diagram · 1 diagram in section
