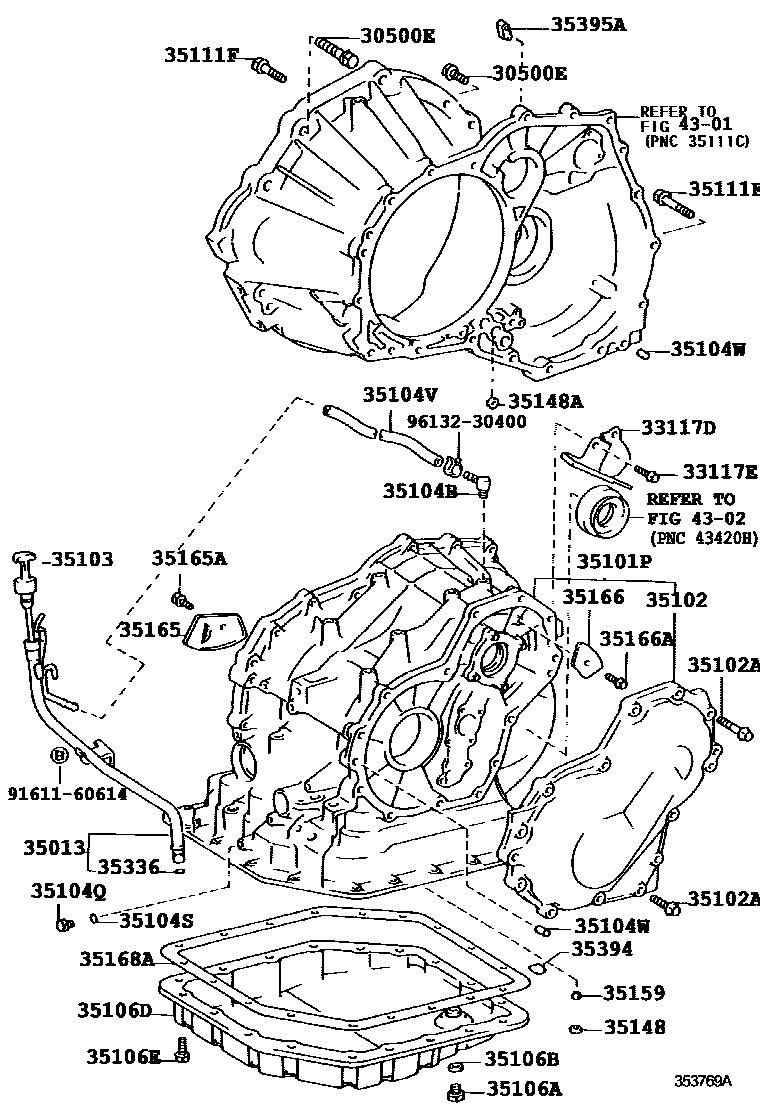

TRANSMISSION CASE & OIL PAN (ATM)

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10077iAE11#..4FC..(ARL,GCC,GEN)199704-200109

*10-1.25PX43-26

main90119-12168iAE11#..4FC199704-199910

*12-1.25PX55-30

main91612-41025iAE112..4FC; AE112..4FC..GCC199704-199808

*10-1.25PX25-25

main91619-61245×2iAE11#..4FC..(ARL,GCC,GEN)199704-200109

*12-1.25PX45-30

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iAE11#..4FC..(ARL,GCC,GEN)199704-200109

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iAE11#..4FC..(ARL,GCC,GEN)199704-200109

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12391iAE11#..4FC..(ARL,GCC,GEN)199704-200109

35101PCASE & COVER SUB-ASSY, TRANSAXLE

main35101-12023iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-20050iAE11#..4FC..(ARL,GCC,GEN)199704-200109

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08065×10iAE11#..4FC..(ARL,GCC,GEN)199704-200008

*8-1.25PX45-35

main90105-08068×3iAE11#..4FC200008-200109

*8-1.25PX35-30

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-12271iAE11#..4FC..(ARL,GCC,GEN)199704-200109

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03101iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35104VHOSE (FOR BREATHER PLUG)

main90447-11039iAE11#..4FC200008-200109

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10021×2iAE11#..4FC199704-199910

HOUSING SIDE

main90250-11001×2iAE11#..4FC200008-200109

REAR COVER SIDE

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iAE11#..4FC199704-199910

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iAE11#..4FC199704-199910

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-12070iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08065×10iAE11#..4FC199704-199910

*8-1.25PX45-35

main90105-08066iAE11#..4FC..(ARL,GCC,GEN)199704-200008

*8-1.25PX72-30

main90105-08068×5iAE11#..4FC200008-200109

*8-1.25PX35-30

main90105-08071×2iAE11#..4FC..(ARL,GCC,GEN)199704-200008

*8-1.25PX30-25

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010×3iAE11#..4FC199704-199910

35159GASKET, BRAKE DRUM

main35159-20010iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35165PLATE, TRANSMISSION CASE, NO.1

main35165-12010iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35166PLATE, TRANSMISSION CASE, NO.3

main35166-12010iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

main90105-06049iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAE11#..4FC..(ARL,GCC,GEN)199704-200109

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iAE11#..4FC..(ARL,GCC,GEN)199704-200008

35395ASTRAINER, GOVERNOR OIL

main35395-12020iAE11#..4FC..(ARL,GCC,GEN)199704-200008

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

9161160614

main91611-60614

9613230400

main96132-30400

33 parts on this diagram · 1 diagram in section
