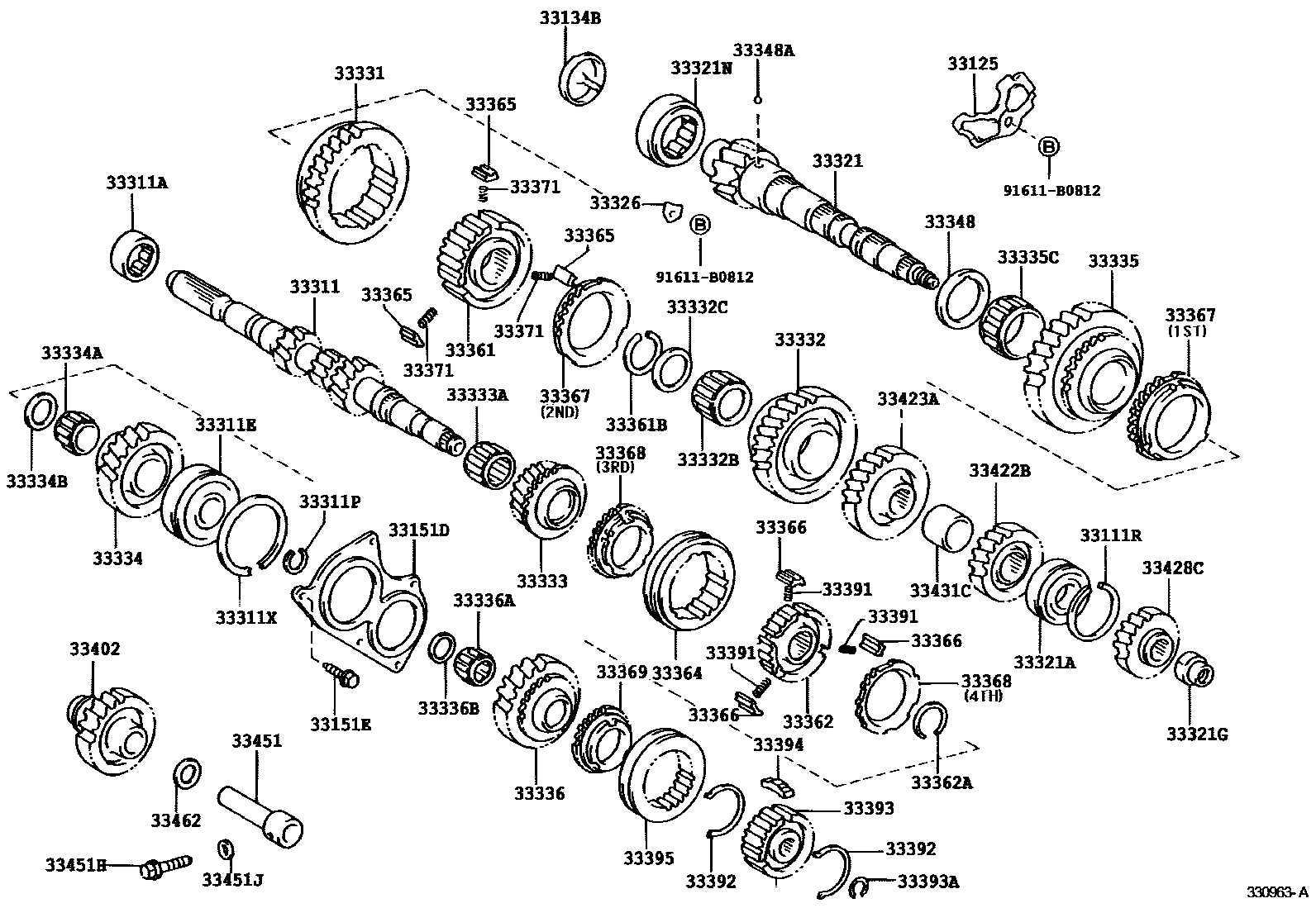

TRANSMISSION GEAR (MTM)

0001 1C52 0002 1C150

33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)

main90520-57002iAE11#,EE110..5F199704-200109

33125RECEIVER, MANUAL TRANSAXLE CASE

main33125-12011iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33134BCOVER, OUTPUT SHAFT(MTM)

main33134-12022iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33151DRETAINER, BEARING, REAR(MTM)

main33151-12021iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

sub33151-52010

33151EBOLT(FOR REAR BEARING RETAINER)

main90119-08944iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33311SHAFT, INPUT

main33311-10061iEE110..GCC199704-200008

sub33311-10062

main33311-12180iAE11#..5F..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

sub33311-12181

33311ABEARING (FOR INPUT SHAFT FRONT)

main90365-25021iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)

main90363-25035iEE110199704-200008

main90363-25048iAE112..5F199704-200109

sub90363-25091

main90363-25068iAE111..RHD..5F..(ARL,GEN)199704-200109

sub90363-25092

33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)

main90520-22006iAE11#,EE110..5F199704-200109

T=2.29-2.34,MARK A

main90520-22007iAE11#,EE110..5F199704-200109

T=2.35-2.40,MARK B

main90520-22008iAE11#,EE110..5F199704-200109

T=2.41-2.46,MARK C

main90520-22009iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

T=2.47-2.52,MARK D

main90520-22010iAE11#,EE110..5F199704-200109

T=2.53-2.58,MARK E

main90520-22011iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

T=2.59-2.64,MARK F

33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)

main90520-64002iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33321SHAFT, OUTPUT

main33321-10071iEE110..GCC199704-200008

sub33321-12250

main33321-10081iEE110..GEN199704-199910

AXLE CODE=-05A

sub33321-12260

main33321-12071iAE11#..5F..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

sub33321-52100

main33321-17011iAE111..GL199704-199910

AXLE CODE=-05A

sub33321-52110

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90363-25034iEE110..GCC199704-200008

main90363-25061iAE112..5F199704-199912

sub90903-63010

main90363-25067iAE11#..5F199704-200109

sub90903-63010

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main90179-18005iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33321NBEARING (FOR OUTPUT SHAFT FRONT)

main90365-33005iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33326PLATE, BEARING LOCK

main33326-12010iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33331GEAR, REVERSE

main33331-12022iEE110199704-199907

main33331-12051iAE11#..5F..(GLI,XLI)..(ARL,GCC,GEN)199704-199907

main33331-12060iEE110..GCC199907-200008

main33331-20070iAE11#..5F..(GLI,GT,XLI)199907-200109

sub33331-12060

33332GEAR, 2ND

main33033-10030iEE110..GCC199704-200008

sub33033-12080

main33033-12060iAE11#..5F..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

sub33033-12090

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-32014iAE11#..5F..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

main90364-32017iEE110..GCC199704-200008

33332CSPACER (FOR 2ND GEAR BEARING)

main90560-32008iAE11#..5F..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

33333GEAR, 3RD

main33034-10050iEE110..GCC199704-200008

sub33034-10051

sub33368-12150

sub33368-12160

sub33368-12170

sub33368-12220

sub33368-12230

sub33368-12240

sub33368-12250

sub33368-12260

sub33368-12270

sub33368-12280

sub33368-12290

main33034-12110iAE11#..5F199704-200109

sub33034-12111

sub33368-12150

sub33368-12160

sub33368-12170

sub33368-12220

sub33368-12230

sub33368-12240

sub33368-12250

sub33368-12260

sub33368-12270

sub33368-12280

sub33368-12290

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-31002iAE11#..5F..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

main90364-31004iEE110..GCC199704-200008

33334GEAR, 4TH

main33035-12090iAE11#,EE110..5F199704-199907

sub33035-12091

main33035-20080iAE111..RHD..5F;AE112,EE110..5F..(ARL,GCC)199907-200005

sub33035-20160

main33035-20120iAE11#..5F199908-200005

sub33035-20160

main33035-20160iAE11#,EE110..5F200005-200109

sub33035-20161

sub33368-12180

sub33368-12190

33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)

main90364-29002iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33334BSPACER (FOR 4TH GEAR BEARING)

main90560-29001iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33335GEAR, 1ST

main33032-10040iEE110..GCC199704-200008

sub33032-12080

main33032-12070iAE11#..5F..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

sub33032-12100

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-38007iAE11#..5F..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

main90364-38008iEE110..GCC199704-200008

33336GEAR, 5TH

main33036-12051iAE11#..5F..(GLI,XLI)..(ARL,GCC,GEN)199704-199907

sub33036-12170

main33036-12071iEE110199704-199907

sub33036-12170

main33036-12100iEE110199907-200008

sub33036-20070

main33036-20070iAE11#..5F199907-200109

sub33036-12130

33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)

main90364-24006iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

sub90364-24005

33336BSPACER (FOR 5TH GEAR BEARING)

main90560-25006iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33348WASHER, 1ST GEAR THRUST

main33348-12010iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)

main90360-05012iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-12030iEE110..GCC199704-200008

main33361-12060iAE11#..5F199704-200109

33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)

main90520-29018iAE11#,EE110..5F199704-200109

T=2.50-2.55,MARK A

main90520-29019iAE11#,EE110..5F199704-200109

T=2.56-2.61,MARK B

main90520-29020iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

T=2.62-2.67,MARK C

main90520-29021iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

T=2.68-2.73,MARK D

main90520-29022iAE11#,EE110..5F199704-200109

T=2.74-2.79,MARK E

main90520-29023iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

T=2.80-2.85,MARK F

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-12020iEE110..GCC199704-200008

main33362-12040iAE11#..5F199704-200109

sub33362-12050

33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)

main90520-27046iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

T=2.30-2.35,MARK 0

main90520-27047iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

T=2.36-2.41,MARK 1

main90520-27048iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

T=2.42-2.47,MARK 2

main90520-27049iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

T=2.48-2.53,MARK 3

main90520-27050iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

T=2.54-2.59,MARK 4

main90520-27051iAE11#,EE110..5F199704-200109

T=2.60-2.65,MARK 5

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-12012iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-199907

main33364-20030iAE11#..5F199907-200008

main33364-20050iAE11#..5F..(GLI,GT,XLI)199908-200106

sub33364-20051

main33364-20051iAE11#..5F200106-200109

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-12021iEE110199704-200008

main33365-12051iAE11#..5F199704-200109

sub33365-52030

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-12020iEE110199704-200008

main33366-12041iAE11#..5F199704-200109

sub33366-52030

33367RING, SYNCHRONIZER, NO.1

main33367-12050iAE11#..5F199704-199907

1ST GEAR SIDE

main33367-12061iAE11#..5F199704-199907

2ND GEAR SIDE

main33367-12070iEE110..GCC199704-199907

1ST GEAR SIDE

main33367-12081iEE110199704-199907

2ND GEAR SIDE

main33367-12140iEE110199907-200008

1ST GEAR SIDE

main33367-12150iEE110..GCC199907-200008

2ND GEAR SIDE

main33367-20070iAE11#..5F..(GLI,GT,XLI)199907-200109

1ST GEAR,TYPE 1(*95)

main33367-20080iAE11#..5F199907-200109

2ND GEAR,TYPE 2(*94)

33368RING, SYNCHRONIZER, NO.2

main33368-12050iAE11#..5F..(GLI,XLI)..(ARL,GCC,GEN)199704-199907

4TH GEAR SIDE

main33368-12060iEE110199704-199907

4TH GEAR SIDE

main33368-12090iAE11#..5F..(GLI,XLI)..(ARL,GCC,GEN)199704-199907

3RD GEAR SIDE

main33368-12100iEE110..GCC199704-199907

3RD GEAR SIDE

main33368-12120iAE11#..5F..(GLI,GT,XLI)199907-200103

3RD GEAR TYPE 1(*95)

sub33368-12121

main33368-12121iAE11#..5F200103-200109

3RD GEAR TYPE 1(*95)

main33368-12130iEE110199907-200008

3RD GEAR SIDE

main33368-12140iEE110..GCC199907-200008

4TH GEAR TYPE 2(*94)

main33368-20070iAE11#..5F199907-200011

4TH GEAR SIDE

sub33368-20071

main33368-20071iAE11#..5F200011-200109

4TH GEAR SIDE

33369RING, SYNCHRONIZER, NO.3

main33369-12030iAE11#,EE110..5F199704-199907

main33369-20040iAE11#,EE110..5F199907-200109

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-12020iEE110..GCC199704-200008

main33371-12040iAE11#..5F..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

sub33371-52030

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33391-12020iEE110..GCC199704-200008

main33391-12040iAE11#..5F199704-200109

sub33391-52020

33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3

main33391-12030iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

33393HUB, TRANSMISSION CLUTCH, NO.3

main33393-12030iAE11#..5F..(GLI,XLI)..(GCC,GEN)199704-199711

sub33393-12031

main33393-12031iAE11#..5F199711-200109

sub33393-12060

main33393-12040iEE110199704-200008

33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)

main90520-18002iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

T=2.25-2.30,MARK A

main90520-18003iAE11#,EE110..5F199704-200109

T=2.31-2.36,MARK B

main90520-18004iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

T=2.37-2.42,MARK C

main90520-18006iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

T=2.43-2.48,MARK D

main90520-18007iAE11#,EE110..5F199704-200109

T=2.49-2.54,MARK E

main90520-18008iAE11#,EE110..5F199704-200109

T=2.55-2.60,MARK F

main90520-18009iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

T=2.61-2.66,MARK G

33394KEY, SYNCHROMESH SHIFTING, NO.3

main33394-12011iAE11#,EE110..5F199704-200109

sub33394-52020

33395SLEEVE, TRANSMISSION HUB, NO.3

main33395-12011iAE11#,EE110..5F199704-199907

main33395-20040iAE11#,EE110..5F199907-200109

sub33395-20041

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-10030iEE110199704-200008

sub33402-10031

main33402-12041iAE11#..5F..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

sub33402-12042

33422BGEAR, 4TH DRIVEN

main33422-12050iAE11#,EE110..5F199704-200109

sub33422-12090

33423AGEAR, 3RD DRIVEN

main33423-10011iEE110199704-200008

main33423-12010iAE11#..5F199704-200109

33428CGEAR, 5TH DRIVEN

main33428-12050iAE11#..5F..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

sub33428-12110

main33428-12070iEE110..GCC199704-200008

sub33428-12050

33431CSPACER, OUTPUT GEAR

main33431-12010iAE11#,EE110..5F199704-200109

33451SHAFT, REVERSE IDLER GEAR

main33451-10021iEE110..GCC199704-200008

main33451-12021iAE11#..5F..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)

main90109-08097iAE11#,EE110..5F199704-200109

33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)

main90430-08010iAE11#,EE110..5F199704-200109

33462WASHER, REVERSE IDLER THRUST

main33462-12010iAE11#,EE110..5F199704-200109

91611B0812

main91611-B0812

58 parts on this diagram · 2 diagrams in section
