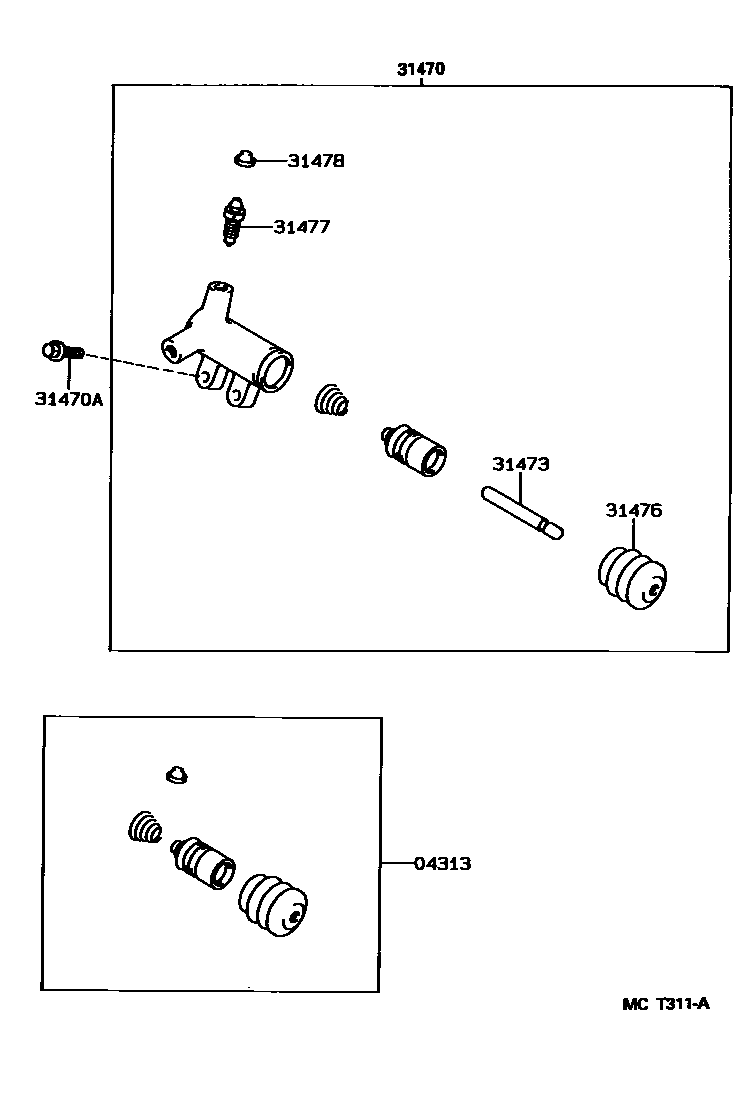

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iEE110..GCC199711-200008

main04313-17020iEE110..GCC199704-199711

main04313-22030iAE11#..5F199704-200109

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-10040iEE110..GCC199704-200008

main31470-12093iAE11#..5F199704-200109

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iEE110199704-200008

main31473-32010iAE11#..5F..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAE11#,EE110..5F199704-200109

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iAE111..RHD..5F..(ARL,GEN);AE112,EE110..5F..(ARL,GCC)199704-200109

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-01030iAE11#..5F199704-200109

(L)

main31478-30010iAE11#..5F199704-200109

(J)

main31478-30010iEE110..GCC199704-200008

7 parts on this diagram · 1 diagram in section
