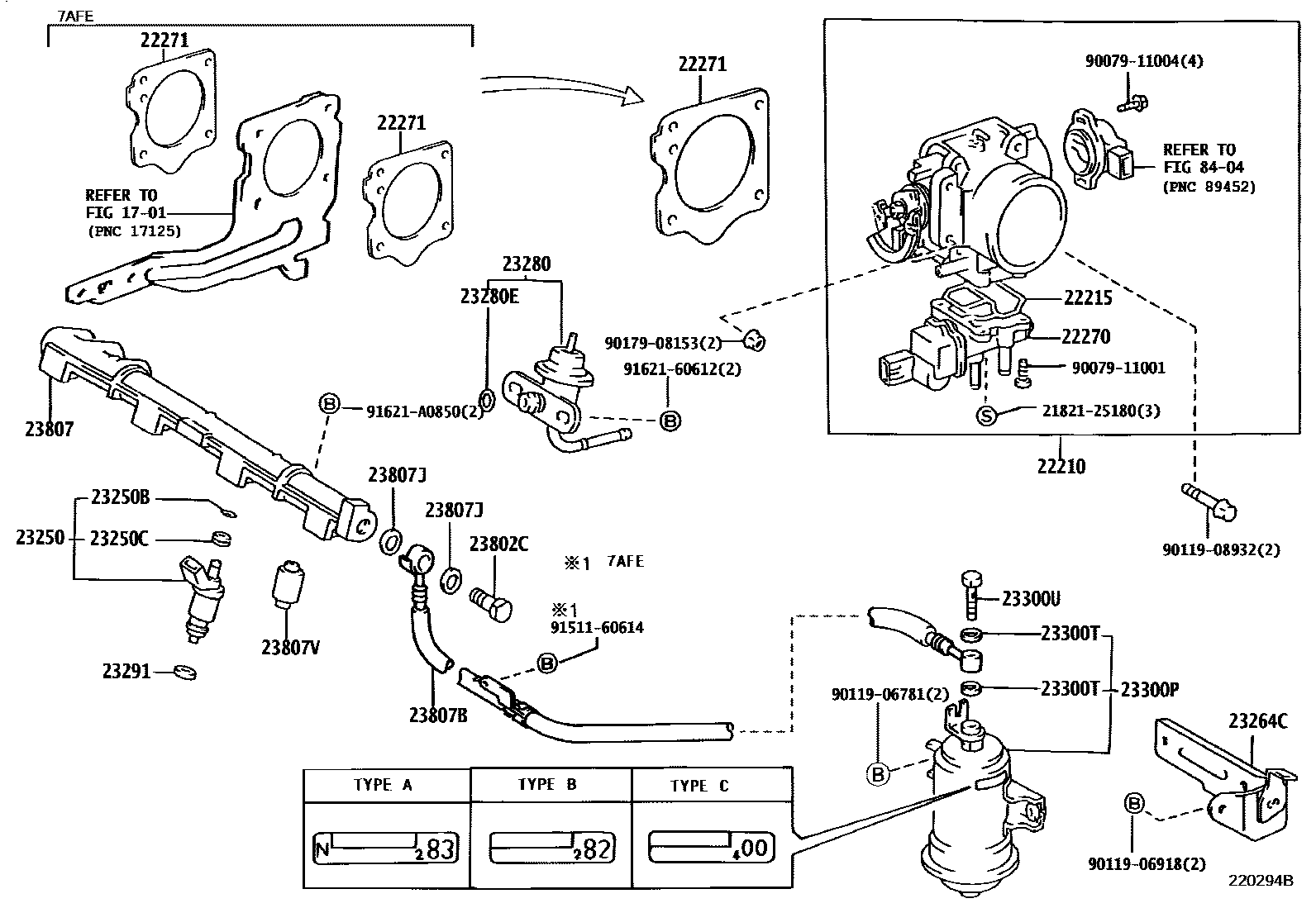

FUEL INJECTION SYSTEM

0001 1 0002 1

1701

22210BODY ASSY, THROTTLE

main22210-16890i7AFE..AE112..ARL199710-200109

main22210-1A020i4AFE..AE111..GEN199704-200109

MARK 1A020

main22210-1A060i4AFE..AE111..ARL199710-199910

main22210-1A060i4AFE..AE111199704-200109

MARK 1A060

main22210-1A090i7AFE..AE112..GCC199704-200008

22215GASKET, THROTTLE BODY COVER

main22215-74400i4AFE,7AFE..AE11#199704-200109

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-15010i7AFE..AE112..GCC199704-200008

main22270-16060i7AFE..AE112..RHD199710-200109

main22270-16090i4AFE..AE111199704-200109

22271GASKET, THROTTLE BODY

main22271-15020i7AFE..AE112..ARL,GCC199704-200109

23250INJECTOR ASSY, FUEL

main23209-15040i4AFE..AE111199704-200109

main23209-16160i7AFE..AE112199704-200109

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-199812

main90301-07024i4AFE,7AFE..AE11#199812-200109

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

23264CBRACKET, FUEL FILTER

main23264-16060i4AFE..AE111..GEN199704-200109

23280REGULATOR ASSY, FUEL PRESSURE

main23280-15020i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-199812

main90301-07024i4AFE,7AFE..AE11#199812-200109

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

23300PFILTER, FUEL(FOR EFI)

main23300-19285i4AFE,7AFE..AE11#..GCC,GEN199704-200109

TYPE A:REFER TO ILLUSTRATION

main23300-19295i4AFE,7AFE..AE11#..RHD199704-199910

TYPE B:REFER TO ILLUSTRATION

main23300-19515i4AFE,7AFE..AE11#..ARL199704-200109

TYPE C:REFER TO ILLUSTRATION

23300TGASKET(FOR FUEL FILTER)

main90430-12026i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-12097i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-15050i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

sub23814-15051

23807BHOSE, FUEL DELIVERY PIPE

main23271-15240i4AFE..AE111..ARL,GEN199704-200109

main23271-16200i7AFE..AE112..ARL,GCC199704-200109

23807JGASKET, PIPE FUEL DELIVARY INLET

main90430-12026i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007911001

main90079-11001

9007911004

main90079-11004

9011906781

main90119-06781

9011906918

main90119-06918

9011908932

main90119-08932

9017908153

main90179-08153

9151160614

main91511-60614

9162160612

main91621-60612

91621A0850

main91621-A0850

31 parts on this diagram · 2 diagrams in section
