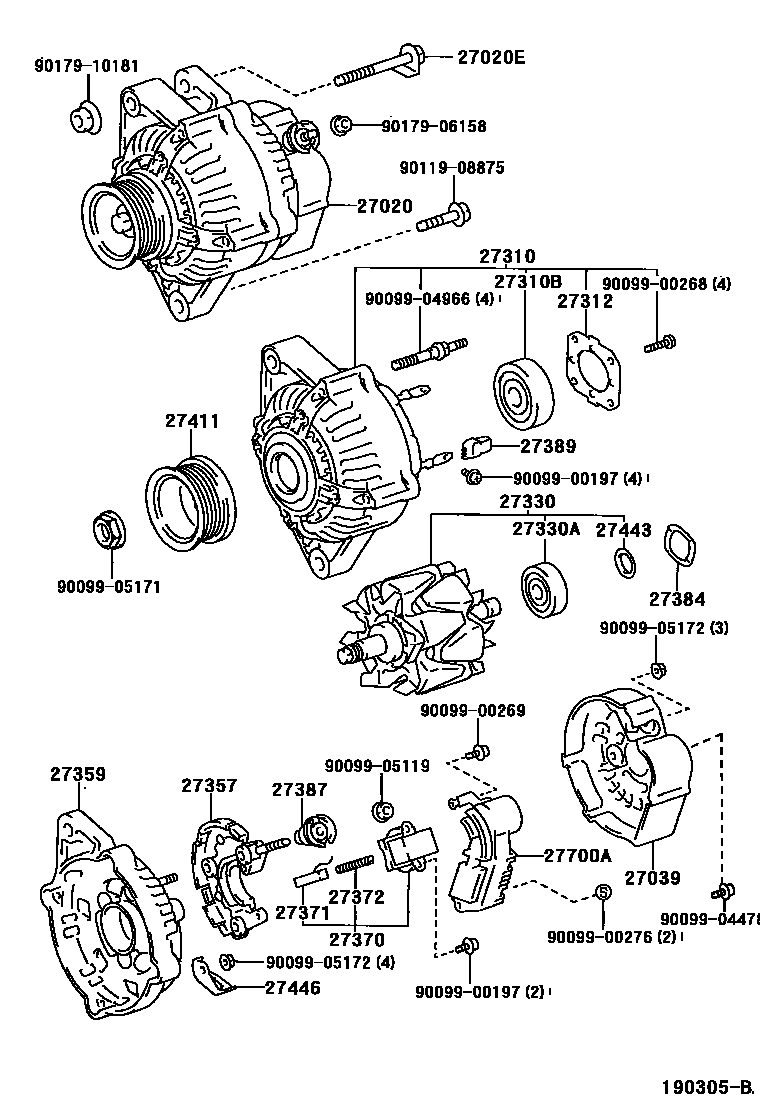

ALTERNATOR

0001 112V 70A 0002 112V 70A 0003 112V 70A 0004 112V 50A,60A

27020ALTERNATOR ASSY

main27060-11250i2E..EE110..GCC199704-200008

12V 60A

main27060-11260i2E..EE110..GEN199704-199910

12V 50A

main27060-15130i4AFE,7AFE..AE11#..5F..(GCC,GEN)199704-200109

12V 70A

sub27060-15080

main27060-16420i4AF..AE111199704-199910

12V 70A

main27060-16460i4AFE,7AFE..AE11#..4FC..(GCC,GEN)199704-200109

12V 80A

sub27060-16430

27020EBOLT(FOR ALTERNATOR)

main90105-10336i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

27039COVER, ALTERNATOR REAR END

main27039-11180i2E..EE110..GCC199704-200008

main27039-11190i2E..EE110..GEN199704-199801

main27039-16380i4AF#,7AFE..AE11#..5F199704-200109

main27039-55080i4AFE,7AFE..AE11#..4FC..(GCC,GEN)199704-200104

sub27039-70470

main27039-70470i4AFE,7AFE..AE11#..4FC200104-200109

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-10090i2E..EE110..GEN199704-199910

main27310-11160i2E..EE110..GCC199704-200008

main27310-15170i4AFE,7AFE..AE11#..5F..(GCC,GEN)199704-200109

main27310-16190i4AF..AE111199704-199910

main27310-16430i4AFE,7AFE..AE11#..4FC199704-200109

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i4AF#,7AFE..AE11#..5F199704-200109

main90099-10192i4AFE,7AFE..AE11#..4FC..(ARL,GCC,GEN)199704-200109

main90099-10198i2E..EE110..GCC199704-200008

sub90099-10229

27312PLATE, RETAINER

main27312-42010i4AFE,7AFE..AE11#..4FC199704-200109

main27312-70200i4AF#,7AFE..AE11#..5F199704-200109

main27312-72120i2E..EE110199704-200008

27330ROTOR ASSY, ALTERNATOR

main27330-11160i2E..EE110..GCC199704-200008

main27330-64570i4AF#,7AFE..AE11#..5F..(ARL,GCC,GEN)199704-200109

main27330-72150i2E..EE110..GEN199704-199910

main27330-76030i4AFE,7AFE..AE11#..4FC199704-200109

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i4AFE,7AFE..AE11#..GCC,GEN199704-200109

main90099-10154i2E..EE110..GCC199704-200008

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-11180i2E..EE110..GCC199704-200008

main27357-16380i4AF#,7AFE..AE11#..5F199704-200109

main27357-55080i4AFE,7AFE..AE11#..4FC..(GCC,GEN)199704-200109

main27357-72150i2E..EE110..GEN199704-199801

27359FRAME, ALTERNATOR RECTIFIER END

main27359-15180i4AFE,7AFE..AE11#..4FC..(ARL,GCC,GEN)199704-200109

main27359-16153i4AF..AE111199704-199910

main27359-16380i4AFE,7AFE..AE11#..5F199704-200109

main27359-72150i2E..EE110..GEN199704-199801

main27359-72151i2E..EE110199704-200008

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i4AF#,7AFE..AE11#..5F199704-200109

main27370-54450i2E..EE110..GEN199704-199801

sub27370-58320

main27370-58320i2E..EE110..GCC199704-200008

main27370-75060i4AFE,7AFE..AE11#..4FC199704-200109

27371BRUSH, ALTERNATOR

main27371-70300i4AFE..AE111..5F..GEN;7AFE,2E..AE112,EE110..5F..GCC199704-200109

27372SPRING, ALTERNATOR BRUSH

main27372-63020i4AFE..AE111..5F..GEN;7AFE,2E..AE112,EE110..5F..GCC199704-200109

sub27372-87501

27384WASHER

main27384-16380i4AFE,7AFE..AE11#..5F..(GCC,GEN)199704-200109

main27384-50030i4AFE,7AFE..AE11#..4FC..(ARL,GCC,GEN)199704-200109

27387INSULATOR, TERMINAL

main27387-10080i2E..EE110199704-199708

main27387-10081i2E..EE110..GCC199708-200008

main27387-42020i4AFE,7AFE..AE11#..4FC199704-199708

main27387-42021i4AFE,7AFE..AE11#..4FC..(GCC,GEN)199708-200109

main27387-70170i4AF#,7AFE..AE11#..5F199704-199709

main27387-70171i4AFE,7AFE..AE11#..5F..(ARL,GCC,GEN)199709-200109

27389INSULATOR, TERMINAL

main27389-42010i4AFE,7AFE..AE11#..4FC199704-200109

main27389-63020i4AFE,7AFE..AE11#..5F..(GCC,GEN)199704-200109

27411PULLEY, ALTERNATOR

main27411-10051i2E..EE110..GEN199704-199910

main27411-11160i2E..EE110..GCC199704-200008

main27411-16180i4AF#,7AFE..AE11#..5F199704-200109

main27411-42030i4AFE,7AFE..AE11#..4FC199704-200109

27443COVER, ALTERNATOR BEARING

main27443-63020i4AF#,7AFE,2E..AE11#,EE110199704-200109

27446CLIP, ALTERNATOR CORD

main27446-15170i4AFE,7AFE..AE11#199704-200109

27700AREGULATOR ASSY, GENERATOR

main27700-11060i2E..EE110..GCC199704-200008

main27700-16030i4AF..AE111199704-199910

sub27700-66040

main27700-74040i4AFE,7AFE..AE11#..GCC,GEN199704-200109

9009900197

main90099-00197

9009900268

main90099-00268

9009900269

main90099-00269

9009900276

main90099-00276

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9011908875

main90119-08875

9017906158

main90179-06158

9017910181

main90179-10181

32 parts on this diagram · 4 diagrams in section
