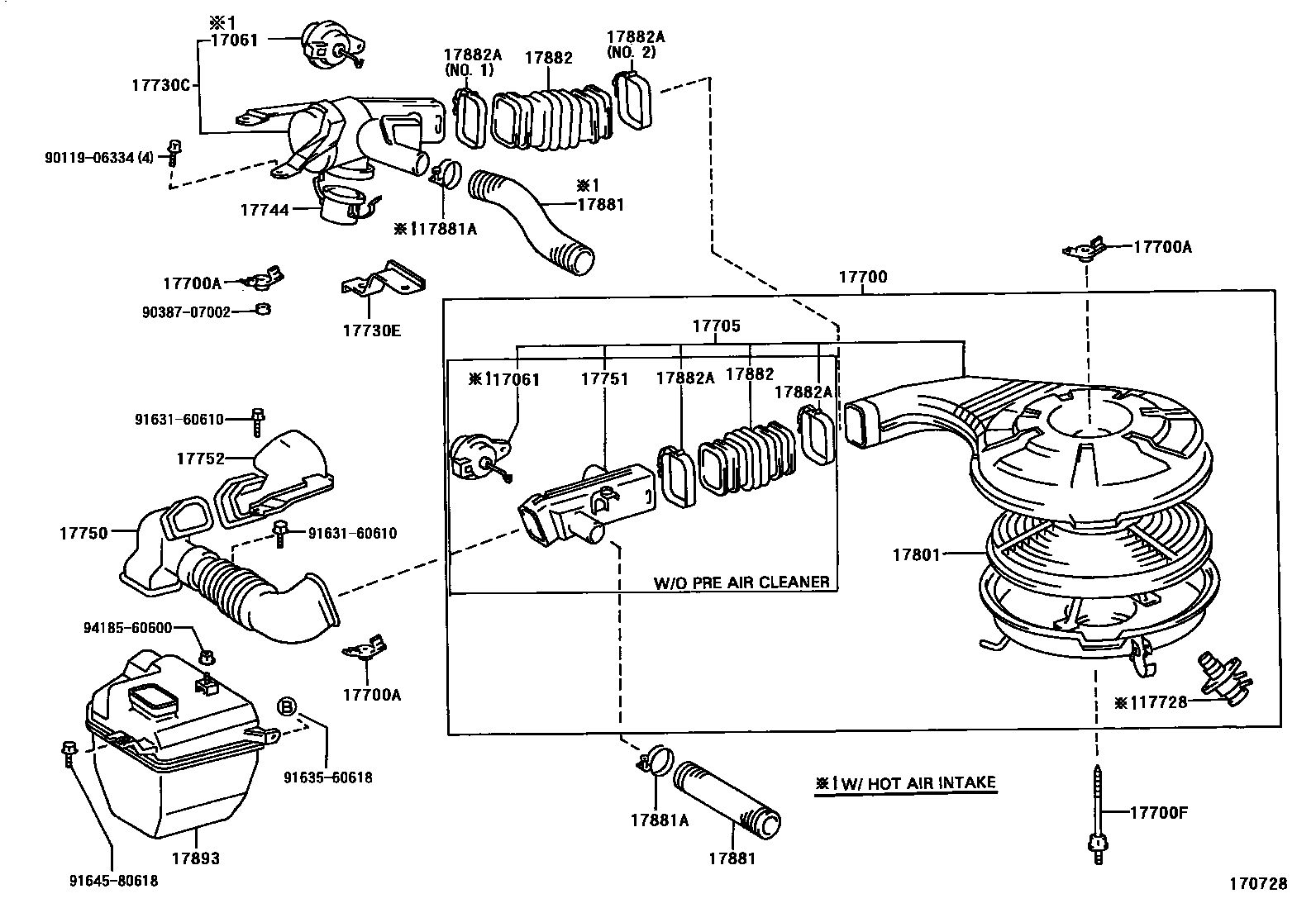

AIR CLEANER
17061DIAPHRAGM SUB-ASSY
W(PRE AIR CLEANER & HOT AIR INTAKE)
W(HOT AIR INTAKE)
17700CLEANER ASSY, AIR
MARK 11780
MARK 11790
MARK 11800
W(HOT AIR INTAKE)
W(PRE AIR CLEANER)
W(PRE AIR CLEANER & HOT AIR INTAKE)
17700ANUT, WING(FOR AIR CLEANER)
17700FBOLT, STUD(FOR AIR CLEANER SETTING)
17705CAP SUB-ASSY, AIR CLEANER
MARK 11780
MARK 11790
MARK 11800
W(HOT AIR INTAKE)
W(PRE AIR CLEANER)
W(PRE AIR CLEANER & HOT AIR INTAKE)
17728VALVE, THERMOSTATIC
17730PRECLEANER ASSY, AIR W/HOSE
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
17730CCASE, PRECLEANER
W(PRE AIR CLEANER)
W(PRE AIR CLEANER & HOT AIR INTAKE)
17730EBRACKET, PRECLEANER, NO.1
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
17744CUP, PRECLEANER
17750COVER ASSY, AIR CLEANER INLET, SEAL
17751INLET, AIR CLEANER, NO.1
W(HOT AIR INTAKE)
17752INLET, AIR CLEANER, NO.2
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(L)
(J)
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
NO.2
NO.1
17882HOSE, AIR CLEANER, NO.2
W(PRE AIR CLEANER)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
W(PRE AIR CLEANER),NO.1
W(PRE AIR CLEANER),NO.2
17893RESONATOR, INTAKE AIR
9011906334
main90119-06334
9038707002
main90387-07002
9163160610
main91631-60610
9163560618
main91635-60618
9164580618
main91645-80618
9418560600
main94185-60600
25 parts on this diagram · 6 diagrams in section
