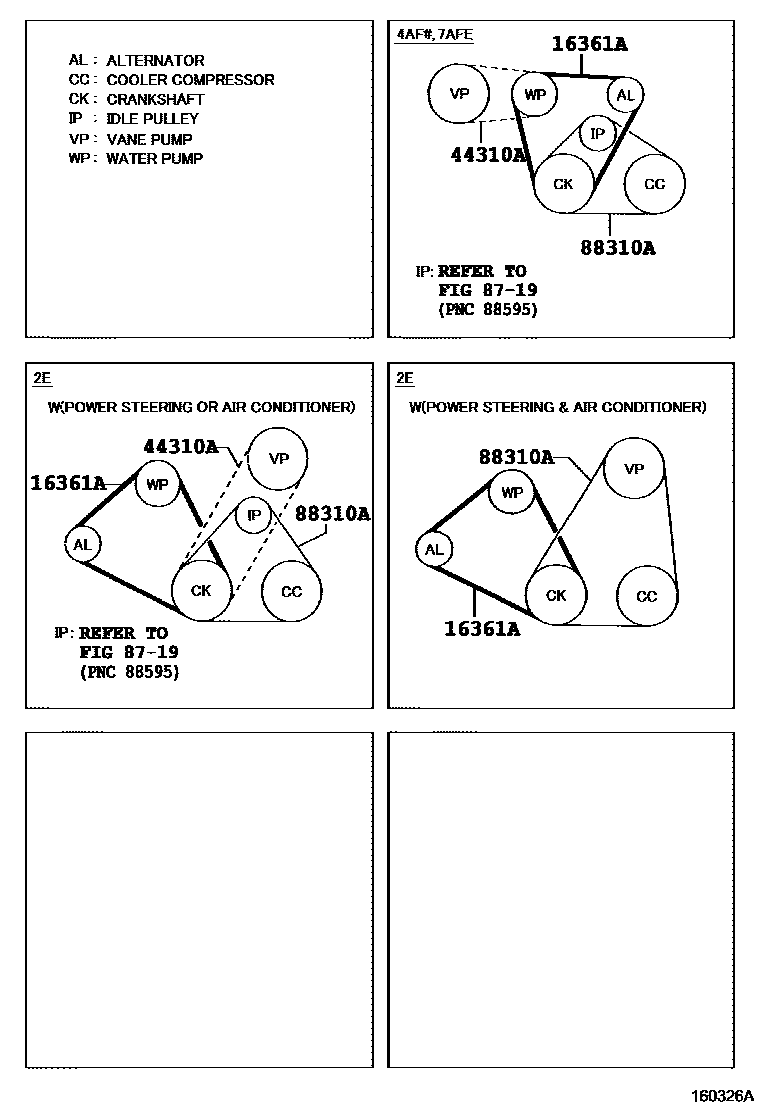

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91055i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

L=970,(L)

main99364-20820i2E..EE110..GCC199704-200008

L=820

main99365-20970i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

L=970,(J)

44310ABELT, V(FOR VANE PUMP)

main90080-91051iAE11#..ARL; AE11#..ARL,NZ199808-199910

L=630,(L)

main99363-90630iAE11#..(GLI,XLI)..(GCC,GEN); AE11#..ARL; AE11#..ARL,NZ; AE11#..GCC,GEN199808-199910

L=630; L=630,(J)

main99365-30910iEE110..GCC199801-199910

L=910

main99365-90890iEE110..GEN199704-199910

L=890

main99365-90910iEE110..GCC199704-200008

L=910,BANDO

main99365-90920iEE110..GCC199704-200008

L=920,MITSUBOSHI

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02354iAE111..GL199704-199910

L=860

main99364-20850iAE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

L=850

main99365-20880iEE110199704-199910

L=880,MITSUBOSHI

main99365-21050iEE110..GEN199704-199910

L=1050,W(POWER STEERING)

main99365-21060iEE110..GCC199704-200008

L=1060,W(POWER STEERING)

main99365-80880iEE110199704-199910

L=880,BANDO

4 parts on this diagram · 1 diagram in section
