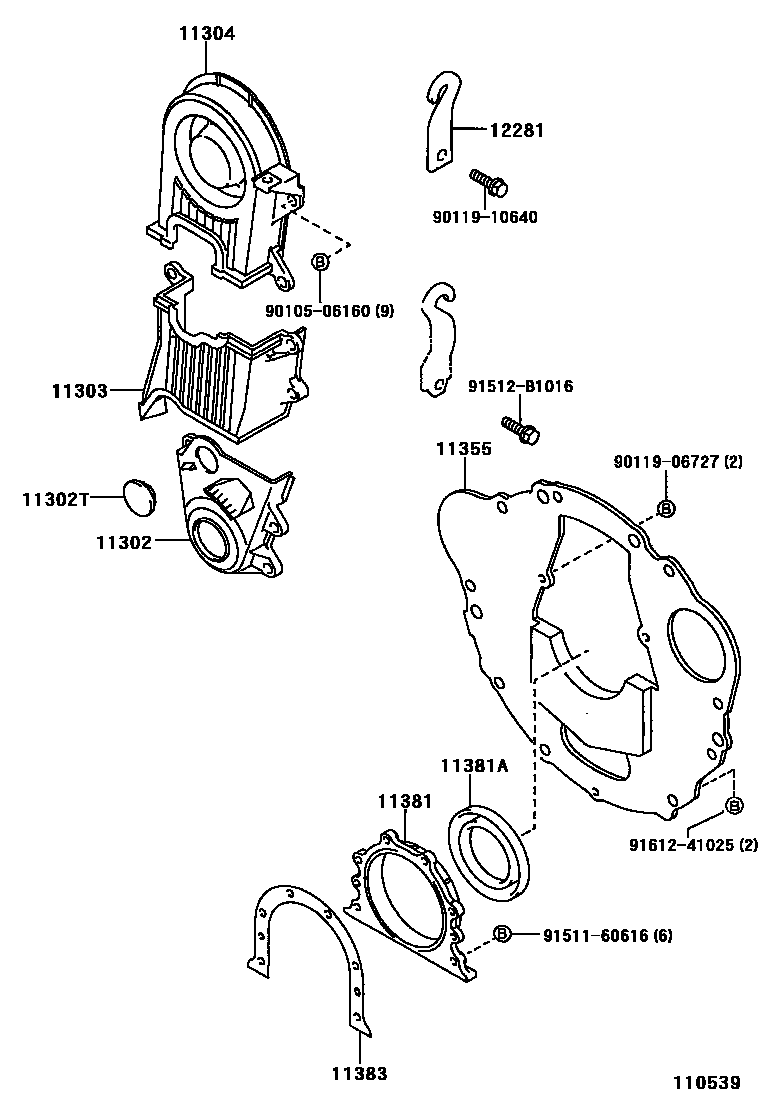

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-15041i4AF..AE111199704-199910

main11302-15050i4AFE,7AFE..AE11#199704-199910

11302TPLUG, HOLE

main90950-01391i4AF..AE111199704-199910

main90950-01783i4AFE,7AFE..AE11#199704-199910

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-15040i4AF..AE111199704-199910

main11303-15050i4AFE..AE111..ARL,GEN199704-200109

main11303-16050i7AFE..AE112..ARL,GCC199704-200109

11304COVER, TIMING CHAIN OR BELT, NO.2

main11304-15020i4AF..AE111199704-199910

main11304-15030i4AFE..AE111..ARL,GEN199704-200109

main11304-16060i7AFE..AE112..ARL,GCC199704-200109

11355PLATE, REAR END

main11355-10012i2E..EE110199704-199910

main11355-15070i4AFE,7AFE..AE11#..5F..(ARL,GCC,GEN)199704-200109

main11355-15080i4AFE,7AFE..AE11#..4FC..(ARL,GCC,GEN)199704-200109

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10021i2E..EE110..GCC199704-200008

main11381-15010i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

11381ASEAL, ENGINE REAR OIL

main90311-70007i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

main90311-75009i2E..EE110..GCC199704-200008

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-16010i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

12281HANGER, ENGINE, NO.1

main12281-15050i4AFE,7AFE..AE11#..ARL,GCC,GEN199704-200109

9010506160

main90105-06160

9011906727

main90119-06727

9011910640

main90119-10640

9151160616

main91511-60616

91512B1016

main91512-B1016

9161241025

main91612-41025

15 parts on this diagram · 3 diagrams in section
