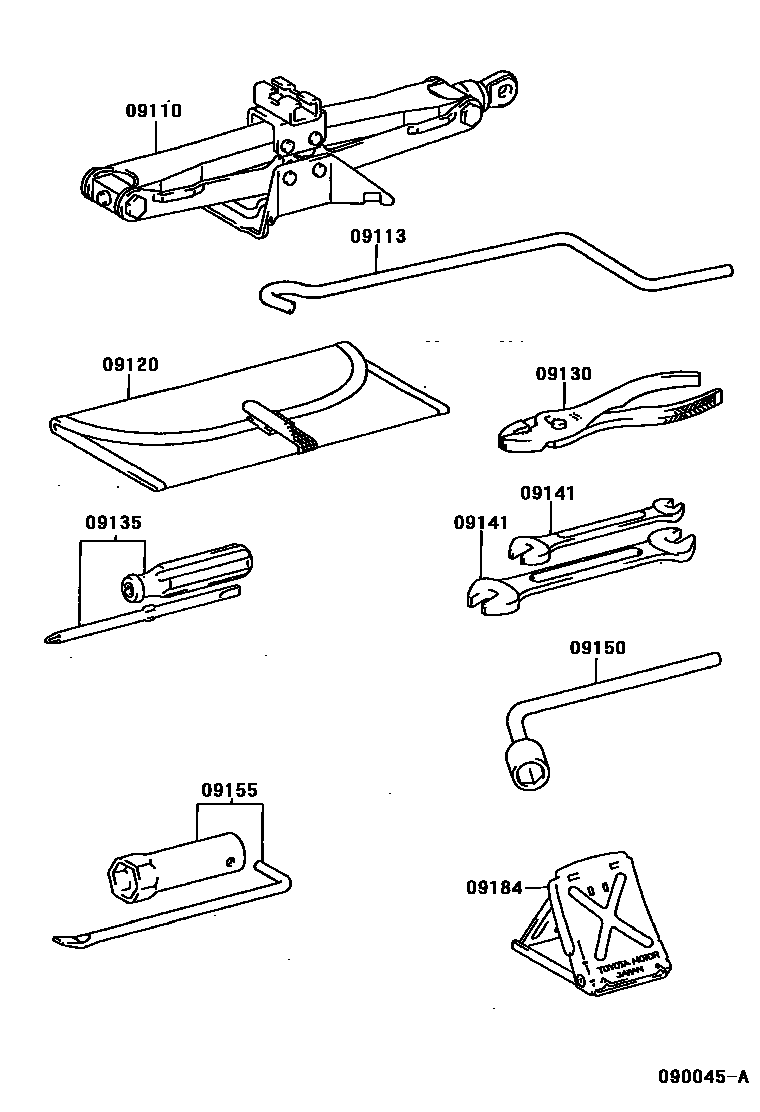

STANDARD TOOL

09110JACK ASSY

main09110-12060iAE11#..ARL199808-200109

main09111-0W020iAE111..GLI..GEN;AE112,EE110..GCC199704-200109

09113HANDLE, JACK

main09113-12020iAE11#,EE110199704-200009

main09113-12030iAE11#200009-200109

sub09113-20040

09120BAG, TOOL

main09120-16030iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

09130PLIERS

main99913-11500iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

09135DRIVER, SCREW

main99915-10700iAE11#,EE110199704-200109

09141SPANNER

main99914-10810iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

8 X 10

main99914-11214iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

09155WRENCH, SPARK PLUG

main09155-41010iEE110..GCC199704-200008

main09155-74010iAE11#199704-200109

09184STOPPER, WHEEL

main09184-00010iAE11#,EE110199704-200109

9 parts on this diagram · 1 diagram in section
