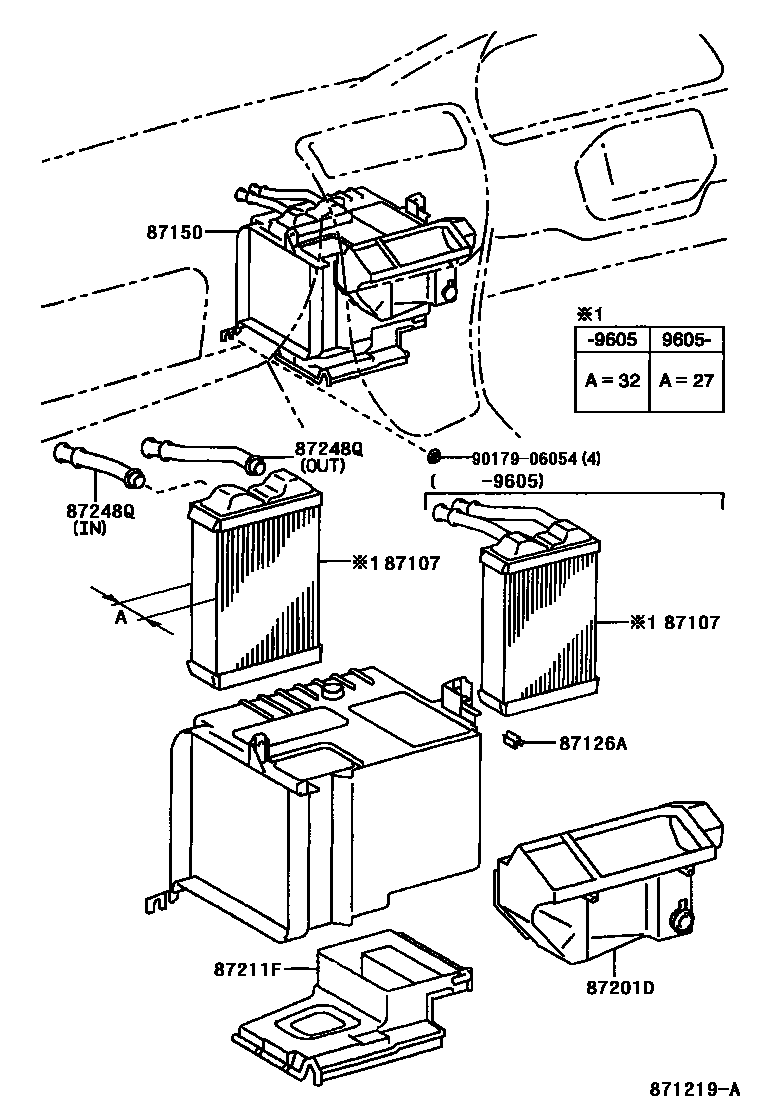

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1RADIATOR 0002 1RADIATOR 0003 1BOOST VENTILATOR 0004 1BLOWER

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-12380iAE10#,EE100..RHD199205-199605

main87107-12480iAE101,EE100..GCC; EE100..LHD..GEN199608-199704

W(*BV)

main87107-12500iAE10#,EE100..RHD199605-199710

87126ACLAMP, HEATER CONTROL

main87126-12050×2iAE10#,EE100199205-199710

main87126-13010iAE101,EE100199704-199710

W(BOOST VENTILATOR)

87150RADIATOR ASSY, HEATER

main87150-12570iAE10#,EE100..RHD199205-199503

main87150-12571iAE10#,EE100..RHD199503-199505

main87150-12670iAE101,EE100..LHD199205-199503

main87150-12671iAE101,EE100..GCC; EE100..LHD..GEN199608-199704

W(*BV)

main87150-12701iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & PASSENGER SIDE & *BV)

main87150-12860iAE10#,EE100..RHD199505-199605

main87150-12861iAE10#,EE100..RHD199605

87201DDUCT SUB-ASSY, AIR

main87201-12300iAE102199402-199710

main87201-12370iAE101,EE100..RHD199205-199308

W(*BV)

main87201-12390iAE101,EE100..LHD199205-199704

W(HEATER)

main87201-12410iAE101,EE100..GCC199608-199704

W(*BV)

main87201-12440iAE101,EE100..LHD199205-199308

W(*BV)

main87201-12500iAE101,EE100..GCC199608-199704

W(*80,DRIVER SIDE & PASSENGER SIDE)

87211FDUCT, AIR

main87211-12160iAE10#,EE100..RHD199205

main87211-12180iAE101,EE100..GCC; EE100..LHD..GEN199608-199704

W(*BV)

87248QPIPE, FRONT HEATER RADIATOR WATER

main87156-12020iAE10#,EE100..RHD199605

IN

main87156-12030iAE10#,EE100..RHD199605

OUT

9017906054

main90179-06054

7 parts on this diagram · 4 diagrams in section
