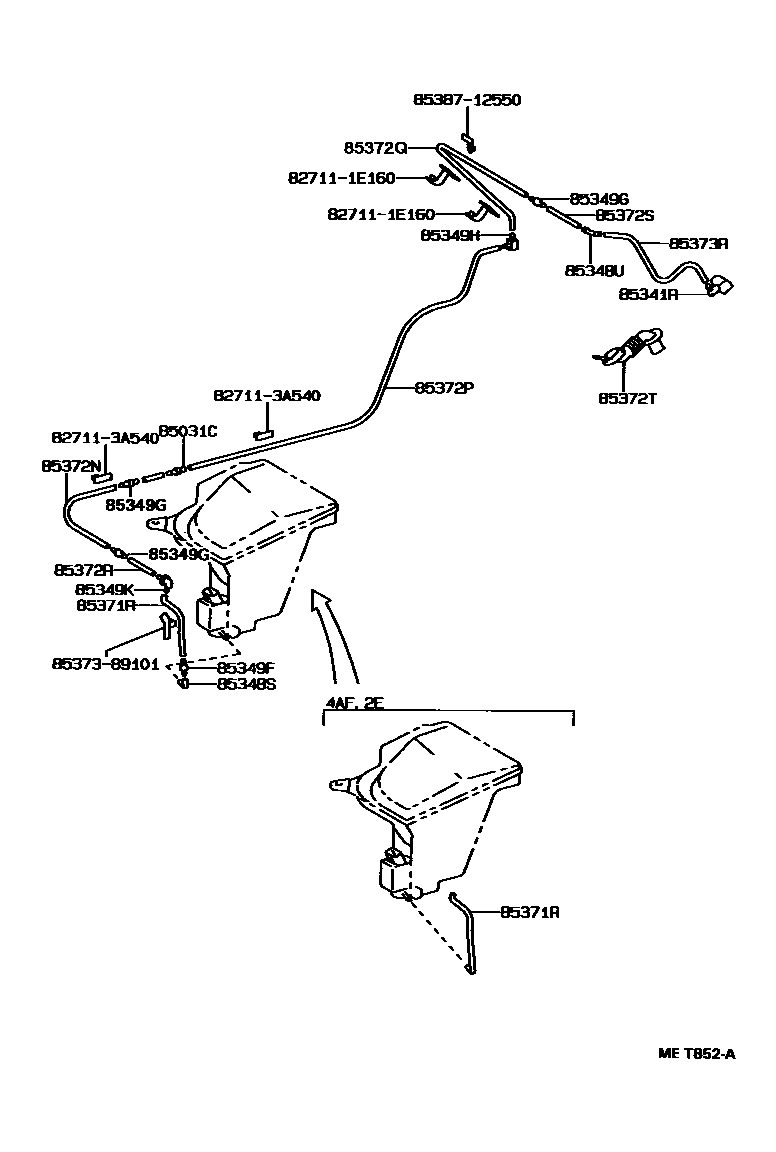

REAR WASHER
85031CVALVE SUB-ASSY, WASHER
85341RNOZZLE ASSY, WASHER
85348SJOINT, REAR WASHER ELBOW, NO.1
85348UJOINT, REAR WASHER HOSE, NO.3
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85349HJOINT, REAR WASHER HOSE, NO.3
85349KJOINT, REAR WASHER ELBOW, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1800(*H,L=130)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1000(*H,L=50)
L=1800(*H,L=1540)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=2350
L=3300(*H,L=2100)
L=3300(*H,L=2200)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1800(*H,L=940)
L=1800(*H,L=900)
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
L=1450(*H,L=70)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=1000(*H,L=65)
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=250)
827111E160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E160
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
8537389101HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85373-89101
8538712550CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-12550
20 parts on this diagram · 2 diagrams in section
