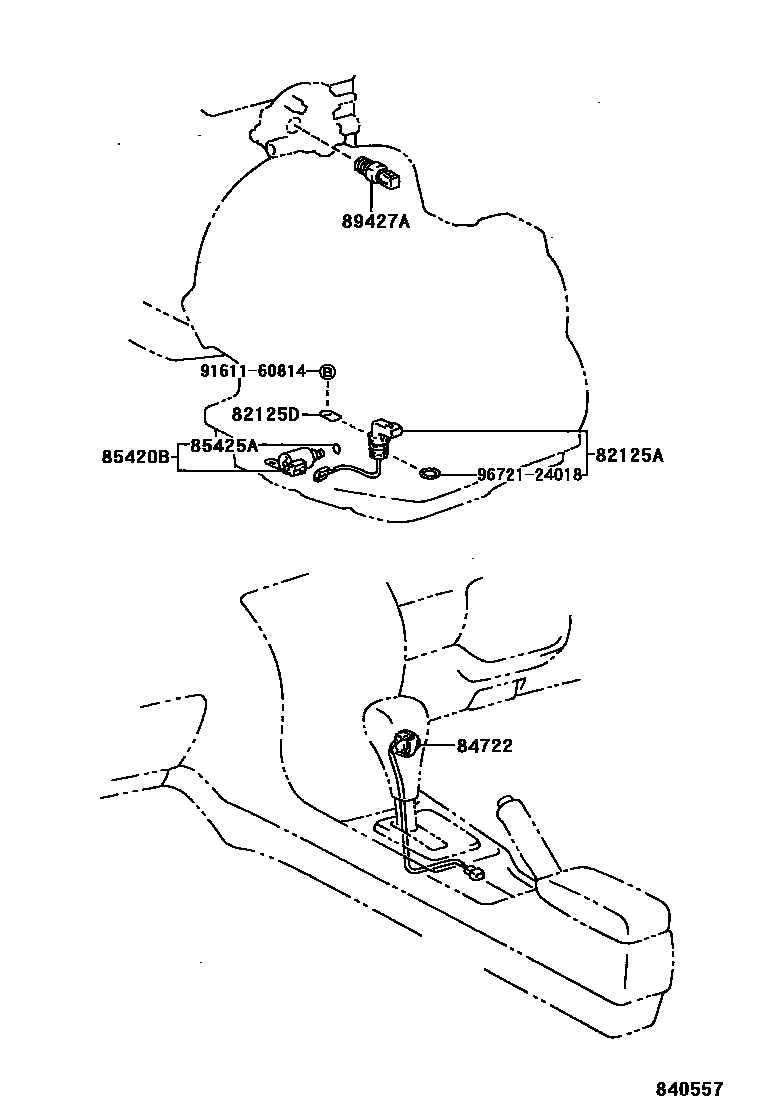

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125AWIRE, TRANSMISSION

main82125-20170iAE10#..4FC199205-199512

main82125-20240iAE10#..4FC199512

82125DPLATE, TRANSMISSION WIRE LOCK

main33485-30020iAE10#..4FC199205

84722SWITCH, TRANSMISSION CONTROL

main84722-12050-B0iAE10#..RHD..4FC199205-199710

SHADOW GRAY,TRIM1#

main84722-12050-J0iAE10#..4FC..GEN199205-199710

DARK BLUE,TRIM8#

main84722-12070-B0iAE101..4FC..GCC199207-199704

SHADOW GRAY,TRIM1#

main84722-12070-J0iAE101..4FC..GCC199207-199704

DARK BLUE,TRIM8#

85420BSOLENOID ASSY, TRANSMISSION

main85420-10011iAE10#..4FC199205-199512

main85420-20180iAE10#..4FC199512

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06004iAE10#..4FC199205

89427ASWITCH, TEMPERATURE

main89427-13010iAE101..4FC..GL199205-199505

9161160814

main91611-60814

9672124018

main96721-24018

8 parts on this diagram · 1 diagram in section
