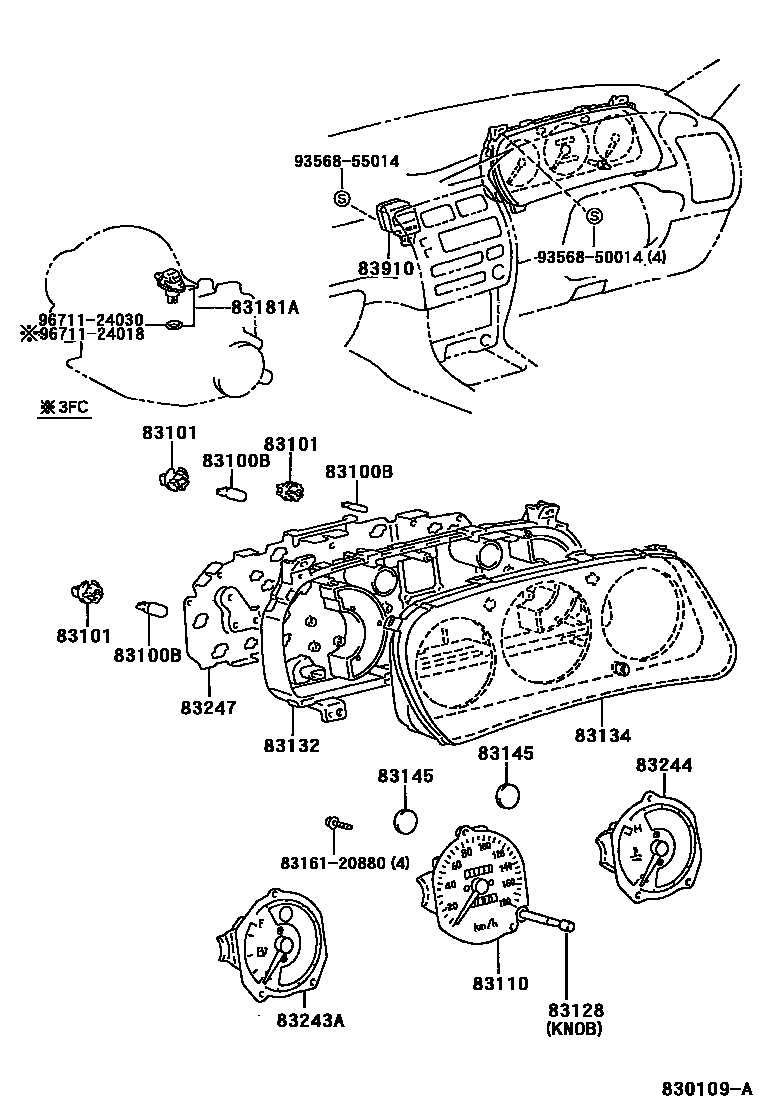

METER

0001 1W/O(TACHOMETER) 0002 1W/O(TACHOMETER) 0003 1W(TACHOMETER) 0004 1W(TACHOMETER) 0005 1

83100BBULB, COMBINATION METER, NO.1

main83109-12030iEE100..4F;EE100..GCC;AE10#,EE100..5D..RHD..GEN199205-199710

12V 3.4W,BLUE CAP

main83109-30070iAE101,EE100..GCC199207-199710

14V 2.0W,W/O SOCKET

main83109-95J00iAE101,EE100..HB..RHD199205-199301

14V 3.78W

main83119-1A020iAE101,EE100..HB..RHD199505-199710

12V 3.4W,W(BLUE CAP)

main83119-24430iAE10#,EE100..5D..RHD199205-199710

12V 1.4W BLUE CAP

main83119-2A100iAE101,EE100..HB..RHD199301-199505

14V 3.8W,W(BLUE CAP)

main83119-32010iEE100..LHD;AE10#..ARL,GCC199205-199704

14V 3.0W

main83120-60010iAE101,EE100..HB..5D..RHD..(4FC,5F)199205-199710

14V 2.0W

main83120-60010iAE101,EE100..HB..5D..RHD..(4FC,5F)199205-199710

14V 2.0W,NEW ZEALAND SPEC

main90981-11018iAE10#,EE100199205-199710

12V 1.2W W/O SOCKET

main99132-12034iAE101,EE100..HB..RHD199205-199710

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iEE100..4F;AE10#,EE100..5D199205-199710

12V 3.4W

main83101-14040iAE10#,EE100199205-199710

12V 1.4W

main83101-20040iAE101,EE100..HB..RHD199205-199710

W(TACHOMETER),12V 3.4W

main83101-32020iEE100..LHD;AE10#..ARL,GCC199205-199704

14V 3.0W

83110SPEEDOMETER ASSY

main83110-1E670iEE100..RHD199205-199310

main83110-1E671iEE100..RHD199310-199710

main83110-1E680iEE100..RHD199205-199405

MILE/KM

main83110-1E681iEE100..RHD199405-199710

MILE/KM

main83110-1E700iAE101..RHD..GL199205-199310

main83110-1E700iEE100..RHD..XL199206-199310

W(TACHOMETER)

main83110-1E710iAE101..RHD..GL199205-199405

MILE/KM

main83110-1E710iEE100..RHD..XL199206-199405

W(TACHOMETER),MILE/KM

main83110-1E711iAE101..RHD..GL199405-199704

MILE/KM

main83110-1E711iEE100..RHD..XL199405-199710

W(TACHOMETER),MILE/KM

main83110-1E720iAE101..XLI199206-199310

W(TACHOMETER)

main83110-1E720iAE101..GLI199205-199310

main83110-1E730iAE101..XLI199206-199405

W(TACHOMETER),MILE/KM

main83110-1E730iAE101..GLI199205-199405

MILE/KM

main83110-1E731iAE101..GLI199405-199710

W(TACHOMETER),MILE/KM

main83110-1E731iAE101..GLI199405-199710

MILE/KM

main83110-1E740iEE100..RHD..XL199310-199311

W(TACHOMETER)

main83110-1E741iAE101..RHD..GL199311-199704

main83110-1E741iEE100..RHD..XL199311-199710

W(TACHOMETER)

main83110-1E750iAE101..XLI199310-199311

W(TACHOMETER)

main83110-1E751iEE100..RHD199505-199710

NEW ZEALAND SPEC & W(TACHOMETER)

main83110-1E751iAE101..XLI199311-199710

W(TACHOMETER)

main83110-1E830iAE101..XLI199206-199310

main83110-1E831iAE101..XLI199310-199710

main83110-1E840iAE101..XLI199206-199405

MILE/KM

main83110-1E841iAE101..XLI199405-199710

MILE/KM

main83110-1H040iAE101..GCC199207-199704

main83110-1H050iEE100..GCC199205-199704

main83110-1H070iEE100..LHD..GEN199205-199405

MILE/KM

main83110-1H071iEE100..LHD..GEN199405-199704

MILE/KM

main83110-1H120iEE100..LHD..XL..GEN199205-199310

W(TACHOMETER)

main83110-1H130iAE101..GCC199207-199704

W(TACHOMETER)

main83110-1H140iEE100..LHD..XL..GEN199205-199405

W(TACHOMETER),MILE/KM

main83110-1H140iEE100..LHD..XL..GEN199205-199405

MILE/KM

main83110-1H141iEE100..LHD..XL..GEN199405-199704

W(TACHOMETER),MILE/KM

main83110-1H141iAE101..LHD..GEN199405-199605

MILE/KM

main83110-1H180iAE102..ARL199402-199605

main83110-1H190iEE100..LHD..GEN199310-199704

main83110-1H210iAE101..LHD..GEN199310-199605

main83110-1H210iEE100..LHD..XL..GEN199310-199704

W(TACHOMETER)

83128KNOB, TRIP COUNTER

main83128-12770iAE101,EE100..GCC199605-199704

83132CASE, COMBINATION METER

main83132-1A530iAE101,EE100..HB..5D..RHD199206-199710

W(TACHOMETER)

main83132-1A530iAE10#..LB..RHD..GEN199205-199710

main83132-1A610iAE101,EE100..LHD..(SI,STD,XL)199205-199704

main83132-1A630iAE101..LHD..GEN199205-199605

main83132-1A630iAE101..GCC;EE100..LHD..XL..GEN199205-199704

W(TACHOMETER)

main83132-1A670iAE102..ARL199402-199605

main83132-1E040iAE101,EE100..HB..RHD199205-199710

83134COVER, COMBINATION METER, NO.1

main83134-1E040iAE101,EE100..HB..RHD199205

83145LENS, METER, NO.1

main83145-89320iAE101,EE100..HB..RHD199205

83181ASENSOR, SPEEDOMETER

main83181-12020iAE10#,EE100..4F,4FC,5F199205-199710

main83181-12040iEE100..3FC199206-199505

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-1E100iAE101,EE100..HB..RHD199205-199305

main83243-1E140iAE101,EE100..HB..RHD199305-199710

main83243-1H110iAE101..LB..RHD199205-199305

main83243-1H110iAE101,EE100..HB..5D..RHD199206-199305

W(TACHOMETER)

main83243-1H111iAE101,EE100..HB..5D..RHD199305-199710

W(TACHOMETER)

main83243-1H210iAE101..LHD..GEN199205-199305

W(TACHOMETER)

main83243-1H211iAE101..LHD..GEN199305-199605

main83243-1H211iAE101..GCC;EE100..LHD..XL..GEN199305-199704

W(TACHOMETER)

main83243-1H251iAE102..ARL199402-199605

main83243-1H430iAE101,EE100..LHD..(SI,STD,XL)199205-199305

main83243-1H431iAE101,EE100..LHD..(SI,STD,XL)199305-199704

main83243-1H710iAE101,EE100..HB..RHD199505-199710

NEW ZEALAND SPEC & W(TACHOMETER)

main83243-1H710iAE102..GEN199505-199710

NEW ZEALAND SPEC

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-1A870iEE100..RHD..XL199206-199710

W(TACHOMETER)

main83244-1A890iAE101..XLI199206-199710

W(TACHOMETER)

main83244-1A890iAE101..LB..RHD199205-199710

main83244-1E050iAE101..LHD..GEN199205-199605

main83244-1E050iEE100..LHD..XL..GEN199205-199704

W(TACHOMETER)

main83244-1E060iEE100..RHD199205-199710

main83244-1E080iAE101..XLI199206-199710

main83244-1E090iAE101..LHD..GEN199205-199605

MIDDLE EAST SPEC

main83244-1E110iAE101..GCC199207-199605

W(TACHOMETER)

main83244-1E190iEE100..LHD..GEN199205-199704

main83244-1E250iEE100..GCC199207-199605

main83244-1E250iEE100..LHD..GEN199205-199704

MIDDLE EAST SPEC

main83244-1E270iAE101..GCC199207-199605

main83244-1E290iAE101,EE100..HB..RHD199505-199710

NEW ZEALAND SPEC

main83244-1E350iAE101..GLI199505-199710

NEW ZEALAND SPEC & W(TACHOMETER)

main83244-1E350iAE102..GEN199505-199710

NEW ZEALAND SPEC

main83883-12380iEE100..GCC199605-199704

main83883-12390iAE101..GCC199605-199704

main83883-12400iAE101..GCC199605-199704

W(TACHOMETER)

83247PLATE, METER CIRCUIT

main83149-12090iEE100..LHD..GEN199205-199605

MIDDLE EAST SPEC & W(SPEEDOMETER---MILE & KM)

main83149-12110iAE101,EE100..GCC199207-199605

main83149-12130iEE100..LHD..GEN199205-199704

W(SPEEDOMETER---MILE & KM)

main83149-12190iAE101..RHD..GL199205-199704

main83149-1E040iAE101,EE100..HB..RHD199205-199710

main83247-1H430iEE100..RHD..XL199206-199710

W(TACHOMETER)

main83247-1H450iAE101..GLI199205-199710

main83247-1H450iAE101..XLI199206-199710

W(TACHOMETER)

main83247-1H730iAE101..GCC;EE100..LHD..XL..GEN199205-199704

W(TACHOMETER)

main83247-1K010iAE102199402-199505

main83247-1K011iAE102..ARL199505-199605

main83247-1K250iAE101,EE100..HB..RHD199505-199710

NEW ZEALAND SPEC & W(TACHOMETER)

main83247-1K250iAE101,EE100..HB..RHD199505-199710

NEW ZEALAND SPEC

main83861-12390iAE101,EE100..GCC199605-199704

main83861-12400iAE101..GCC199605-199704

W(TACHOMETER)

83910CLOCK ASSY

main83910-12460iAE10#,EE100..RHD199205-199710

JECO

main83910-12470iAE101,EE100..LHD199205-199704

main83910-12480iAE10#,EE100..RHD199205-199710

RHYTHM

8316120880CASE, COMBINATION METER MIRROR, NO.1

main83161-20880

9356850014

main93568-50014

9356855014

main93568-55014

9671124018

main96711-24018

9671124030

main96711-24030

17 parts on this diagram · 5 diagrams in section
