Toyota 153330 — WIRING & CLAMP

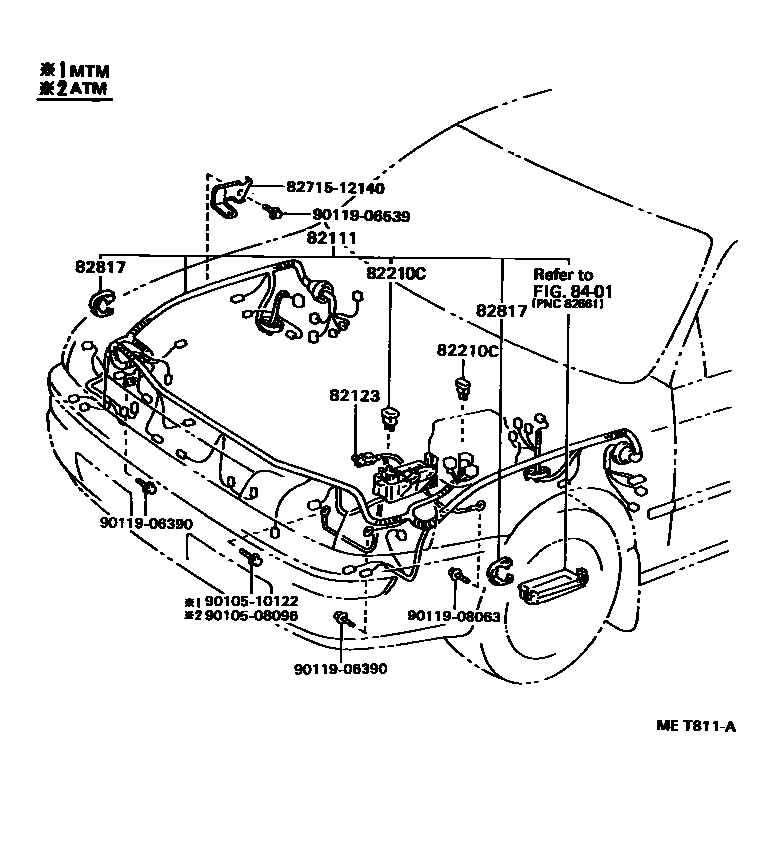

Parts diagram

82111WIRE, ENGINE ROOM MAIN

82123WIRE, ENGINE, NO.3

82210CFUSIBLE LINK

82817PROTECTOR, WIRING HARNESS, NO.1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8271512140BRACKET,WIRING HARNESS CLAMP

9010508096

9010510122

9011906390

9011906539

9011908063

11 parts on this diagram · 14 diagrams in section

WIRING & CLAMP for Toyota 153330

This section contains 75 genuine Toyota parts for the WIRING & CLAMP system of the Toyota 153330. Key components include: INTERIOR LAMP, CABLE, BOND, NO.1, BATTERY & BATTERY CABLE, WIRING SUB-ASSY, COWL, WIRE, ENGINE ROOM MAIN.
