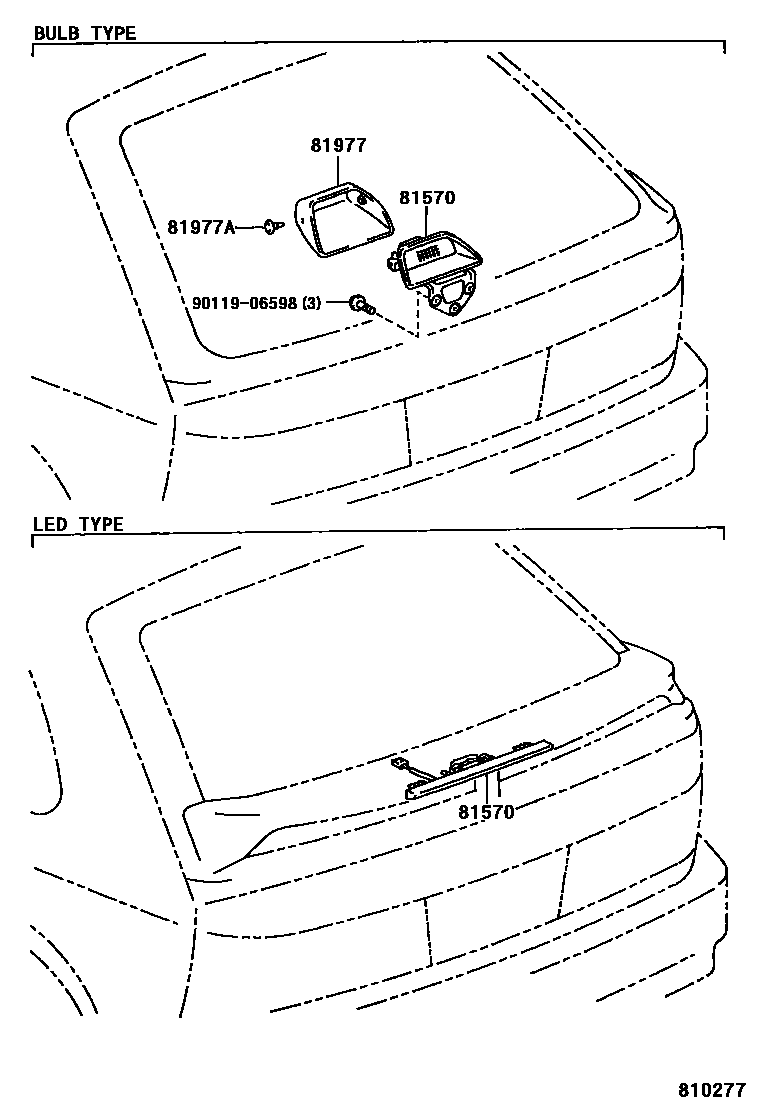

CENTER STOP LAMP

0001 1 0002 1

81570LAMP ASSY, CENTER STOP

main81570-12210iAE10#..GLI199205-199710

main81570-12230iAE101,EE100..HB..GEN199205-199312

main81570-12231iAE101,EE100..HB..GEN199312-199503

main81570-12232iAE101,EE100..HB..GEN199503-199710

main81570-12250iAE101..GCC199207-199503

main81570-12251iAE101..GCC199503-199704

81977COVER, CENTER STOP LAMP

main81977-12150-B0iAE101,EE100..HB..GEN199205-199710

SHADOW GRAY,TRIM1#

main81977-12150-J0iAE101,EE100..HB..GEN199205-199710

DARK BLUE,TRIM8#

81977ACLIP (FOR CENTER STOP LAMP)

main90467-07139-B0×3iAE101,EE100..HB..GEN199205-199305

SHADOW GRAY,TRIM1#

main90467-07139-J0×3iAE101,EE100..HB..GEN199205-199305

DARK BLUE,TRIM8#

9011906598

main90119-06598

4 parts on this diagram · 2 diagrams in section
