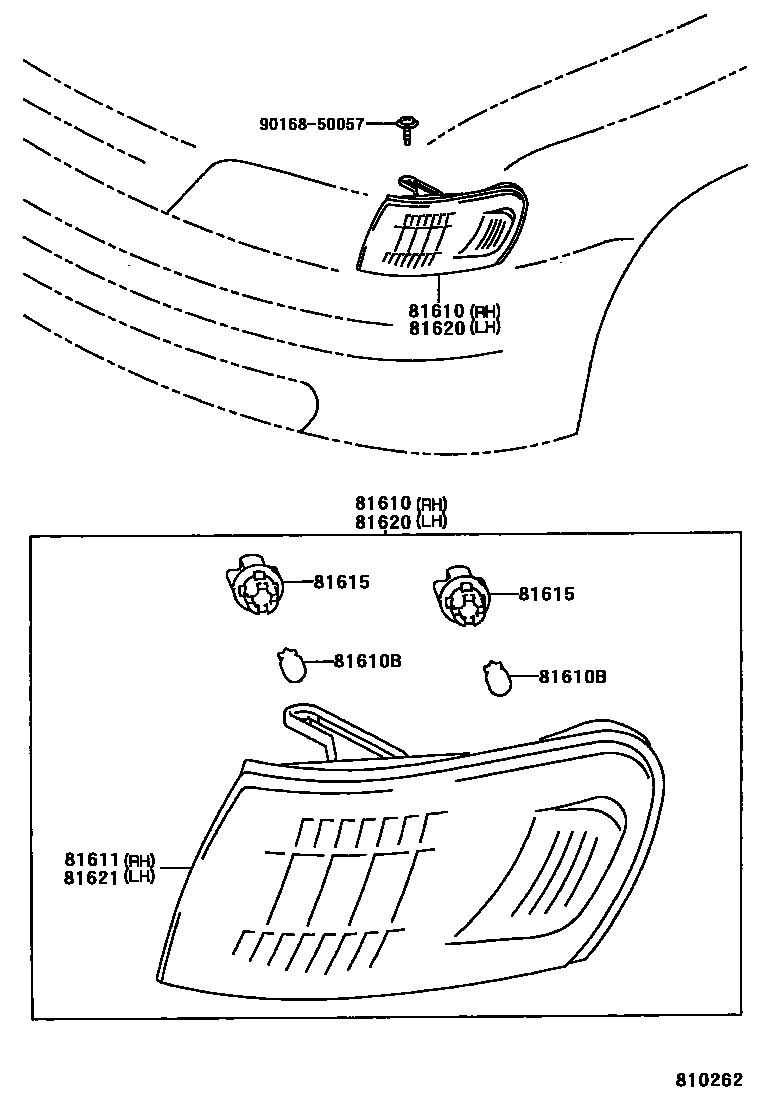

FRONT CLEARANCE LAMP

0001 1 0002 1 0003 1

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-12530iAE101,EE100..HB199205-199704

main81610-12540iAE10#,EE100..LB..GEN199205-199710

main81610-12570iAE102..ARL199402-199605

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×4iAE10#,EE100..GCC,GEN199205-199704

12V 5W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-12530iAE101,EE100..HB199205-199704

main81611-12540iAE10#,EE100..LB..GEN199205-199710

main81611-12570iAE102..ARL199402-199605

81615SOCKET AND WIRE, CLEARANCE LAMP

main90075-99007×2iAE10#,EE100..GCC,GEN199205-199704

SIDE TURN

main90075-99079×2iAE102..ARL199402-199605

main90075-99091×2iAE10#..GLI199704-199710

CLEARANCE & TURN

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-12530iAE101,EE100..HB199205-199704

main81620-12540iAE10#,EE100..LB..GEN199205-199710

main81620-12560iAE102..ARL199402-199605

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-12530iAE101,EE100..HB199205-199704

main81621-12540iAE10#,EE100..LB..GEN199205-199710

main81621-12560iAE102..ARL199402-199605

9016850057

main90168-50057

7 parts on this diagram · 3 diagrams in section
