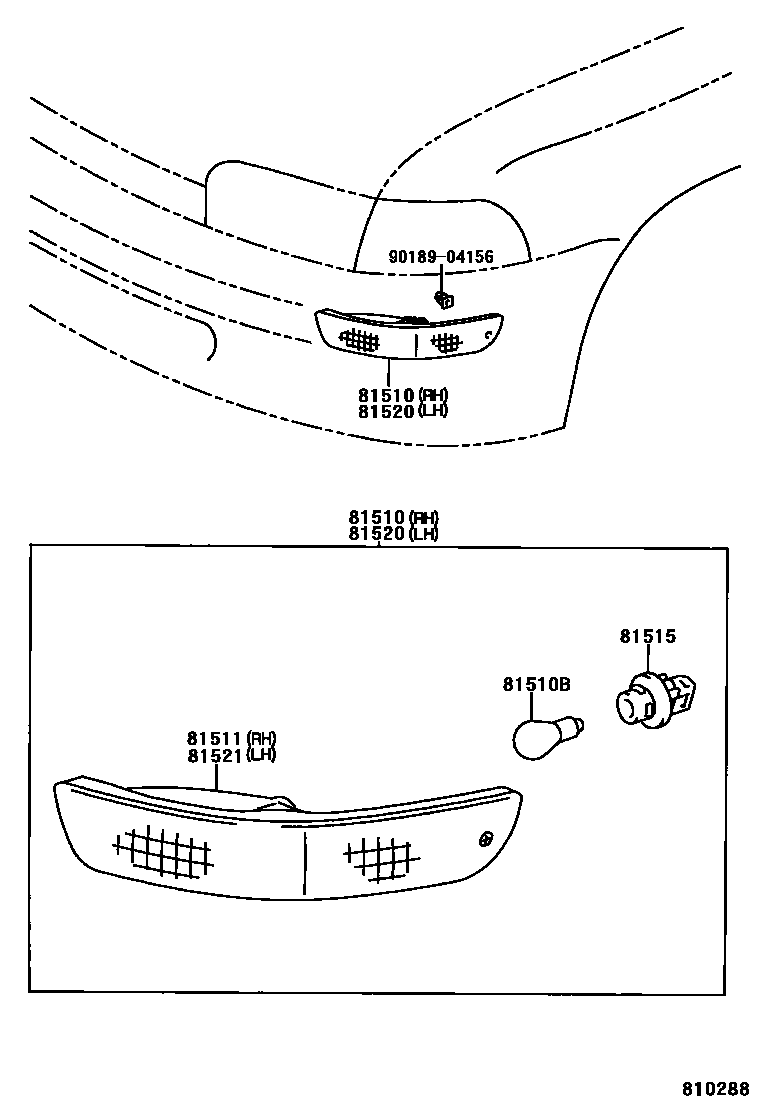

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-12680iAE10#,EE100..LB199205-199710

main81510-12740iAE101,EE100..GCC199505-199508

main81510-12771iAE101,EE100..HB..GEN199505-199710

main81510-12850iAE101,EE100..GCC199508-199704

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iAE10#,EE100199205-199710

12V 21W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-12680iAE10#,EE100..LB199205

main81511-12740iAE101,EE100..HB199205-199505

main81511-12770iAE101,EE100..HB..GEN199505-199710

main81511-12850iAE101,EE100..GCC199508-199704

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-12520×2iAE101,EE100..HB199205-199505

main90075-99020×2iAE10#,EE100..LB199205

main90075-99092×2iAE101,EE100..HB..GEN199505-199508

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-12640iAE10#,EE100..LB199205

main81520-12720iAE101,EE100..HB199205-199505

main81520-12751iAE101,EE100..HB..GEN199505-199710

main81520-12810iAE101,EE100..GCC199508-199704

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-12640iAE10#,EE100..LB199205

main81521-12720iAE101,EE100..GCC199505-199508

main81521-12750iAE101,EE100..HB..GEN199505-199710

main81521-12810iAE101,EE100..GCC199508-199704

9018904156

main90189-04156

7 parts on this diagram · 2 diagrams in section
