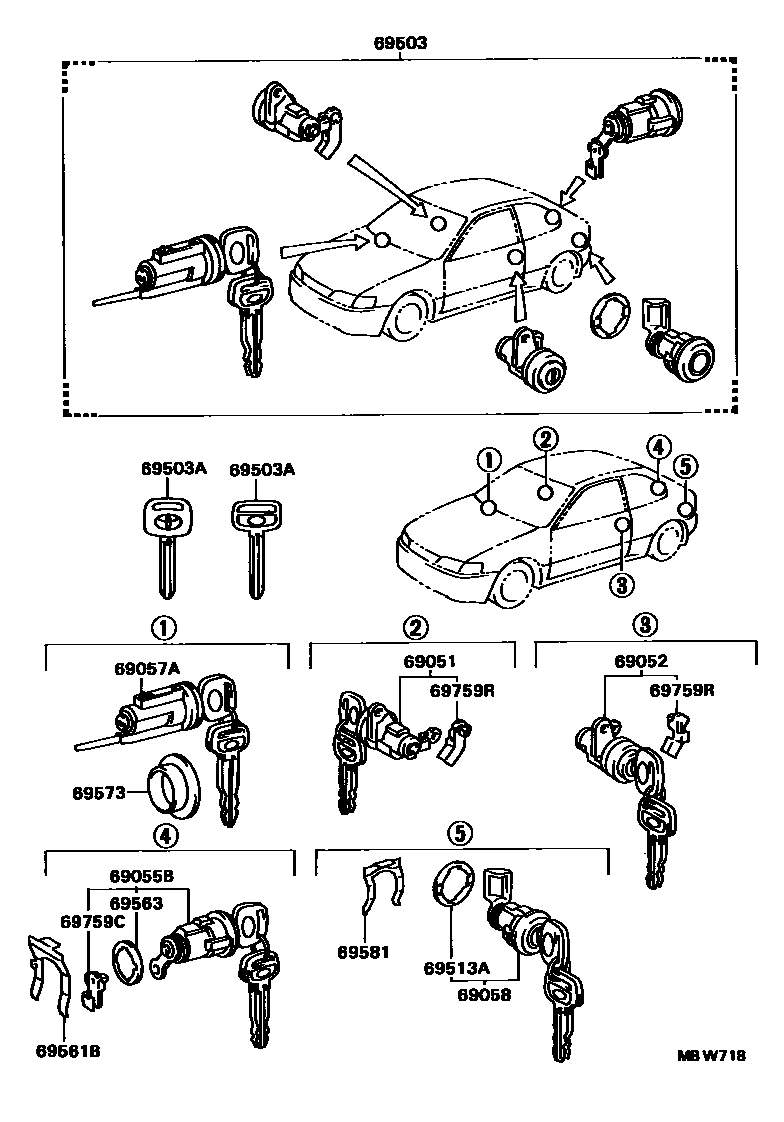

LOCK CYLINDER SET

0001 1 0002 1 0003 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12320iAE10#,EE100..GCC,GEN199205

main69051-12420iAE102..ARL199402-199605

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12320iAE10#,EE100..GCC,GEN199205

main69052-12420iAE102..ARL199402-199605

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-12750iAE10#,EE100..LB..GEN199205

main69055-12830iAE101,EE100..HB199205-199710

main69055-1A070iAE102..ARL199402-199605

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12190iAE10#,EE100..GCC,GEN199205

main69057-12200iAE102..ARL199402-199605

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-12160iEE100..STD199205-199505

69503CYLINDER SET, LOCK

main69005-1A540iAE10#,EE100..LB..GEN199205

main69005-1A570iEE100..STD199205-199505

main69005-1A580iAE101,EE100..HB..5D199206-199710

main69005-1A800iAE102..ARL199402-199605

69503AKEY, BLANK

main90999-00185iAE10#,EE100199205

MASTER KEY,W(*68)

main90999-00186×2iAE10#,EE100199205

MASTER KEY

69513APAD, DOOR CYLINDER

main69513-32010iEE100..STD199205-199505

69561BRETAINER, BACK DOOR LOCK CYLINDER

main69561-10040iAE101,EE100..HB199205

69563PAD, BACK DOOR LOCK CYLINDER

main69563-12090iAE10#,EE100..LB199205

main69563-20040iAE101,EE100..HB199205-199710

69573PAD, IGNITION SWITCH LOCK CYLINDER

main69573-12010iAE10#,EE100199205

69581RETAINER, FUEL FILLER LID CYLINDER

main69581-12020iEE100..STD199205-199505

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-24080iAE10#,EE100199205

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-12080iAE10#,EE100199205

RH

main69759-12090iAE10#,EE100199205

LH

14 parts on this diagram · 3 diagrams in section
