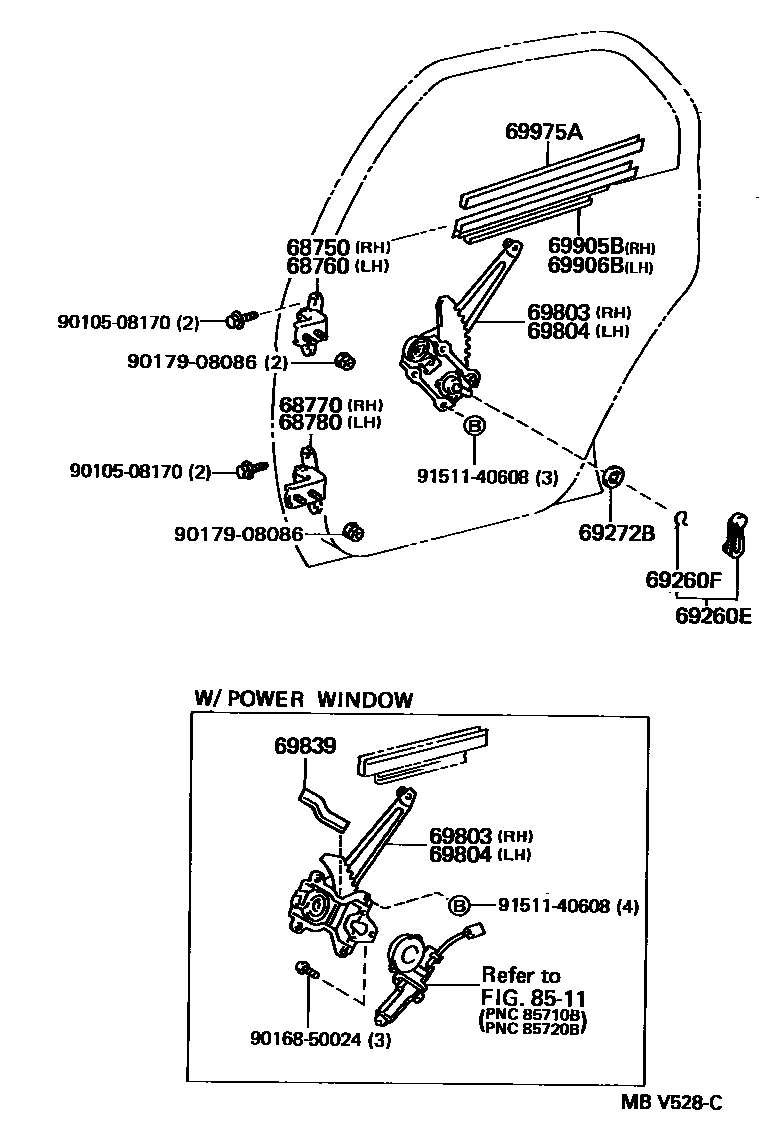

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-12070iAE10#,EE100..5D199205

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-12070iAE10#,EE100..5D199205

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-12080iAE10#,EE100..5D199205

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-12070iAE10#,EE100..5D199205

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-10040-07×2iEE100199205-199206

DARK BLUE,TRIM8#

main69260-10040-43×2iEE100199205-199206

GRAY,TRIM1#

main69260-10040-P0×2iAE101,EE100..HB199705-199710

SHADOW GRAY,TRIM1#

main69260-12080-03×2iAE101..LB;AE102..ARL199205-199710

SHADOW GRAY,TRIM1#

main69260-12080-14×2iAE101..LB199205-199710

DARK BLUE,TRIM8#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01005×2iAE101..LB;AE102..ARL199205

main90520-01274iEE100..STD199205-199505

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-20020×2iAE101,EE100..SI,XL,XLI199205

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12080iAE101,EE100..HB..5D199206-199710

W(*PW)

main69803-12100iAE102..GEN199505-199710

main69830-02030iAE101,EE100..HB..5D199306-199710

(L)

main69830-12200iAE101,EE100..HB..5D199206-199710

(J)

main69830-12250iAE102..ARL;AE101,EE100..LB199205

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12080iAE101,EE100..HB..5D199206-199710

W(*PW)

main69804-12100iAE102..GEN199505-199710

main69840-02030iAE101,EE100..HB..5D199306-199710

(L)

main69840-12200iAE101,EE100..HB..5D199206-199710

(J)

main69840-12250iAE102..ARL;AE101,EE100..LB199205

69839PAD, REAR DOOR WINDOW REGULATOR

main69839-12010×4iAE101,EE100..5D199205-199305

main69839-12020×4iAE101,EE100..HB..5D199305-199710

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-12110iAE101,EE100..HB..5D199206

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-12100iAE101,EE100..HB..5D199206

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-12010×2iAE101,EE100..HB..5D199206

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010508170

main90105-08170

9016850024

main90168-50024

9017908086

main90179-08086

9151140608

main91511-40608

18 parts on this diagram · 1 diagram in section
