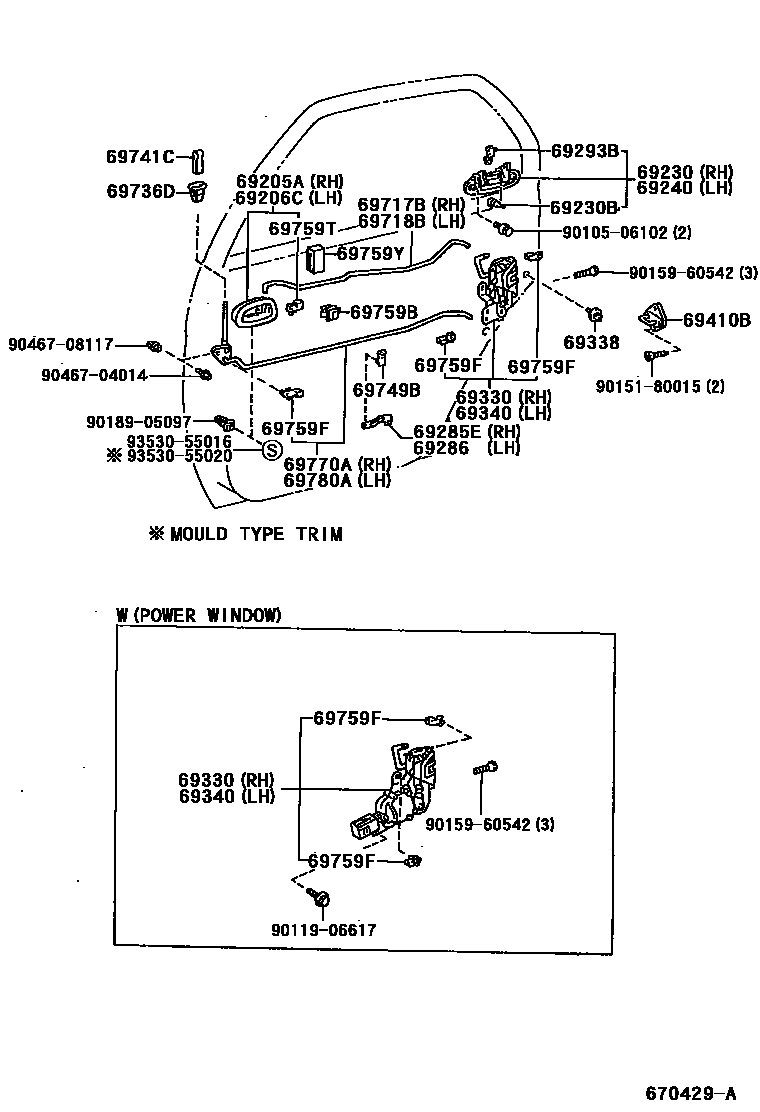

REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
SHADOW GRAY,TRIM1#
NEW ZEALAND SPEC & W(POWER WINDOW),DARK BLUE,TRIM8#
W(*PW),SHADOW GRAY,TRIM1#
W(*PW),DARK BLUE,TRIM8#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
NEW ZEALAND SPEC & W(POWER WINDOW),SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
W(*PW),SHADOW GRAY,TRIM1#
W(*PW),DARK BLUE,TRIM8#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
W(COLOR),DARK BLUEISH GRAY M,183
W(COLOR),GRAYISH GREEN M,6M3
W(COLOR),SUPER WHITE 2,040
SILVER MICA M,192
W(COLOR),ROSE MICA M.GRAPHITE,3K5
W(COLOR),SUPER WHITE 2,040
SILVER MICA M,192; W(COLOR),SILVER MICA M,192
BLUEISH GRAY ME.,182
SILVER ME,199
BLACK M,205
W(COLOR),SUPER RED 2,3E5
W(COLOR),ROSE GRAPHITE MI ME,3K5
ORANGE MICA M,3L1
MD. GREEN M.M.,6P0
DEEP TURQUOISE ME,747
TURQUOISE M.M.,746
DARK BLUE MICA M.,8G5
LT PURPLISH BLUE M.M,8K1
DARK BLUE MC.,8K8
STRONG BLUE M,8B6
LAVENDER MICA M,925
GREEN MC.,6P6
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
W(COLOR),DARK BLUEISH GRAY M,183
W(COLOR),GRAYISH GREEN M,6M3
SUPER WHITE 2,040
SILVER MICA M,192
W(COLOR),ROSE MICA M.GRAPHITE,3K5
SUPER WHITE 2,040
SILVER MICA M,192; W(COLOR),SILVER MICA M,192
W(COLOR),BLUEISH GRAY ME.,182
SILVER ME,199
BLACK M,205
W(COLOR),SUPER RED 2,3E5
W(COLOR),ROSE GRAPHITE MI ME,3K5
ORANGE MICA M,3L1
W(COLOR),MD. GREEN M.M.,6P0
DEEP TURQUOISE ME,747
TURQUOISE M.M.,746
DARK BLUE MICA M.,8G5
LT PURPLISH BLUE M.M,8K1
W(COLOR),DARK BLUE MC,8K8
STRONG BLUE M,8B6
LAVENDER MICA M,925
GREEN MC.,6P6
69285EPLATE, REAR DOOR INSIDE LOCKING CONTROL, RH
69286PLATE, REAR DOOR INSIDE LOCKING CONTROL, LH
69293BSNAP, REAR DOOR OUTSIDE HANDLE
RH
LH
69330LOCK ASSY, REAR DOOR, RH
W(*EL)
W(*EL)
W(*EL)
69338KNOB, CHILD PROTECTOR LOCK LEVER
69340LOCK ASSY, REAR DOOR, LH
W(*EL)
W(*EL)
W(*EL)
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69736DGUIDE, REAR DOOR LOCKING LINK
69741CKNOB, REAR DOOR LOCK CONTROL
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
69749BCLAMP, REAR DOOR LOCK LINK
69759BSNAP, REAR DOOR LOCK CYLINDER
69759FSNAP, REAR DOOR LOCK CONTROL LINK
NATURAL
LIGHT BLUE
YELLOW
BROWN
69759TSNAP, REAR DOOR INSIDE HANDLE
LH
RH
69759YSILENCER, REAR DOOR LOCK LINK
60 X 40
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
9010506102
main90105-06102
9011906617
main90119-06617
9015180015
main90151-80015
9015960542
main90159-60542
9018905097
main90189-05097
9046704014
main90467-04014
9046708117
main90467-08117
9353055016
main93530-55016
9353055020
main93530-55020
32 parts on this diagram · 1 diagram in section
