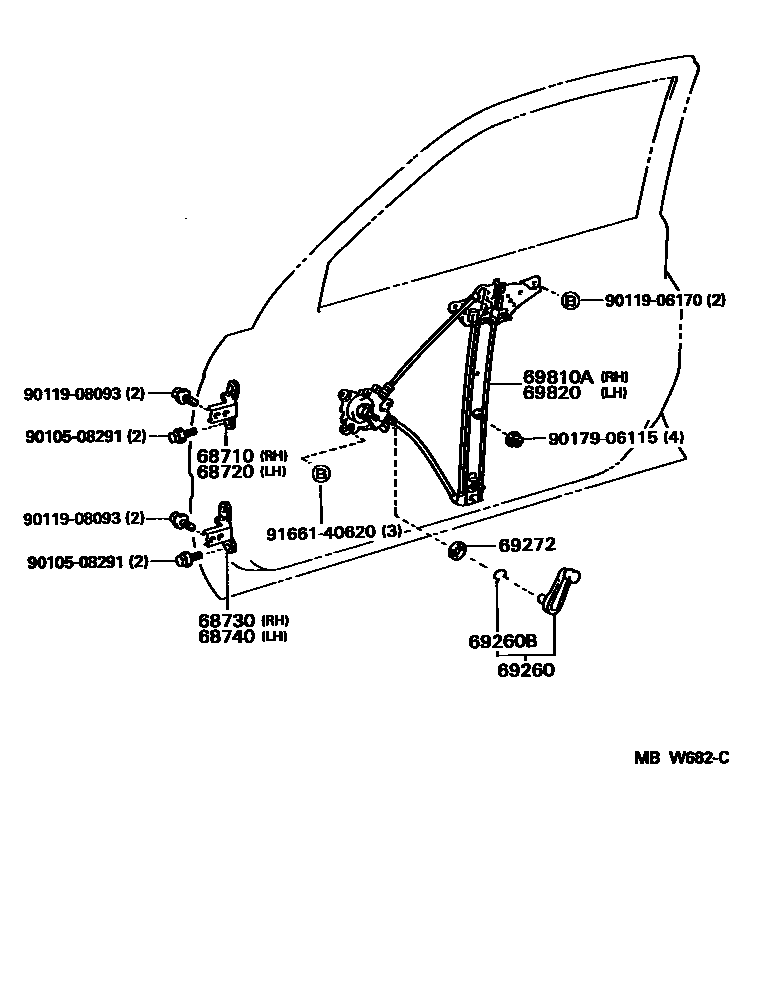

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12130iAE10#,EE100199205-199510

main68710-12150iAE10#,EE100199510

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12130iAE10#,EE100199205-199510

main68720-12150iAE10#,EE100199510

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12090iAE10#,EE100199205-199510

main68730-12110iAE10#,EE100199510

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12090iAE10#,EE100199205-199510

main68740-12110iAE10#,EE100199510

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-07×2iEE100199205-199206

DARK BLUE,TRIM8#

main69260-10040-43×2iEE100199205-199206

GRAY,TRIM1#

main69260-10040-P0×2iAE101,EE100..HB199705-199710

SHADOW GRAY,TRIM1#

main69260-12080-03×2iAE101..LB;AE102..ARL199205-199710

SHADOW GRAY,TRIM1#

main69260-12080-14×2iAE101..LB199205-199710

DARK BLUE,TRIM8#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01005×2iAE101..LB;AE102..ARL199205

main90520-01274iEE100..STD199205-199505

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-20020×2iAE101,EE100..SI,STD,XL,XLI199205

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-12380iAE101,EE100..5D199205-199310

main69810-12381iAE102..ARL;AE101,EE100..5D199310-199607

main69810-12382iAE101,EE100199705-199710

main69810-12390iAE102..ARL;AE101,EE100..5D199205

W(POWER WINDOW)

main69810-12430iEE100..STD199205-199505

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-12380iAE101,EE100..5D199205-199310

main69820-12381iAE102..ARL;AE101,EE100..5D199310-199607

main69820-12382iAE101,EE100199607-199705

main69820-12390iAE102..GEN199505-199710

main69820-12430iEE100..STD199205-199505

9010508291

main90105-08291

9011906170

main90119-06170

9011908093

main90119-08093

9017906115

main90179-06115

9166140620

main91661-40620

14 parts on this diagram · 2 diagrams in section
