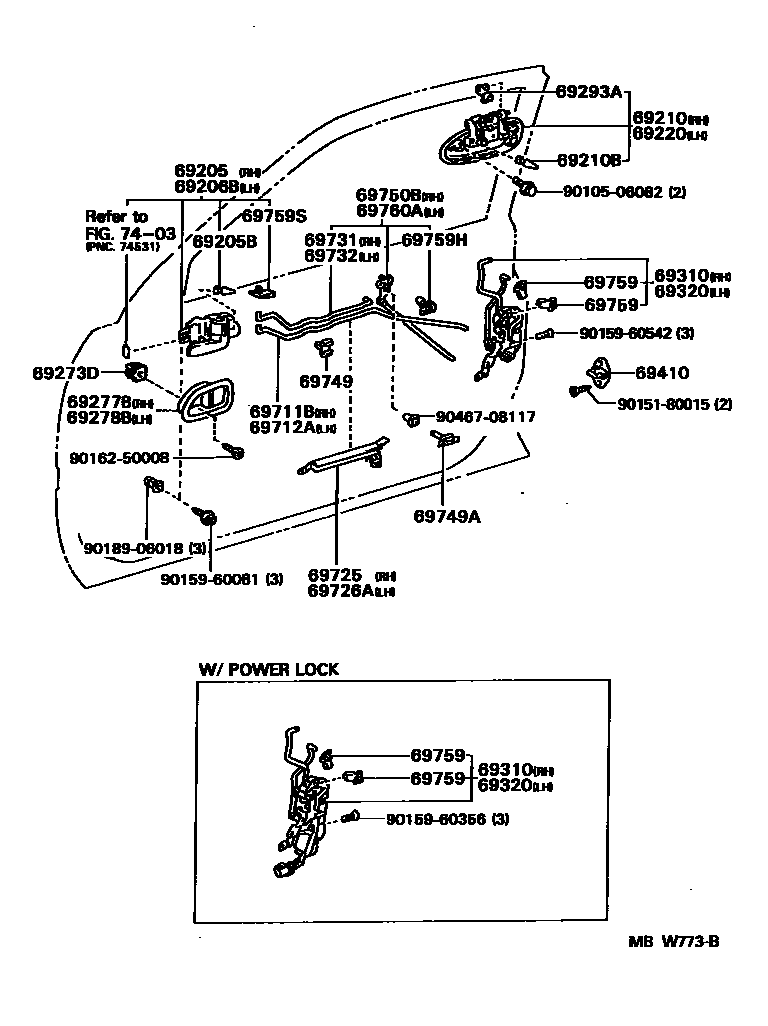

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#; W(POWER WINDOW),SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#; W(POWER WINDOW),DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
W(*PW),DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#; W(POWER WINDOW),SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#; W(POWER WINDOW),DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
BLACK M,205
W(COLORED TYPE),DARK BLUEISH GRAY M,183
W(COLORED TYPE),GRAYISH GREEN M,6M3
SUPER WHITE 2,040
W(COLORED TYPE),SILVER MICA M,192
W(COLORED TYPE),ROSE MICA M.GRAPHITE,3K5
LAVENDER MICA M,925
SUPER WHITE 2,040; W(COLORED TYPE),SUPER WHITE 2,040
SILVER MICA M,192; W(COLORED TYPE),SILVER MICA M,192
BLUEISH GRAY ME.,182
SILVER ME,199
BLACK METALLIC,205
W(COLORED TYPE),SUPER RED 2,3E5
W(COLORED TYPE),ROSE GRAPHITE MI ME,3K5
ORANGE MICA M,3L1
MD. GREEN M.M.,6P0
DEEP TURQUOISE M,747
TURQUOISE M.M.,746
W(COLORED TYPE),DARK BLUE MICA M,8G5
LT PURPLISH BLUE M.M,8K1
DARK BLUE MC.,8K8
STRONG BLUE M,8B6
GREEN MC.,6P6
SUPER WHITE 2,040
SILVER ME,199
BLUISH GRAY ME,182
BLACK ME,205
SUPER RED 2,3E5
GREEN MC.,6P6
TURQUOISE M.M.,746
DK.BLUE MC.,8K8
STRONG BLUE M.,8B6
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
BLACK M,205
W(COLORED TYPE),DARK BLUEISH GRAY M,183
GRAYISH GREEN M,6M3
SUPER WHITE 2,040
SILVER MICA M,192
W(COLORED TYPE),ROSE MICA M.GRAPHITE,3K5
LAVENDER MICA M,925
SUPER WHITE 2,040; W(COLORED TYPE),SUPER WHITE 2,040
SILVER MICA M,192; W(COLORED TYPE),SILVER MICA M,192
W(COLORED TYPE),BLUEISH GRAY ME.,182
SILVER ME,199
BLACK METALLIC,205
SUPER RED 2,3E5
W(COLORED TYPE),ROSE GRAPHITE MI ME,3K5
ORANGE MICA M,3L1
W(COLORED TYPE),MD. GREEN M.M.,6P0
DEEP TURQIOISE M,747
TURQUOISE M.M.,746
DARK BLUE MICA M.,8G5
LT PURPLISH BLUE M.M,8K1
DARK BLUE MC.,8K8
STRONG BLUE M,8B6
GREEN MC.,6P6
SUPER WHITE 2,040
SILVER ME,199
BLUISH GRAY ME,182
BLACK ME,205
SUPER RED 2,3E5
GREEN MC.,6P6
TURQUOISE M.M.,746
DK.BLUE MC.,8K8
STRONG BLUE M.,8B6
69273DPLATE, DOOR INSIDE
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(*EL)
69320LOCK ASSY, FRONT DOOR, LH
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(*EL)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69749CLAMP, FRONT DOOR LOCK LINK
BLUE
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
YELLOW
BROWN
NATURAL
BLUE
GREEN
GRAY
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
RH
LH
69759SSNAP, FRONT DOOR INSIDE HANDLE
LH
RH
LH
RH
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
7403CAUTION PLATE (EXTERIOR & INTERIOR)
9010506082
main90105-06082
9015180015
main90151-80015
9015960081
main90159-60081
9015960356
main90159-60356
9015960542
main90159-60542
9016250008
main90162-50008
9018906018
main90189-06018
9046708117
main90467-08117
35 parts on this diagram · 2 diagrams in section
