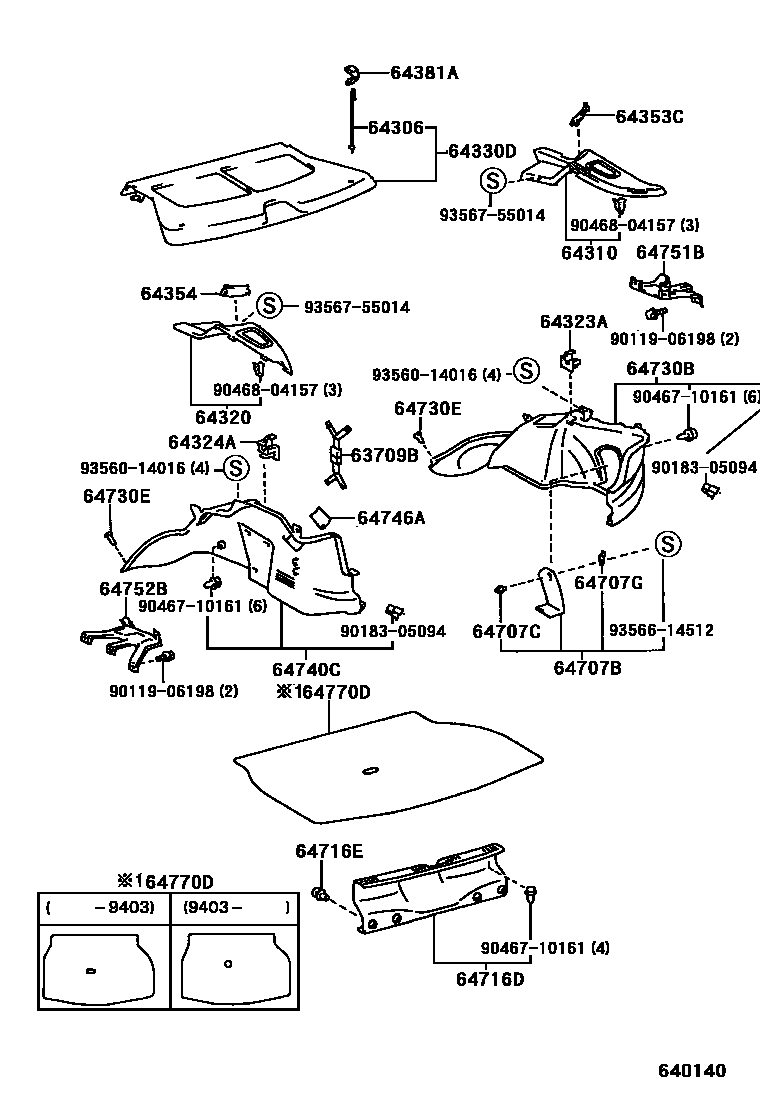

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

63709BBAND SUB-ASSY, ROOM RACK

main63709-12010-C0iAE10#,EE100..LB..GEN199205-199710

BLACK,TRIM1#,8#

main63709-12010-C0iAE102..ARL199402-199605

BLACK,TRIM1#

main63709-12020-C0iAE101..XLI199205-199710

BLACK,TRIM1#,8#

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-12050iAE101,EE100..HB199205-199306

main64306-12070iAE101,EE100..LB199205-199306

64310BRACKET, PACKAGE TRAY TRIM, RH

main64301-12230-B0iAE101,EE100..LB199205-199710

SHADOW GRAY,TRIM1#

sub64301-12240

main64301-12230-J0iAE101,EE100..LB199205-199710

DARK BLUE,TRIM8#

sub64301-12240

main64301-12240-B0iAE102199402-199710

SHADOW GRAY,TRIM1#

main64301-12240-B0iAE101,EE100..LB199205-199710

W(REAR SPEAKER),SHADOW GRAY,TRIM1#

main64301-12240-J0iAE102..GEN199505-199710

DARK BLUE,TRIM8#

main64301-12240-J0iAE101,EE100..LB199205-199710

W(REAR SPEAKER),DARK BLUE,TRIM8#

main64310-12010-B0iEE100..STD199205-199505

SHADOW GRAY,TRIM1#

main64310-12010-J0iEE100..STD199205-199505

DARK BLUE,TRIM8#

main64310-12030-B0iAE101,EE100..HB..5D199206-199710

SHADOW GRAY,TRIM1#

sub64310-12030

main64310-12030-B0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199505

NEW ZEALAND SPEC & W(3 POINT REAR SEAT BELT),SHADOW GRAY,TRIM1#

sub64310-12030

main64310-12030-J0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199505

NEW ZEALAND SPEC & W(3 POINT REAR SEAT BELT),DARK BLUE,TRIM8#

sub64310-12030

main64310-12030-J0iAE101,EE100..HB..5D199206-199710

DARK BLUE,TRIM8#

sub64310-12030

main64310-12040-B0iAE101,EE100..HB..5D199206-199710

W(REAR SPEAKER),SHADOW GRAY,TRIM1#

sub64310-12040

main64310-12040-J0iAE101,EE100..HB..5D199206-199710

W(REAR SPEAKER),DARK BLUE,TRIM8#

sub64310-12040

64320BRACKET, PACKAGE TRAY TRIM, LH

main64302-12230-B0iAE101,EE100..LB199205-199710

SHADOW GRAY,TRIM1#

sub64302-12240

main64302-12230-J0iAE101,EE100..LB199205-199710

DARK BLUE,TRIM8#

sub64302-12240

main64302-12240-B0iAE101,EE100..LB199205-199710

W(REAR SPEAKER),SHADOW GRAY,TRIM1#

main64302-12240-B0iAE102199402-199710

SHADOW GRAY,TRIM1#

main64302-12240-J0iAE102..GEN199505-199710

DARK BLUE,TRIM8#

main64302-12240-J0iAE101,EE100..LB199205-199710

W(REAR SPEAKER),DARK BLUE,TRIM8#

main64320-12010-B0iEE100..STD199205-199505

SHADOW GRAY,TRIM1#

main64320-12010-J0iEE100..STD199205-199505

DARK BLUE,TRIM8#

main64320-12030-B0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199505

NEW ZEALAND SPEC & W(3 POINT REAR SEAT BELT),SHADOW GRAY,TRIM1#

sub64320-12030

main64320-12030-B0iAE101,EE100..HB..5D199206-199710

SHADOW GRAY,TRIM1#

sub64320-12030

main64320-12030-J0iAE101,EE100..HB..5D..RHD..(4FC,5F)199206-199505

NEW ZEALAND SPEC & W(3 POINT REAR SEAT BELT),DARK BLUE,TRIM8#

sub64320-12030

main64320-12030-J0iAE101,EE100..HB..5D199206-199710

DARK BLUE,TRIM8#

sub64320-12030

main64320-12040-B0iAE101,EE100..HB..5D199206-199710

W(REAR SPEAKER),SHADOW GRAY,TRIM1#

sub64320-12040

main64320-12040-J0iAE101,EE100..HB..5D199206-199710

W(REAR SPEAKER),DARK BLUE,TRIM8#

sub64320-12040

64323ACLAMP, PACKAGE TRAY TRIM, RH

main64323-12050iAE10#,EE100..LB199205

main64327-12020iAE101,EE100..HB199205-199710

64324ACLAMP, PACKAGE TRAY TRIM, LH

main64324-12020iAE10#,EE100..LB199205

main64328-12020iAE101,EE100..HB199205-199710

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-1A360-B0iAE101,EE100..HB199205-199710

SHADOW GRAY,TRIM1#

main64330-1A360-J1iAE101,EE100..HB199205-199710

DARK BLUE,TRIM8#

main64330-1A370-B0iAE101,EE100..HB..GEN199205-199710

W(HIGH MOUNT STOP LAMP),SHADOW GRAY,TRIM1#

main64330-1A370-J1iAE101,EE100..HB..GEN199205-199710

W(HIGH MOUNT STOP LAMP),DARK BLUE,TRIM8#

main64330-1A490-B0iAE10#,EE100..LB199205-199710

SHADOW GRAY,TRIM1#

main64330-1A490-J1iAE10#,EE100..LB..GEN199205-199710

DARK BLUE,TRIM8#

64353CCOVER, PACKAGE TRAY TRIM BELT HOLE, RH

main64353-12070-B0iEE100..STD199205-199505

SHADOW GRAY,TRIM1#

sub64353-12070

main64353-12070-J0iEE100..STD199205-199505

DARK BLUE,TRIM8#

sub64353-12070

main64353-12080-B0iAE101,EE100..HB..5D199206-199710

SHADOW GRAY,TRIM1#

sub64353-12080

main64353-12080-J0iAE101,EE100..HB..5D199206-199710

DARK BLUE,TRIM8#

sub64353-12080

64354COVER, PACKAGE TRAY TRIM BELT HOLE, LH

main64354-12060-B0iEE100..STD199205-199505

SHADOW GRAY,TRIM1#

sub64354-12060

main64354-12060-J0iEE100..STD199205-199505

DARK BLUE,TRIM8#

sub64354-12060

main64354-12070-B0iAE101,EE100..HB..5D199206-199710

SHADOW GRAY,TRIM1#

sub64354-12070

main64354-12070-J0iAE101,EE100..HB..5D199206-199710

DARK BLUE,TRIM8#

sub64354-12070

64381AHANGER, PACKAGE TRAY TRIM

main64381-12020iAE10#,EE100..LB199205

main64381-12030iAE101,EE100..HB199205-199710

64707BCOVER SUB-ASSY, QUARTER TRIM JACK

main64707-12070-B0iAE101,EE100..HB199205-199710

SHADOW GRAY,TRIM1#

sub64707-12070

main64707-12070-J0iAE101,EE100..HB199205-199710

DARK BLUE,TRIM8#

sub64707-12070

main64707-12080-B0iAE10#,EE100..LB199205-199710

SHADOW GRAY,TRIM1#

main64707-12080-J0iAE10#,EE100..LB..GEN199205-199710

DARK BLUE,TRIM8#

64707CKNOB, JACK COVER

main64982-16020-30iAE101,EE100199205-199310

SHADOW GRAY,TRIM1#

sub64982-16020

main64982-16020-J1iAE10#,EE100..GCC,GEN199205-199710

DK.BLUE,TRIM8#

sub64982-16020

main64982-16020-P0iAE10#,EE100199310-199710

SHADOW GRAY,TRIM1#

sub64982-16020

64707GSTOPPER, JACK COVER

main64981-16021iAE10#,EE100199205

64716DCOVER, DECK TRIM, REAR

main64716-12200-B0iAE101,EE100..HB199205-199710

SHADOW GRAY,TRIM1#

main64716-12200-J0iAE101,EE100..HB199205-199710

DARK BLUE,TRIM8#

main64716-12230-B0iAE10#,EE100..LB..GEN199205-199710

SHADOW GRAY,TRIM1#

sub64716-12230

main64716-12230-J0iAE10#,EE100..LB..GEN199205-199710

DARK BLUE,TRIM8#

sub64716-12230

main64716-12240-B0iAE102199402-199410

SHADOW GRAY,TRIM1#

sub64716-12230

main64716-12241-B0iAE102..ARL199410-199605

SHADOW GRAY,TRIM1#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-06133-C0iAE101,EE100..HB..RHD199505-199509

NEW ZEALAND SPEC,BLACK,TRIM1#,8#

sub90467-06133

main90467-07041-C0iAE101,EE100..HB199206-199710

BLACK,TRIM1#,8#

sub90467-07041

main90467-07146iEE100..STD199205-199206

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-12220-B0iAE101,EE100..HB199205-199710

SHADOW GRAY,TRIM1#

main64730-12220-J0iAE101,EE100..HB199205-199710

DARK BLUE,TRIM8#

main64730-12230-B0iAE10#,EE100..LB..GEN199205-199710

SHADOW GRAY,TRIM1#

main64730-12230-J0iAE10#,EE100..LB..GEN199205-199710

DARK BLUE,TRIM8#

main64730-12260-B0iAE102..ARL199402-199605

SHADOW GRAY,TRIM1#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-06049-B0iAE101,EE100..HB199205-199710

SHADOW GRAY,TRIM1#

sub90467-06049

main90467-06049-J3iAE101,EE100..HB199205-199710

DARK BLUE,TRIM8#

sub90467-06049

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-12220-B0iAE101,EE100..HB199205-199710

SHADOW GRAY,TRIM1#

main64740-12220-J0iAE101,EE100..HB199205-199710

DARK BLUE,TRIM8#

main64740-12230-B0iAE10#,EE100..LB..GEN199205-199710

SHADOW GRAY,TRIM1#

main64740-12230-J0iAE10#,EE100..LB..GEN199205-199710

DARK BLUE,TRIM8#

main64740-12260-B0iAE102..ARL199402-199605

SHADOW GRAY,TRIM1#

64746ACOVER, DECK TRIM SIDE LAMP HOLE

main64746-12090-B0iEE100..STD199205-199505

SHADOW GRAY,TRIM1#

sub64746-12090

main64746-12090-J0iEE100..STD199205-199505

DARK BLUE,TRIM8#

sub64746-12090

64751BRACKET, DECK TRIM SIDE SPEAKER SET, RH

main64757-12010iAE10#,EE100..LB199205

64751BBRACKET, SPEAKER SET, NO.1 RH

main64751-12040iAE101,EE100..HB199205-199710

main64751-12050iAE101,EE100..LB199205

64752BBRACKET, SPEAKER SET, NO.1 LH

main64752-12040iAE101,EE100..HB199205-199710

main64752-12050iAE101,EE100..LB199205

64770DCOVER ASSY, SPARE WHEEL

main64770-12171iAE10#,EE100..LB199405

main64770-12181iEE100..HB199206-199710

main64770-12191iAE101..HB199206-199710

SPARE TIRE=GROUND TIRE

main64770-12191iEE100..STD199205-199206

main64770-12200iAE10#,EE100..LB199205-199405

9011906198

main90119-06198

9018305094

main90183-05094

9046710161

main90467-10161

9046804157

main90468-04157

9356014016

main93560-14016

9356614512

main93566-14512

9356755014

main93567-55014

30 parts on this diagram · 2 diagrams in section
