INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

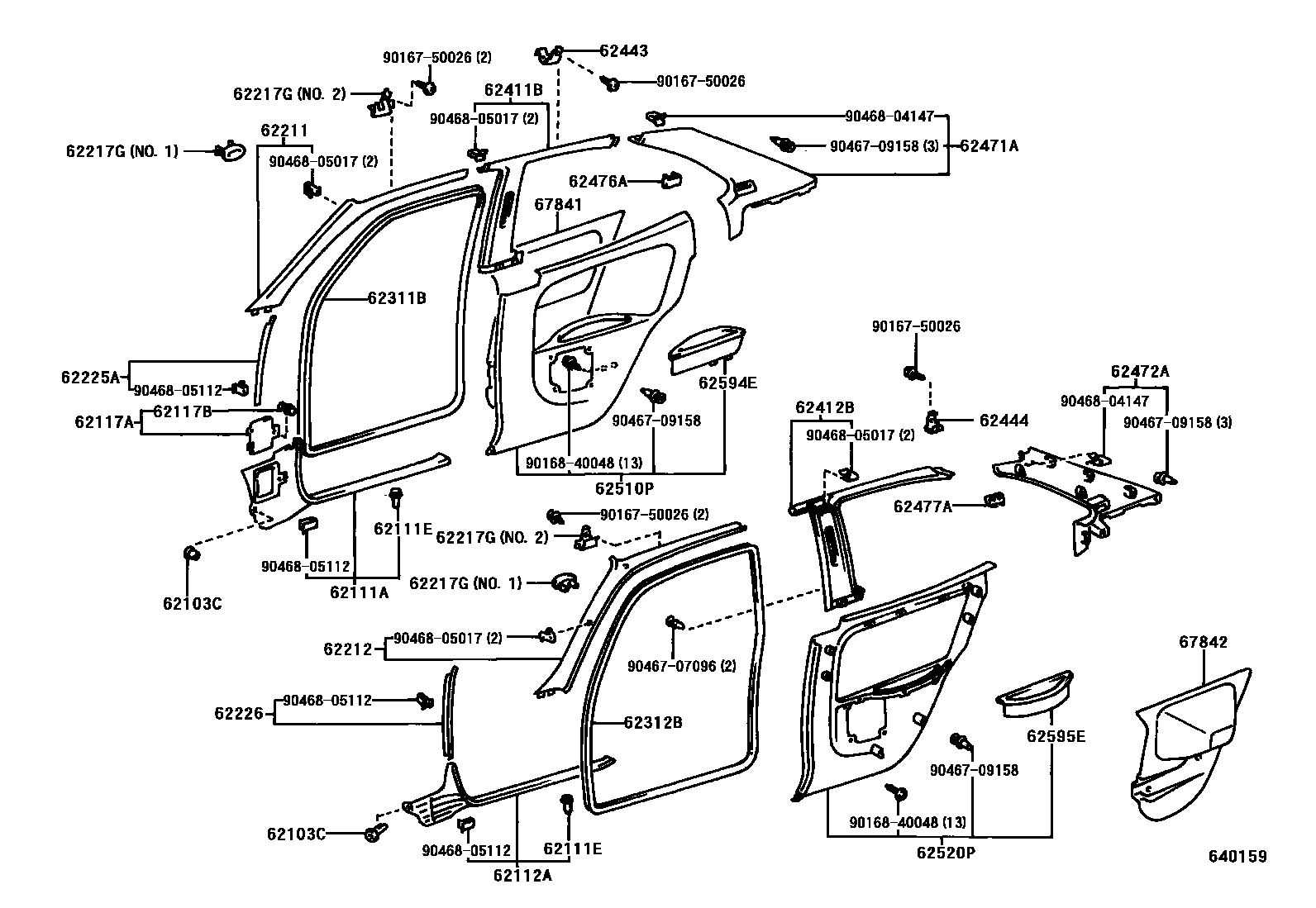

Parts diagram
62103CCLIP, COWL SIDE TRIM BOARD SET
main90467-05050-01i199206-199211
BLACK,TRIM1#,8#
sub90467-05050
main90467-05050-22i199402-199605
BLACK,TRIM1#
sub90467-05050
main90467-05050-22i199211-199710
BLACK,TRIM1#,8#
sub90467-05050
main90467-08160i199205-199207
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-12160-P0i199206-199710
SHADOW GRAY,TRIM1#
sub62101-12160
main62101-12160-W3i199206-199710
DARK BLUE,TRIM8#
sub62101-12160
main62101-12170-P0i199205-199710
SHADOW GRAY,TRIM1#
main62101-12170-W3i199205-199710
DARK BLUE,TRIM8#
main62101-12190-B0i199206-199704
SHADOW GRAY,TRIM1#
sub62101-12190
main62101-12190-J0i199206-199704
DARK BLUE,TRIM8#
sub62101-12190
main62101-12200-B0i199205-199505
SHADOW GRAY,TRIM1#
main62101-12200-J0i199205-199505
DARK BLUE,TRIM8#
main62101-12210-B0i199205-199505
SHADOW GRAY,TRIM1#
main62101-12210-J0i199205-199505
DARK BLUE,TRIM8#
main62101-12220-B0i199205-199605
SHADOW GRAY,TRIM1#
main62101-12220-J0i199205-199605
DARK BLUE,TRIM8#
62111ERETAINER, COWL SIDE TRIM
main67921-32010i199205-199505
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-12160-P0i199206-199710
SHADOW GRAY,TRIM1#
sub62102-12160
main62102-12160-W3i199206-199710
DARK BLUE,TRIM8#
sub62102-12160
main62102-12170-P0i199205-199710
SHADOW GRAY,TRIM1#
main62102-12170-W3i199205-199710
DARK BLUE,TRIM8#
main62102-12190-B0i199206-199704
SHADOW GRAY,TRIM1#
sub62102-12190
main62102-12190-J0i199206-199704
DARK BLUE,TRIM8#
sub62102-12190
main62102-12200-B0i199205-199505
SHADOW GRAY,TRIM1#
main62102-12200-J0i199205-199505
DARK BLUE,TRIM8#
main62102-12210-B0i199205-199505
SHADOW GRAY,TRIM1#
main62102-12210-J0i199205-199505
DARK BLUE,TRIM8#
main62102-12220-B0i199205-199605
SHADOW GRAY,TRIM1#
main62102-12220-J0i199205-199605
DARK BLUE,TRIM8#
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
main62117-12140-P0i199205-199605
SHADOW GRAY,TRIM1#
sub62117-12141
main62117-12140-W3i199205-199605
DARK BLUE,TRIM8#
sub62117-12141
main62117-12141-P0i199605-199710
SHADOW GRAY,TRIM1#
sub62117-12141
main62117-12141-W3i199605-199710
DARK BLUE,TRIM8#
sub62117-12141
main62117-12170-B0i199205-199505
SHADOW GRAY,TRIM1#
sub62117-12170
main62117-12170-J0i199205-199505
DARK BLUE,TRIM8#
sub62117-12170
main62117-12171-B0i199505-199704
SHADOW GRAY,TRIM1#
sub62117-12171
main62117-12171-J0i199505-199704
DARK BLUE,TRIM8#
sub62117-12171
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-08149i199205
62211GARNISH, FRONT PILLAR, RH
main62211-12200-P0i199206-199710
SHADOW GRAY,TRIM1#
sub62211-12200
main62211-12200-W3i199206-199710
DARK BLUE,TRIM8#
sub62211-12200
main62211-12240-P0i199205-199710
SHADOW GRAY,TRIM1#
main62211-12240-W3i199205-199710
DARK BLUE,TRIM8#
main62211-12260-B0i199205-199505
SHADOW GRAY,TRIM1#
main62211-12260-J0i199205-199505
DARK BLUE,TRIM8#
62212GARNISH, FRONT PILLAR, LH
main62212-12200-P0i199206-199710
SHADOW GRAY,TRIM1#
sub62212-12200
main62212-12200-W3i199206-199710
DARK BLUE,TRIM8#
sub62212-12200
main62212-12240-P0i199205-199710
SHADOW GRAY,TRIM1#
main62212-12240-W3i199205-199710
DARK BLUE,TRIM8#
main62212-12260-B0i199205-199505
SHADOW GRAY,TRIM1#
main62212-12260-J0i199205-199505
DARK BLUE,TRIM8#
62217GCLIP, FRONT PILLAR GARNISH
main62217-12010i199205
NO.2
main62217-12020i199205-199505
NO.1
main62217-12030i199205
NO.1
main62217-12040i199205-199505
NO.2
62225AGARNISH, FRONT PILLAR, LOWER RH
main62225-12010-P0i199206-199710
SHADOW GRAY,TRIM1#
sub62225-12010
main62225-12010-W3i199206-199710
DARK BLUE,TRIM8#
sub62225-12010
main62225-12020-P0i199205-199710
SHADOW GRAY,TRIM1#
sub62225-12020
main62225-12020-W3i199205-199710
DARK BLUE,TRIM8#
sub62225-12020
main62225-12040-B0i199205-199505
SHADOW GRAY,TRIM1#
main62225-12040-J0i199205-199505
DARK BLUE,TRIM8#
62226GARNISH, FRONT PILLAR, LOWER LH
main62226-12010-P0i199206-199710
SHADOW GRAY,TRIM1#
sub62226-12010
main62226-12010-W3i199206-199710
DARK BLUE,TRIM8#
sub62226-12010
main62226-12020-P0i199205-199710
SHADOW GRAY,TRIM1#
sub62226-12020
main62226-12020-W3i199205-199710
DARK BLUE,TRIM8#
sub62226-12020
main62226-12040-B0i199205-199505
SHADOW GRAY,TRIM1#
main62226-12040-J0i199205-199505
DARK BLUE,TRIM8#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-12040i199205
main62311-12060i199205-199505
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-12040i199205
main62312-12050i199205-199505
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-12440-P0i199206-199710
SHADOW GRAY,TRIM1#
sub62411-12440
main62411-12440-W3i199206-199710
DARK BLUE,TRIM8#
sub62411-12440
main62411-12460-B0i199205-199505
SHADOW GRAY,TRIM1#
main62411-12460-J0i199205-199505
DARK BLUE,TRIM8#
main62411-12480-B0i199205-199710
SHADOW GRAY,TRIM1#
sub62411-12480
main62411-12480-J0i199205-199710
DARK BLUE,TRIM8#
sub62411-12480
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-12440-P0i199206-199710
SHADOW GRAY,TRIM1#
sub62412-12440
main62412-12440-W3i199206-199710
DARK BLUE,TRIM8#
sub62412-12440
main62412-12460-B0i199205-199505
SHADOW GRAY,TRIM1#
main62412-12460-J0i199205-199505
DARK BLUE,TRIM8#
main62412-12480-B0i199205-199710
SHADOW GRAY,TRIM1#
sub62412-12480
main62412-12480-J0i199205-199710
DARK BLUE,TRIM8#
sub62412-12480
62443JOINT, ROOF SIDE RAIL GARNISH, RH
main62443-12020i199205-199505
62444JOINT, ROOF SIDE RAIL GARNISH, LH
main62444-12020i199205-199505
62471AGARNISH, ROOF SIDE, INNER RH
main62470-12020-B0i199205-199505
SHADOW GRAY,TRIM1#
main62470-12020-J0i199205-199505
DARK BLUE,TRIM8#
main62470-12040-B0i199206-199710
SHADOW GRAY,TRIM1#
main62470-12040-J0i199206-199710
DARK BLUE,TRIM8#
main62470-12050-B0i199205-199710
SHADOW GRAY,TRIM1#
sub62470-12050
main62470-12050-J0i199205-199710
DARK BLUE,TRIM8#
sub62470-12050
62472AGARNISH, ROOF SIDE, INNER LH
main62480-12020-B0i199205-199505
SHADOW GRAY,TRIM1#
main62480-12020-J0i199205-199505
DARK BLUE,TRIM8#
main62480-12040-B0i199206-199710
SHADOW GRAY,TRIM1#
main62480-12040-J0i199206-199710
DARK BLUE,TRIM8#
main62480-12050-B0i199205-199710
SHADOW GRAY,TRIM1#
sub62480-12050
main62480-12050-J0i199206-199710
DARK BLUE,TRIM8#
sub62480-12050
62476ACAP, ROOF SIDE INNER GARNISH, RH
main62476-12020-B1i199205-199505
SHADOW GRAY,TRIM1#
sub62476-12020
main62476-12020-J1i199205-199505
DARK BLUE,TRIM8#
sub62476-12020
62477ACAP, ROOF SIDE INNER GARNISH, LH
main62477-12010-B1i199205-199505
SHADOW GRAY,TRIM1#
sub62477-12010
main62477-12010-J1i199205-199505
DARK BLUE,TRIM8#
sub62477-12010
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
main62510-1A650-B0i199205-199505
SHADOW GRAY,TRIM1#
sub62511-12290
sub62594-12080
sub75307-12030
sub90168-40048
sub90467-09158
main62510-1A650-J0i199205-199505
DARK BLUE,TRIM8#
sub62511-12290
sub62594-12080
sub75307-12030
sub90168-40048
sub90467-09158
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
main62520-1A630-B0i199205-199505
SHADOW GRAY,TRIM1#
sub62512-12270
sub62595-12030
sub75308-12040
sub90168-40048
sub90467-09158
main62520-1A630-J0i199205-199505
DARK BLUE,TRIM8#
sub62512-12270
sub62595-12030
sub75308-12040
sub90168-40048
sub90467-09158
62594EPOCKET, QUARTER TRIM, RH
main62594-12080-B0i199205-199505
SHADOW GRAY,TRIM1#
main62594-12080-J0i199205-199505
DARK BLUE,TRIM8#
62595EPOCKET, QUARTER TRIM, LH
main62595-12030-B0i199205-199505
SHADOW GRAY,TRIM1#
main62595-12030-J0i199205-199505
DARK BLUE,TRIM8#
67841COVER, QUARTER SERVICE HOLE, NO.1 RH
main67841-12260i199205-199505
67842COVER, QUARTER SERVICE HOLE, NO.1 LH
main67842-12090i199205-199505
9016750026
main90167-50026
9016840048
main90168-40048
9046707096
main90467-07096
9046709158
main90467-09158
9046804147
main90468-04147
9046805017
main90468-05017
9046805112
main90468-05112

34 parts on this diagram · 3 diagrams in section
