INSTRUMENT PANEL & GLOVE COMPARTMENT

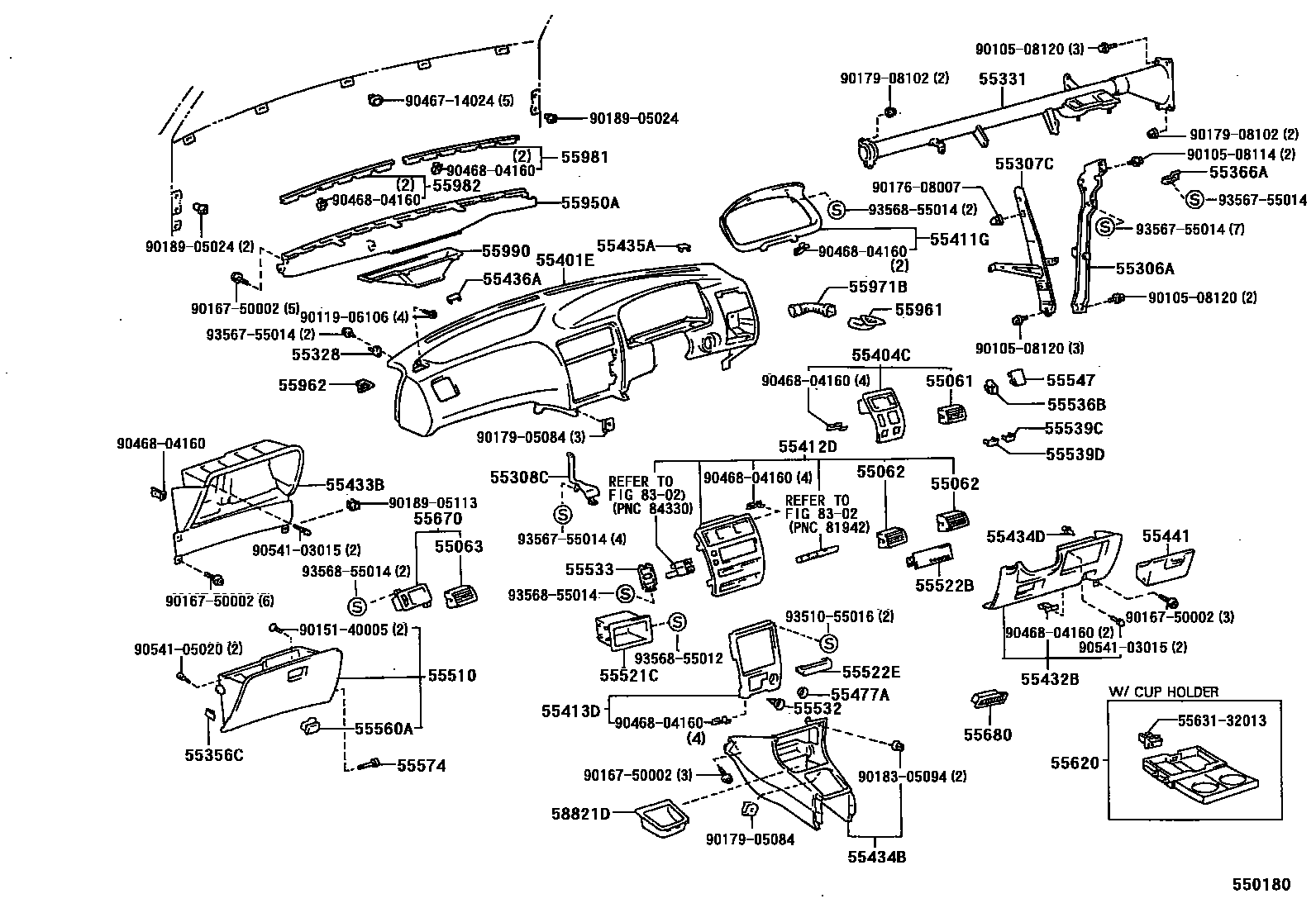

Parts diagram
55061REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1
main55061-12150i199205
main55061-12170i199205-199704
55062REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2
main55062-12060i199205-199710
main55062-12080i199205-199704
55063REGISTER SUB-ASSY, INSTRUMENT, NO.3
main55061-12180-B0i199205-199704
SHADOW GRAY,TRIM1#
sub55061-12170
main55061-12180-J0i199205-199704
DARK BLUE,TRIM8#
sub55061-12170
main55063-12050-B0i199205-199710
SHADOW GRAY,TRIM1#
sub55063-12050
main55063-12050-J0i199205-199710
DARK BLUE,TRIM8#
sub55063-12050
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-12150i199205-199305
sub55306-12200
main55306-12180i199205-199305
sub55306-12220
sub85999-12330
main55306-12200i199305
main55306-12210i199608-199704
W(*80)
main55306-12220i199305-199704
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
main55307-12200i199205-199610
sub55307-12201
main55307-12201i199610
main55307-12220i199608-199704
W(*80)
main55307-12230i199205-199704
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
main55308-12180i199205
main55308-12200i199608-199704
W(*80)
main55308-12210i199205-199704
55328PIN, INSTRUMENT PANEL, NO.1
main55328-12060i199205
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-12240i199205-199705
sub55330-12241
main55330-12241i199705
main55330-12260i199205-199505
sub55330-12261
main55330-12261i199505-199704
main55330-12291i199608-199704
W(*80)
55356CCUSHION, INSTRUMENT PANEL, NO.2
main55356-12060i199205-199301
NO.2
main55356-12060i199205-199305
NO.1
55366ABRACKET, RADIO MOUNTING, NO.1
main55366-12040i199205
main55366-12050i199205-199704
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
main55401-12300-P0i199205-199311
SHADOW GRAY,TRIM1#
sub55401-12370
sub55404-12610
sub55404-12620
main55401-12300-W3i199205-199311
DARK BLUE,TRIM8#
sub55401-12370
sub55404-12610
sub55404-12620
main55401-12340-B0i199205-199311
SHADOW GRAY,TRIM1#
sub55401-12400
sub55404-12630
sub55404-12640
main55401-12340-J0i199205-199311
DARK BLUE,TRIM8#
sub55401-12400
sub55404-12630
sub55404-12640
main55401-12370-B0i199311-199503
SHADOW GRAY,TRIM1#
sub55401-12460
main55401-12370-J0i199311-199503
DARK BLUE,TRIM8#
sub55401-12460
main55401-12400-B0i199311-199503
SHADOW GRAY,TRIM1#
sub55401-12450
main55401-12400-J0i199311-199503
DARK BLUE,TRIM8#
sub55401-12450
main55401-12410-B0i199608-199704
W(*80),SHADOW GRAY,TRIM1#
main55401-12410-J0i199608-199704
W(*80),DARK BLUE,TRIM8#
main55401-12450-B0i199503-199704
SHADOW GRAY,TRIM1#
main55401-12450-J0i199503-199704
DARK BLUE,TRIM8#
main55401-12460-B0i199503-199710
SHADOW GRAY,TRIM1#
sub55401-12381
main55401-12460-J0i199503-199710
DARK BLUE,TRIM8#
sub55401-12381
55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
main55404-12570i199205-199311
sub55404-12610
main55404-12590i199205-199311
sub55404-12630
main55404-12610i199311
main55404-12630i199311-199704
55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1
main55411-12870i199205
main55411-12890i199205-199704
55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER
main55405-12480i199205-199305
W(REAR WINDOW DEFOGGER & HEATER & BOOST VENTILATOR)
main55405-12480i199205-199305
W(HEATER & BOOST VENTILATOR)
main55405-12510i199205-199305
W(BOOST VENTILATOR)
main55405-12510i199205-199305
W(REAR WINDOW DEFOGGER & BOOST VENTILATOR)
main55405-12530i199205-199308
W(REAR WINDOW DEFOGGER)
main55405-12540i199205-199305
W(HEATER & BOOST VENTILATOR)
main55405-12550i199205-199305
W(BOOST VENTILATOR)
main55405-12560i199205-199308
main55405-12570i199208-199301
NEW ZEALAND SPEC & CKD SPEC
sub55405-12790
main55405-12580i199205-199605
W(REAR WINDOW DEFOGGER & HEATER & BOOST VENTILATOR)
sub55405-12690
main55405-12580i199205-199605
W(HEATER & BOOST VENTILATOR)
sub55405-12690
main55405-12610i199205-199605
W(HEATER & BOOST VENTILATOR)
sub55405-12580
main55405-12620i199205-199308
W(REAR WINDOW DEFOGGER)
main55405-12630i199205-199308
sub55405-12620
main55405-12640i199205-199308
W(BOOST VENTILATOR)
sub55405-12650
main55405-12640i199308-199605
sub55405-12650
main55405-12650i199308-199605
W(REAR WINDOW DEFOGGER)
main55405-12650i199205-199308
W(BOOST VENTILATOR)
main55405-12650i199205-199308
W(REAR WINDOW DEFOGGER & BOOST VENTILATOR)
main55405-12660i199208-199305
W(HEATER & BOOST VENTILATOR & AIR CONDITIONER)
main55405-12660i199208-199305
W(REAR WINDOW DEFOGGER & HEATER & BOOST VENTILATOR & AIR CONDITIONER)
main55405-12660i199205-199208
W(REAR WINDOW DEFOGGER & AIR CONDITIONER)
main55405-12660i199205-199208
W(AIR CONDITIONER)
main55405-12680i199301-199305
NEW ZEALAND SPEC & CKD SPEC
sub55405-12790
main55405-12700i199305-199605
W(HEATER & BOOST VENTILATOR)
main55405-12700i199305-199605
W(REAR WINDOW DEFOGGER & HEATER & BOOST VENTILATOR)
main55405-12700i199402-199605
main55405-12710i199305-199605
W(HEATER & BOOST VENTILATOR)
main55405-12720i199305-199605
W(REAR WINDOW DEFOGGER & HEATER & BOOST VENTILATOR & AIR CONDITIONER)
main55405-12720i199305-199605
W(HEATER & BOOST VENTILATOR & AIR CONDITIONER)
main55405-12730i199308-199605
W(REAR WINDOW DEFOGGER)
main55405-12730i199305-199308
W(REAR WINDOW DEFOGGER & BOOST VENTILATOR)
main55405-12730i199305-199308
W(BOOST VENTILATOR)
main55405-12740i199308-199605
main55405-12740i199305-199308
W(BOOST VENTILATOR)
main55405-12760i199305-199605
NEW ZEALAND SPEC & CKD SPEC
main55405-12760i199505-199605
NEW ZEALAND SPEC
main55405-12770i199605
W(HEATER & BOOST VENTILATOR)
main55405-12770i199605-199710
W(REAR WINDOW DEFOGGER & HEATER & BOOST VENTILATOR)
main55405-12790i199605-199710
NEW ZEALAND SPEC & CKD SPEC
main55405-12790i199605-199710
NEW ZEALAND SPEC
main55405-12810i199605
main55405-12810i199605-199710
W(REAR WINDOW DEFOGGER)
main55405-12820i199605-199710
W(HEATER & BOOST VENTILATOR)
main55405-12830i199605-199710
main55405-12840i199605
W(HEATER & BOOST VENTILATOR & AIR CONDITIONER)
main55405-12840i199605-199710
W(REAR WINDOW DEFOGGER & HEATER & BOOST VENTILATOR & AIR CONDITIONER)
main55405-12850i199605-199704
W(REAR WINDOW DEFOGGER & HEATER & BOOST VENTILATOR)
sub55405-12860
main55405-12880i199605-199704
W(HEATER & BOOST VENTILATOR)
main55405-1A010i199605-199704
W(REAR WINDOW DEFOGGER)
main55405-1A020i199605-199704
sub55405-12690
55413DPANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER
main55413-12420i199205
main55413-12430i199205-199704
55432BPANEL, INSTRUMENT PANEL FINISH, LOWER
main55045-12180-B0i199608-199704
W(*80),SHADOW GRAY,TRIM1#
main55045-12180-J0i199608-199704
W(*80),DARK BLUE,TRIM8#
main55432-12310-B0i199205-199710
SHADOW GRAY,TRIM1#
sub55432-12430
sub55432-12310
main55432-12310-J0i199205-199710
DARK BLUE,TRIM8#
sub55432-12430
sub55432-12310
main55432-12320-P0i199402-199605
SHADOW GRAY,TRIM1#
main55432-12360-B0i199205-199704
SHADOW GRAY,TRIM1#
main55432-12360-J0i199205-199704
DARK BLUE,TRIM8#
55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
main55433-12090-B0i199205-199710
SHADOW GRAY,TRIM1#
sub55433-12090
main55433-12090-J0i199205-199710
DARK BLUE,TRIM8#
sub55433-12090
main55433-12120-B0i199205-199704
SHADOW GRAY,TRIM1#
sub55433-12120
main55433-12120-J0i199205-199704
DARK BLUE,TRIM8#
sub55433-12120
main55433-12160-B0i199608-199704
W(*80),SHADOW GRAY,TRIM1#
main55433-12160-J0i199608-199704
W(*80),DARK BLUE,TRIM8#
55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
main55434-12100-P0i199205-199401
SHADOW GRAY,TRIM1#
sub55434-12101
main55434-12100-W3i199205-199401
DARK BLUE,TRIM8#
sub55434-12101
main55434-12101-P0i199401-199710
SHADOW GRAY,TRIM1#
sub55434-12101
main55434-12101-W3i199401-199710
DARK BLUE,TRIM8#
sub55434-12101
main55434-12121-B0i199608-199704
W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#
main55434-12121-J0i199608-199704
W(*80,DRIVER SIDE & PASSENGER SIDE),DARK BLUE,TRIM8#
main55434-12130-B0i199205-199401
SHADOW GRAY,TRIM1#
sub55434-12131
main55434-12130-J0i199205-199401
DARK BLUE,TRIM8#
sub55434-12131
main55434-12131-B0i199401-199704
SHADOW GRAY,TRIM1#
main55434-12131-J0i199401-199704
DARK BLUE,TRIM8#
55434DCLIP, INSTRUMENT PANEL FINISH, LOWER CENTER
main90467-07073-C0i199402-199605
BLACK,TRIM1#
sub90467-07073
main90467-07073-C0i199205-199710
BLACK,TRIM1#,8#
sub90467-07073
55435APANEL, INSTRUMENT PANEL FINISH, END RH
main55435-12010-C0i199402-199605
BLACK,TRIM1#
sub55435-12010
main55435-12010-C0i199310-199710
BLACK,TRIM1#,8#
sub55435-12010
main55435-12010-P0i199205-199310
SHADOW GRAY,TRIM1#
sub55435-12010
main55435-12010-W3i199205-199310
DARK BLUE,TRIM8#
sub55435-12010
55436APANEL, INSTRUMENT PANEL FINISH, END LH
main55436-12020-C0i199310-199710
BLACK,TRIM1#,8#
sub55436-12020
main55436-12020-C0i199402-199605
BLACK,TRIM1#
sub55436-12020
main55436-12020-P0i199205-199310
SHADOW GRAY,TRIM1#
sub55436-12020
main55436-12020-W3i199205-199310
DARK BLUE,TRIM8#
sub55436-12020
55441BOX, INSTRUMENT PANEL
main55440-12030-B0i199205-199710
SHADOW GRAY,TRIM1#
sub55440-12030
main55440-12030-J0i199205-199710
DARK BLUE,TRIM8#
sub55440-12030
main55440-12070-B0i199205-199704
SHADOW GRAY,TRIM1#
sub55440-12070
main55440-12070-J0i199205-199704
DARK BLUE,TRIM8#
sub55440-12070
55477ABEZEL, CIGARETTE LIGHTER HOLE
main55477-12100i199205
55510DOOR ASSY, GLOVE COMPARTMENT
main55550-12310-B0i199205-199308
SHADOW GRAY,TRIM1#
sub55550-12310
main55550-12310-B1i199308-199710
SHADOW GRAY,TRIM1#
sub55550-12310
main55550-12310-J0i199205-199308
DARK BLUE,TRIM8#
sub55550-12310
main55550-12310-J1i199308-199710
DARK BLUE,TRIM8#
sub55550-12310
main55550-12340-B0i199205-199308
SHADOW GRAY,TRIM1#
sub55550-12340
main55550-12340-B1i199308-199704
SHADOW GRAY,TRIM1#
sub55550-12340
main55550-12340-J0i199205-199308
DARK BLUE,TRIM8#
sub55550-12340
main55550-12340-J1i199308-199704
DARK BLUE,TRIM8#
sub55550-12340
main55550-12350-B1i199608-199704
W(*80),SHADOW GRAY,TRIM1#
sub55550-12350
main55550-12350-J1i199608-199704
W(*80),DARK BLUE,TRIM8#
sub55550-12350
55521CCOVER, STEREO OPENING
main55521-16040i199205-199710
2 DIN BOX
sub55521-36020
55522BCOVER, RADIO TUNER OPENING
main55522-12120i199505-199710
NEW ZEALAND SPEC
sub55522-20060
main55522-32010i199205
sub55522-20070
55522ECOVER, CUP HOLDER OPENING
main55522-12110i199205
55532COVER, CIGAR LIGHTER HOLE
main55532-12030i199205-199505
55533COVER, AUTO CLOCK HOLE
main55533-12130i199205
55536BCOVER, LIGHT CONTROL SWITCH HOLE
main55536-12010i199205
55539CCOVER, SPARE SWITCH HOLE
main55539-12110i199205
55539DCOVER, SPARE SWITCH HOLE
main55539-12110i199205
55547COVER, REMOTE CONTROL MIRROR HOLE
main55547-12020i199205
55560ALOCK ASSY, GLOVE COMPARTMENT DOOR
main55560-12080-03i199205-199208
SHADOW GRAY,TRIM1#
sub55560-12080
main55560-12080-04i199205-199710
DARK BLUE,TRIM8#
sub55560-12080
main55560-12080-P0i199208-199710
SHADOW GRAY,TRIM1#
sub55560-12080
main55560-12090-B0i199605-199704
W(*80),SHADOW GRAY,TRIM1#
sub55560-12090
main55560-12090-J0i199605-199704
W(*80),DARK BLUE,TRIM8#
sub55560-12090
55574SHAFT, GLOVE COMPARTMENT DOOR HINGE
main55574-10010i199205
55620HOLDER ASSY, INSTRUMENT PANEL CUP
main55620-12020i199402-199405
main55620-12050i199405-199605
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
main55670-12150-B0i199407-199710
SHADOW GRAY,TRIM1#
sub55670-12150
main55670-12150-P0i199205-199407
SHADOW GRAY,TRIM1#
sub55670-12150
main55670-12150-W3i199205-199710
DARK BLUE,TRIM8#
sub55670-12150
main55670-12180-B0i199205-199704
SHADOW GRAY,TRIM1#
sub55670-12180
main55670-12180-J0i199205-199704
DARK BLUE,TRIM8#
sub55670-12180
main55670-12200-B0i199608-199704
W(*80),SHADOW GRAY,TRIM1#
sub55670-12200
main55670-12200-J0i199608-199704
W(*80),DARK BLUE,TRIM8#
sub55670-12200
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
main55680-12050i199302-199308
main55680-12050-P0i199205-199302
SHADOW GRAY,TRIM1#
sub55680-12050
main55680-12050-W3i199205-199302
DARK BLUE,TRIM8#
sub55680-12050
55950ANOZZLE ASSY, DEFROSTER
main55950-12140i199205-199208
sub55950-12170
main55950-12160i199205-199208
sub55950-12180
main55950-12170i199208
main55950-12180i199208-199704
55961NOZZLE, SIDE DEFROSTER, NO.1
main55961-12180-P0i199205-199710
SHADOW GRAY,TRIM1#
sub55961-12180
main55961-12180-W3i199205-199710
DARK BLUE,TRIM8#
sub55961-12180
main55961-12200-B0i199205-199704
SHADOW GRAY,TRIM1#
sub55961-12200
main55961-12200-J0i199205-199704
DARK BLUE,TRIM8#
sub55961-12200
55962NOZZLE, SIDE DEFROSTER, NO.2
main55962-12160-P0i199205-199710
SHADOW GRAY,TRIM1#
sub55962-12160
main55962-12160-W3i199205-199710
DARK BLUE,TRIM8#
sub55962-12160
main55962-12180-B0i199205-199704
SHADOW GRAY,TRIM1#
sub55962-12180
main55962-12180-J0i199205-199704
DARK BLUE,TRIM8#
sub55962-12180
55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1
main55971-12110i199205
55981GARNISH, DEFROSTER NOZZLE, NO.1
main55981-12050i199205
main55981-12070i199205-199704
55982GARNISH, DEFROSTER NOZZLE, NO.2
main55982-12050i199205
main55982-12070i199205-199704
55990NOZZLE ASSY, CENTER DEFROSTER
main55990-12010i199205
main55990-12020i199205-199704
58821DPANEL, CONSOLE, UPPER FRONT
main58821-12050-P0i199205-199710
SHADOW GRAY,TRIM1#
sub58821-12050
main58821-12050-W3i199205-199710
DARK BLUE,TRIM8#
sub58821-12050
main58821-12070-B0i199205-199704
SHADOW GRAY,TRIM1#
sub58821-12070
main58821-12070-J0i199205-199704
DARK BLUE,TRIM8#
sub58821-12070
8302
5563132013ARM,UNDER TRAY DOOR CHECK
main55631-32013
9010508114
main90105-08114
9010508120
main90105-08120
9011906106
main90119-06106
9015140005
main90151-40005
9016750002
main90167-50002
9017608007
main90176-08007
9017905084
main90179-05084
9017908102
main90179-08102
9018305094
main90183-05094
9018905024
main90189-05024
9018905113
main90189-05113
9046714024
main90467-14024
9046804160
main90468-04160
9054103015
main90541-03015
9054105020
main90541-05020
9351055016
main93510-55016
9356755014
main93567-55014
9356855012
main93568-55012
9356855014
main93568-55014

67 parts on this diagram · 3 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
