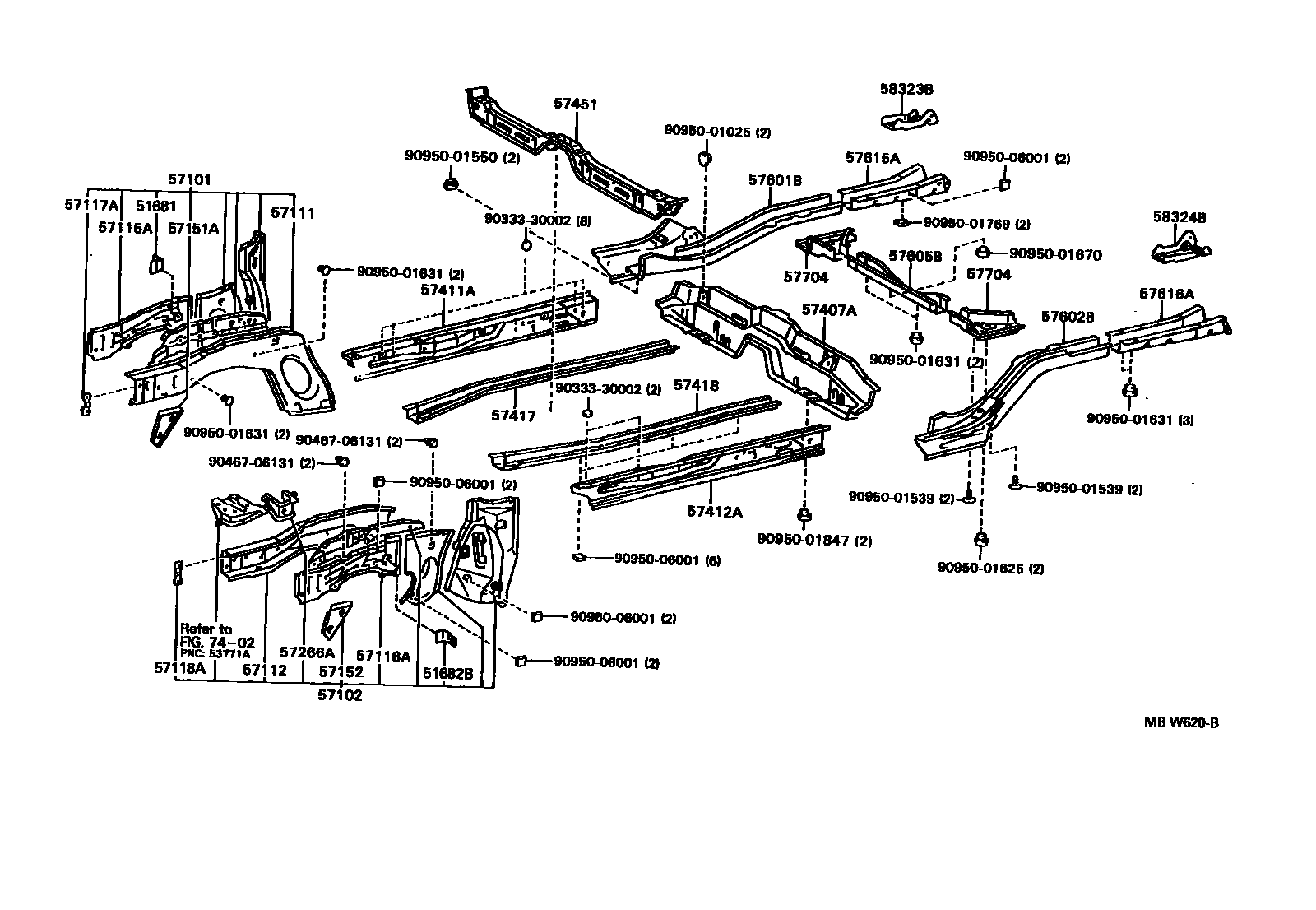

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

51681BRACKET, FLEXIBLE HOSE

main51681-12050iAE10#,EE100199205

51682BBRACKET, FLEXIBLE HOSE, LH

main51682-12060iAE10#,EE100199205

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-12440iEE100..RHD199205-199505

main57101-12441iEE100..RHD199505-199710

main57101-12450iAE10#..RHD199205-199505

main57101-12451iAE10#..RHD199505-199704

main57101-12480iEE100..LHD199205-199505

main57101-12481iEE100..LHD199505-199704

main57101-12490iAE101..LHD199205-199505

main57101-12491iAE101..LHD199505-199704

main57101-12830iAE102199704-199710

main57101-12948iAE101199704

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-12410iAE10#,EE100..RHD199205-199505

main57102-12411iAE10#,EE100..RHD199505-199704

main57102-12412iAE102199704-199710

main57102-12450iAE101,EE100..LHD199205-199505

main57102-12451iAE101,EE100..LHD199505-199704

57111MEMBER, FRONT SIDE, RH

main57111-12200iAE10#,EE100199205-199505

main57111-12201iAE10#,EE100199505

57112MEMBER, FRONT SIDE, LH

main57112-12140iAE10#,EE100199205-199505

main57112-12141iAE10#,EE100199505-199701

main57112-12142iAE10#,EE100199701

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12060iAE10#,EE100199205

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12060iAE10#,EE100199205

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-12110iAE10#,EE100199205

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57117-12110iAE10#,EE100199205

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-12100iAE10#,EE100199205-199505

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-12070iAE10#,EE100199205-199505

57266ABRACKET, ENGINE MOUNTING, LH

main57208-12100iAE10#,EE100199205-199505

main57208-12120iAE10#,EE100199505-199701

main57208-12121iAE10#,EE100199701-199710

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-12040iAE10#,EE100199205-199710

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-12460iAE10#,EE100..5D199205-199505

main57401-12480iEE100..STD199205-199505

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-12460iAE10#,EE100..5D199205-199505

main57402-12480iEE100..STD199205-199505

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-12100iEE100199704-199710

main57417-13010iAE10#199704

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-12060iAE10#,EE100199205-199704

main57418-13010iAE10#199704

57451MEMBER, FRONT FLOOR CROSS

main57451-12130iAE10#,EE100199205-199505

main57451-12131iAE10#,EE100199505

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12927iAE101,EE100..LB199205-199305

main57601-12931iAE10#,EE100..LB199305-199505

main57601-13901iAE101,EE100..LB199505-199506

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-12923iAE101,EE100..HB..5D199206

main57601-12925iEE100..STD199205-199505

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12926iAE101,EE100..LB199505-199710

main57602-12929iAE101,EE100..LB199205-199305

main57602-12934iAE101..GLI199506-199710

NEW ZEALAND SPEC

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-12926iAE101,EE100..HB..5D199206

main57602-12927iEE100..STD199205-199505

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-12130iAE101,EE100..LB199205-199305

main57605-12150iAE10#,EE100..LB199305-199710

main57605-12170iAE101,EE100..HB199205-199710

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-12120iAE101,EE100..HB199205

main57615-12901iAE10#,EE100..LB199205-199505

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-12130iAE101,EE100..HB199205-199710

main57616-12901iAE102..ARL199505-199506

main57616-12905iAE10#,EE100..LB..GEN199505-199506

57704SUPPORT SUB-ASSY, REAR SUSPENSION SPRING

main57695-12030iAE10#,EE100199305-199710

RH

main57696-12030iAE10#,EE100199305-199710

LH

main57703-12060iAE101,EE100199205-199305

RH

main57704-12080iAE101,EE100199205-199305

LH

58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH

main58323-12120iAE101,EE100..HB199205

58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH

main58324-12080iAE101,EE100..HB199205

7402BATTERY CARRIER

→ Go to FIG 74-02

9033330002

main90333-30002

9046706131

main90467-06131

9095001025

main90950-01025

9095001539

main90950-01539

9095001550

main90950-01550

9095001625

main90950-01625

9095001631

main90950-01631

9095001670

main90950-01670

9095001769

main90950-01769

9095001847

main90950-01847

9095006001

main90950-06001

41 parts on this diagram · 4 diagrams in section
