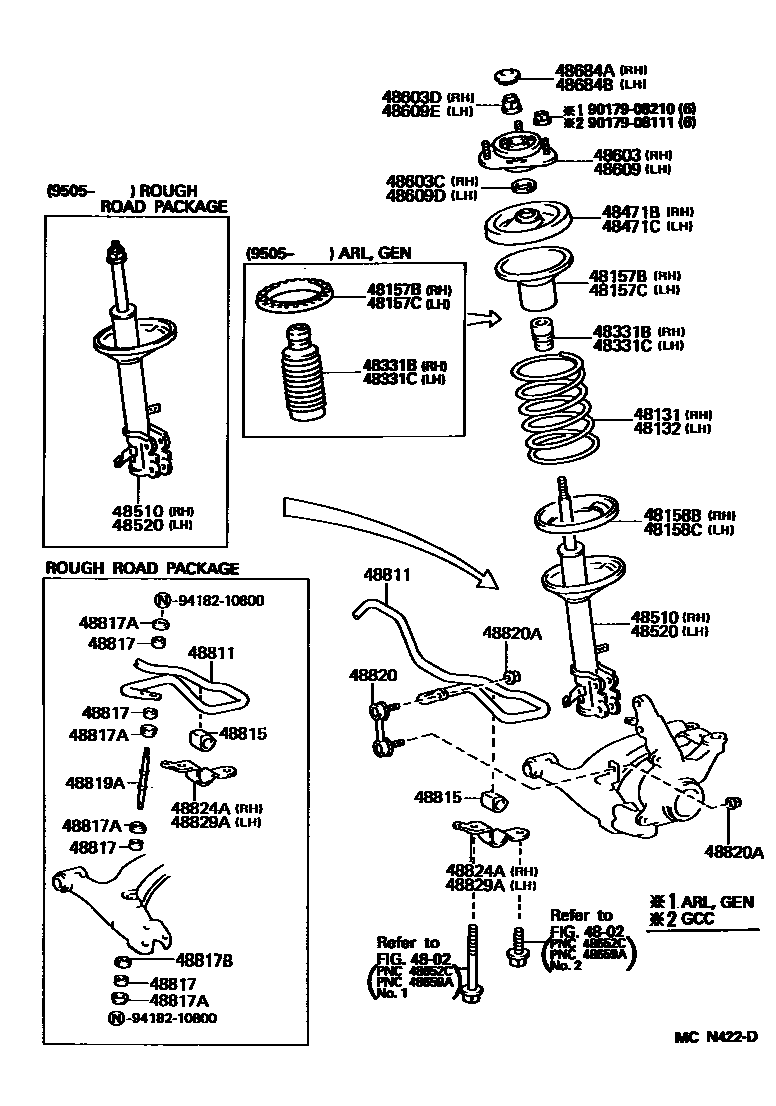

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-1K380iAE101..LHD..GEN199205-199605

W(STABILIZER BER BRACKET)

main48131-1K380iEE100..3FC199206-199505

main48131-1K400iAE101..4FC..GEN199205-199710

W(STABILIZER BER BRACKET)

main48131-1K530iEE100..5F..STD199205-199505

NEW ZEALAND SPEC & W(STABILIZER BER BRACKET)

main48131-1K530iEE100..RHD..5F199205-199710

main48131-1K540iAE101..RHD..5F199205

W(STABILIZER BER BRACKET)

main48131-1K600iAE101..LHD..5F199205-199704

main48131-1K620iAE101..RHD..5F;AE101..4FC..GCC199205

main48131-1K640iAE101..4FC..GEN199205-199710

main48131-1K700iEE100..LHD199205-199704

main48131-1K790iAE102..5F..GEN199505-199710

main48131-1K810iAE102..4FC..GEN199505-199710

main48131-1K890iAE102..4FC..ARL199505-199605

main48131-1L200iAE102..5F..ARL199402-199605

main48131-1L270iEE100..GCC199207-199704

ROUGH RODE PACKAGE 1

main48131-1L270iEE100..LHD..GEN199205-199704

ROUGH RODE PACKAGE

main48131-1L290iEE100..RHD..5F;AE101..LHD..GEN199205-199710

ROUGH RODE PACKAGE

main48131-1L320iEE100..3FC;AE101..RHD..5F199205

ROUGH RODE PACKAGE

main48131-1L320iAE101..5F..GCC199207-199704

ROUGH RODE PACKAGE 1

main48131-1L360iAE101..4FC..GCC199207-199704

ROUGH RODE PACKAGE 1

main48131-1L360iAE101..4FC..GEN199205-199710

ROUGH RODE PACKAGE

main48131-1L440iEE100..RHD..5F..XL199206-199710

NEW ZEALAND SPEC & W(STABILIZER BER BRACKET)

48132SPRING, FRONT COIL, LH

main48131-1K380iAE101..RHD..5F199205

W(STABILIZER BER BRACKET)

main48131-1K400iAE102..5F..GEN199505-199710

main48131-1K530iEE100..3FC,4F;EE100..LHD..XL199205-199704

main48131-1K540iAE101..LHD..GEN;AE101..4FC..GEN199205-199710

W(STABILIZER BER BRACKET)

main48131-1K600iAE101..RHD..5F199205

main48131-1K620iAE101..LHD..5F;AE101..4FC..GEN199205-199710

main48131-1K640iAE101..4FC..GCC199207-199704

main48131-1K700iEE100..RHD..5F199205-199710

main48131-1K700iEE100..5F..STD199205-199505

NEW ZEALAND SPEC & W(STABILIZER BER BRACKET)

main48131-1K790iAE102..4FC..GEN199505-199710

main48131-1K870iAE102..5F..ARL199402-199605

main48131-1L200iAE102..4FC..ARL199402-199605

main48131-1L270iEE100..RHD..5F199205-199710

ROUGH RODE PACKAGE

main48131-1L290iEE100..3FC,4F;AE101..RHD..5F;EE100..LHD..XL..GEN199205

ROUGH RODE PACKAGE

main48131-1L290iEE100..GCC199207-199704

ROUGH RODE PACKAGE 1

main48131-1L320iAE101..LHD..GEN199205-199605

ROUGH RODE PACKAGE

main48131-1L340iAE101..5F..GCC199207-199704

ROUGH RODE PACKAGE 1

main48131-1L340iAE101..4FC..GEN199205-199710

ROUGH RODE PACKAGE

main48131-1L370iAE101..4FC..GCC199207-199704

ROUGH RODE PACKAGE 1

main48131-1L430iEE100..RHD..5F..XL199206-199710

NEW ZEALAND SPEC & W(STABILIZER BER BRACKET)

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-12060iAE101,EE100..GCC199205-199508

main48157-12070iAE10#,EE100..ARL,GEN199505-199508

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-12060iAE101,EE100..GCC199205-199508

main48157-12070iAE10#,EE100199505-199508

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-12030iAE10#,EE100199205

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-12030iAE10#,EE100199205

48331BBUMPER, FRONT SPRING, RH

main48331-12120iAE101,EE100..GCC199205-199508

main48331-12130iAE101..GL;EE100..3FC,4F;EE100..LHD..XL..GEN199205-199505

ROUGH RODE PACKAGE OR NEW ZEALAND SPEC

main48331-12130iAE101..GL;EE100..3FC,4F;EE100..LHD..XL..GEN199205-199505

ROUGH RODE PACKAGE

main48331-12130iAE102199402-199505

main48331-12130iAE101,EE100..GCC199207-199508

ROUGH RODE PACKAGE 1

main48331-12140iAE101,EE100..GEN199505-199508

main48331-12150iAE102199505-199710

ROUGH RODE PACKAGE OR NEW ZEALAND SPEC

main48331-12150iAE101..GL;EE100..LHD..GEN199505

ROUGH RODE PACKAGE

main48331-12150iAE101,EE100..GCC199508-199704

ROUGH RODE PACKAGE 1

48331CBUMPER, FRONT SPRING, LH

main48331-12120iAE101,EE100199205-199508

main48331-12130iAE102199402-199505

main48331-12130iAE101..GL;EE100..3FC,4F;EE100..LHD..XL..GEN199205-199505

ROUGH RODE PACKAGE

main48331-12130iAE101..GL;EE100..3FC,4F;EE100..LHD..XL..GEN199205-199505

ROUGH RODE PACKAGE OR NEW ZEALAND SPEC

main48331-12130iAE101,EE100..GCC199207-199508

ROUGH RODE PACKAGE 1

main48331-12140iAE101,EE100..GEN199505-199508

main48331-12150iAE102199505-199710

ROUGH RODE PACKAGE OR NEW ZEALAND SPEC

main48331-12150iAE101..GL;EE100..LHD..GEN199505

ROUGH RODE PACKAGE

main48331-12150iAE101,EE100..GCC199508-199704

ROUGH RODE PACKAGE 1

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-01020iAE10#,EE100..ARL,GEN199505-199508

main48044-01020iAE10#,EE100199508

(L)

main48044-12090iAE10#,EE100199205

(J)

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-01020iAE10#,EE100..ARL,GEN199505-199508

main48044-01020iAE10#,EE100199508

(L)

main48044-12090iAE10#,EE100199205

(J)

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-12750iAE101,EE100199205

main48510-12790iAE101,EE100..GEN199205-199505

ROUGH RODE PACKAGE

sub48510-19475

main48510-12790iAE101,EE100..GCC199207-199505

ROUGH RODE PACKAGE 1

sub48510-19475

main48510-12850iAE102..ARL199505-199605

sub48510-87687

sub48331-12150

main48510-19475iAE101,EE100..GCC199505-199704

ROUGH RODE PACKAGE 1

sub48510-80222

main48510-19475iAE101,EE100..GEN199505

ROUGH RODE PACKAGE

sub48510-80222

main48510-1A010iAE101,EE100..RHD..(4FC,5F)..(GLI,STD,XL,XLI)199205-199710

NEW ZEALAND SPEC

sub48510-80232

main48510-1A010iAE102..GEN199505-199710

sub48510-80232

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-12630iAE101,EE100199205

main48520-12670iAE101,EE100..GCC199207-199505

ROUGH RODE PACKAGE 1

sub48520-19195

main48520-12670iAE101,EE100..GEN199205-199505

ROUGH RODE PACKAGE

sub48520-19195

main48520-12720iAE102..ARL199505-199605

sub48520-49225

sub48331-12150

main48520-12770iAE102..GEN199505-199710

sub48520-80055

main48520-12770iAE101,EE100..RHD..(4FC,5F)..(GLI,STD,XL,XLI)199205-199710

NEW ZEALAND SPEC

sub48520-80055

main48520-19195iAE101,EE100..GEN199505

ROUGH RODE PACKAGE

sub48520-80048

main48520-19195iAE101,EE100..GCC199505-199704

ROUGH RODE PACKAGE 1

sub48520-80048

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-12250iAE101,EE100..GCC199207-199508

ROUGH RODE PACKAGE 1

sub48609-12350

main48609-12250iAE101,EE100..GEN199205-199505

ROUGH RODE PACKAGE

sub48609-12350

main48609-12270iAE101,EE100199205-199508

sub48609-12330

main48609-12290iAE101,EE100..RHD..(4FC,5F)..(GLI,STD,XL,XLI)199205-199505

NEW ZEALAND SPEC

sub48609-12340

main48609-12290iAE102199402-199505

sub48609-12340

main48609-12330iAE10#,EE100..GEN199505-199508

main48609-12340iAE101,EE100..RHD..(GLI,XL,XLI)199505-199710

NEW ZEALAND SPEC

sub48609-12341

main48609-12340iAE102..ARL199505-199605

sub48609-12341

main48609-12350iAE101,EE100..GEN199505

ROUGH RODE PACKAGE

main48609-12350iAE101,EE100..GCC199508-199704

ROUGH RODE PACKAGE 1

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22049iAE10#,EE100199205

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94182-11400iAE10#,EE100199205

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-12250iAE101,EE100..GCC199207-199508

ROUGH RODE PACKAGE 1

sub48609-12350

main48609-12250iAE101,EE100..GEN199205-199505

ROUGH RODE PACKAGE

sub48609-12350

main48609-12270iAE101,EE100..GCC199205-199508

sub48609-12330

main48609-12290iAE102199402-199505

sub48609-12340

main48609-12290iAE101,EE100..RHD..(4FC,5F)..(GLI,STD,XL,XLI)199205-199505

NEW ZEALAND SPEC

sub48609-12340

main48609-12330iAE10#,EE100..GEN199505-199508

main48609-12340iAE102..ARL199505-199605

sub48609-12341

main48609-12340iAE101,EE100..RHD..(GLI,XL,XLI)199505-199710

NEW ZEALAND SPEC

sub48609-12341

main48609-12350iAE101,EE100..GEN199505

ROUGH RODE PACKAGE

main48609-12350iAE101,EE100..GCC199508-199704

ROUGH RODE PACKAGE 1

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22049iAE10#,EE100199205

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94182-11400iAE10#,EE100199205

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-12070iAE10#,EE100199602

main48684-32010iAE10#,EE100199205-199602

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-12070iAE10#,EE100199602

main48684-32010iAE10#,EE100199205-199602

48811BAR, STABILIZER, FRONT

main48811-12720iAE10#,EE100..GEN199205

main48811-12770iAE102..ARL199402-199605

main48811-12890iAE101,EE100..GEN199205

ROUGH RODE PACKAGE

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-12220iAE10#,EE100..GEN199205

main48815-12230iAE102..ARL199402-199605

main48815-12230iAE101,EE100..GEN199205

ROUGH RODE PACKAGE

48817CUSHION, FRONT STABILIZER

main48817-30020iAE101,EE100..GEN199205

ROUGH RODE PACKAGE

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iAE101,EE100..GEN199205

ROUGH RODE PACKAGE

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iAE101,EE100..GEN199205

ROUGH RODE PACKAGE

48819ABOLT, FRONT STABILIZER

main48819-20030iAE101,EE100..GEN199205

ROUGH RODE PACKAGE

48820LINK ASSY, FRONT STABILIZER

main48820-20021iAE102199402-199505

main48820-33010iAE101,EE100..RHD..(4FC,5F)..(GLI,STD,XL,XLI)199205-199710

W(STABILIZER BER BRACKET)

main48820-33010iAE102;AE101..GL;EE100..LHD..GEN199205-199505

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10183iAE101,EE100..RHD..(4FC,5F)..(GLI,STD,XL,XLI)199205-199710

W(STABILIZER BER BRACKET)

main90179-10183iAE102;AE101..GL;EE100..3FC,4F;EE100..LHD..XL..GEN199205

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-12130iAE10#,EE100..ARL,GEN199205

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-12060iAE10#,EE100..ARL,GEN199205

9017908111

main90179-08111

9017908210

main90179-08210

9418210800

main94182-10800

34 parts on this diagram · 1 diagram in section
