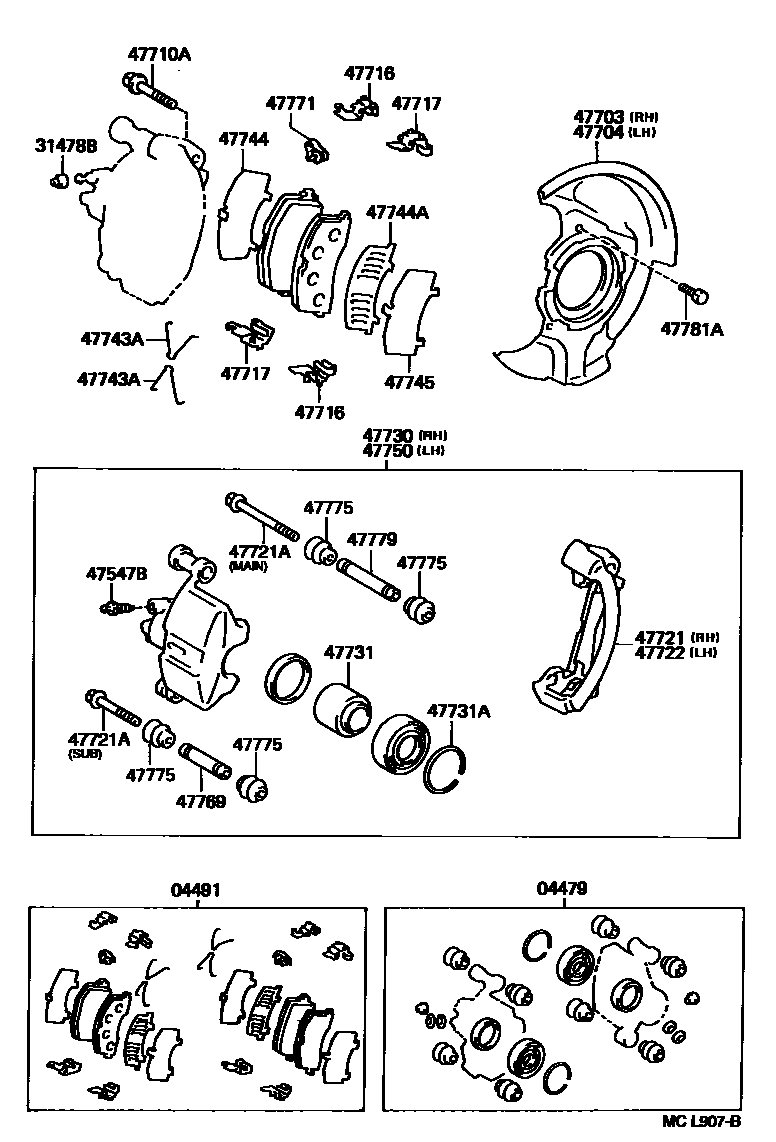

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12091iAE10#,EE100..GCC,GEN199205-199710

main04479-12180iAE102..ARL199402-199605

04491PAD KIT, DISC BRAKE, FRONT

main04491-12432iAE101,EE100199405-199505

sub04465-12090

main04491-12540iAE101,EE100..GL,STD,XL199205-199401

sub04491-12541

main04491-12541iAE101,EE100199401-199405

sub04491-12432

main04491-12560iEE100..RHD..5F199205-199401

NEW ZEALAND SPEC

sub04491-12561

main04491-12561iEE100..RHD..5F199401-199403

NEW ZEALAND SPEC

sub04491-12541

main04491-12580iAE101..GLI,XLI199205-199401

NEW ZEALAND SPEC

sub04491-12581

main04491-12581iAE101..GLI,XLI199401-199403

NEW ZEALAND SPEC

sub04491-12541

main04491-12650iAE102199402-199406

sub04491-12651

main04491-12651iAE102199406-199505

sub04465-33040

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAE10#,EE100199205-199608

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAE10#,EE100199205-199710

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-12160iAE101,EE100199205

main47781-12170iAE101..GLI,XLI199205-199710

NEW ZEALAND SPEC

main47781-12170iAE102199402-199710

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47782-12160iAE101,EE100199205

main47782-12170iAE101..GLI,XLI199205-199710

NEW ZEALAND SPEC

main47782-12170iAE102199402-199710

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iAE10#,EE100199205

*12-1.25PX25.8-19.5

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140iAE10#,EE100199610-199710

main47716-32031iAE10#,EE100..GCC,GEN199205-199610

main47716-33010iAE102..ARL199402-199605

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-33020iAE102..ARL199402-199605

main47717-20140iAE10#,EE100199610-199710

main47717-32031iAE10#,EE100..GCC,GEN199205-199610

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12120iAE101,EE100..GL,STD,XL199205-199710

main47721-12160iEE100..RHD..5F199205-199710

NEW ZEALAND SPEC

main47721-12170iAE101..GLI,XLI199205-199710

NEW ZEALAND SPEC

main47721-12170iAE102..GEN199505-199710

main47721-12210iAE102..ARL199402-199605

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003iAE10#,EE100..GCC,GEN199205-199710

*9-1.25PX71-25,SUB

main90119-09004iAE10#,EE100..GCC,GEN199205-199710

*9-1.25PX91-25,MAIN

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12120iAE101,EE100..GL,STD,XL199205-199710

main47721-12160iEE100..RHD..5F199205-199710

NEW ZEALAND SPEC

main47721-12170iAE101..GLI,XLI199205-199710

NEW ZEALAND SPEC

main47721-12170iAE102..GEN199505-199710

main47722-12030iAE102..ARL199402-199605

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12310iAE101,EE100..GL,STD,XL199205-199710

main47730-12400iAE101..GLI,SI,XLI199205-199710

NEW ZEALAND SPEC

main47730-12410iAE101..GLI,XLI199205-199710

NEW ZEALAND SPEC

main47730-12410iAE102..GEN199505-199710

main47730-12450iAE102..ARL199402-199605

47731PISTON, FRONT DISC BRAKE

main47731-12150iAE10#,EE100..GCC,GEN199205-199710

main47731-12180iAE102..ARL199402-199605

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iAE10#,EE100..GCC,GEN199205-199710

main90522-64003iAE102..ARL199402-199605

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-12070iAE101,EE100..GL,STD,XL199205-199401

main47743-12090iAE102..ARL199402-199605

main47743-32010iAE101..GLI,XLI199205-199401

NEW ZEALAND SPEC

sub47743-12070

main47743-32020iAE101..GLI,SI,XLI199205-199401

NEW ZEALAND SPEC

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20120iAE102..ARL199402-199605

main47744-32010iAE10#,EE100..GCC,GEN199205-199710

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-32040iAE10#,EE100..GCC,GEN199205-199710

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-20120iAE102..ARL199402-199605

main47745-32040iAE10#,EE100..GCC,GEN199205-199710

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12310iAE101,EE100..GL,STD,XL199205-199710

main47750-12400iAE101..GLI,SI,XLI199205-199710

NEW ZEALAND SPEC

main47750-12410iAE101..GLI,XLI199205-199710

NEW ZEALAND SPEC

main47750-12410iAE102..GEN199505-199710

main47750-12450iAE102..ARL199402-199605

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iAE10#,EE100..GCC,GEN199205-199710

main47769-50010iAE102..ARL199402-199605

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010iAE10#,EE100..GCC,GEN199205-199710

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-20080iAE102..ARL199402-199605

sub47775-30070

main47775-32010iAE10#,EE100..GCC,GEN199205-199710

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010iAE10#,EE100..GCC,GEN199205-199710

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iAE10#,EE100199205
