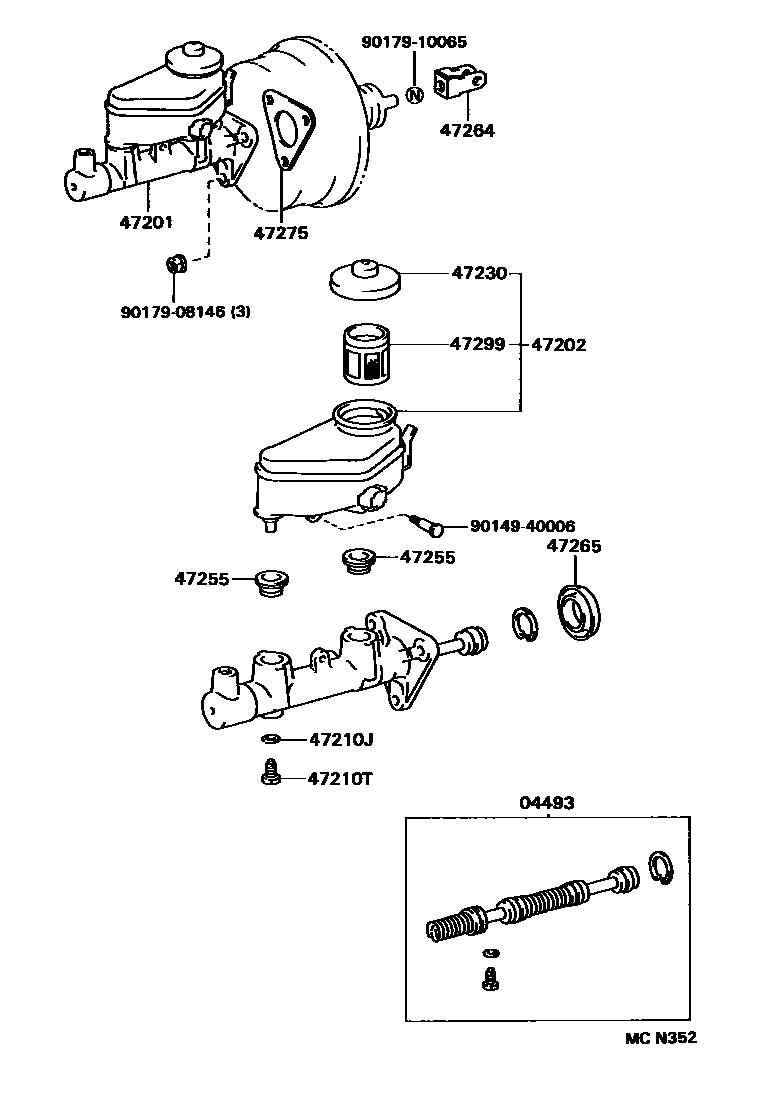

BRAKE MASTER CYLINDER

0001 1 0003 1

04493CYLINDER KIT, BRAKE MASTER

main04493-10130iAE10#..GLI199205-199505

W(ABS)

main04493-12180iAE10#,EE100199205-199505

main04493-12200iAE102..ARL199505-199605

W(ABS)

main04493-16080iAE102..ARL;AE101,EE100199505-199605

main04493-16090iAE102..GEN199505-199605

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-02010iAE101,EE100..LHD199411-199505

(L)

main47201-12680iAE101,EE100..RHD199205-199305

main47201-12710iAE101..GLI199205-199505

W(ABS)

main47201-12750iAE102..GEN199505-199605

main47201-12830iAE101,EE100..LHD199407-199505

(J)

sub47201-12800

main47201-12830iAE101,EE100..LHD199205-199407

sub47201-12800

main47201-12870iAE10#,EE100..RHD199305-199505

main47201-12880iAE102199402-199505

W(ABS)

main47201-1A020iAE101,EE100..LHD199505-199704

main47201-1A050iAE10#,EE100..RHD199505-199605

sub47201-1A410

main47201-1A090iAE102..ARL199505-199605

main47201-1A100iAE102..ARL199505-199605

W(ABS)

sub47201-1A140

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-12390iAE101,EE100..GL,GLI,STD,XL199205-199505

(J)

sub47220-32060

main47202-12390iAE10#,EE100199206-199407

sub47220-32060

main47220-02020iAE101,EE100..LHD199411-199505

(L)

main47220-17050iAE102..ARL199505-199605

main47220-32060iAE10#,EE100..GCC,GEN199505

sub47220-12180

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAE10#,EE100199205

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iAE10#,EE100199205

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iAE10#,EE100199205-199505

main47230-20140iAE102..ARL199505-199605

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-03010iAE101,EE100..LHD199411-199505

(L)

main47255-16010iAE101..XLI199205-199605

(J)

main47255-16010iAE10#,EE100199206-199407

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-16020iAE101..GLI,XLI199205-199710

main47264-33010iAE10#,EE100..RHD199407-199505

47265BOOT, MASTER CYLINDER

main47265-03010iAE101,EE100..LHD199411-199505

(L)

main47265-20050iAE101..XLI199205-199505

(J)

main47265-20050iAE10#,EE100199206-199407

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iAE10#,EE100..RHD199305

W(ABS)

main47275-32010iAE101,EE100199205-199704

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iAE10#,EE100199205

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

14 parts on this diagram · 2 diagrams in section
