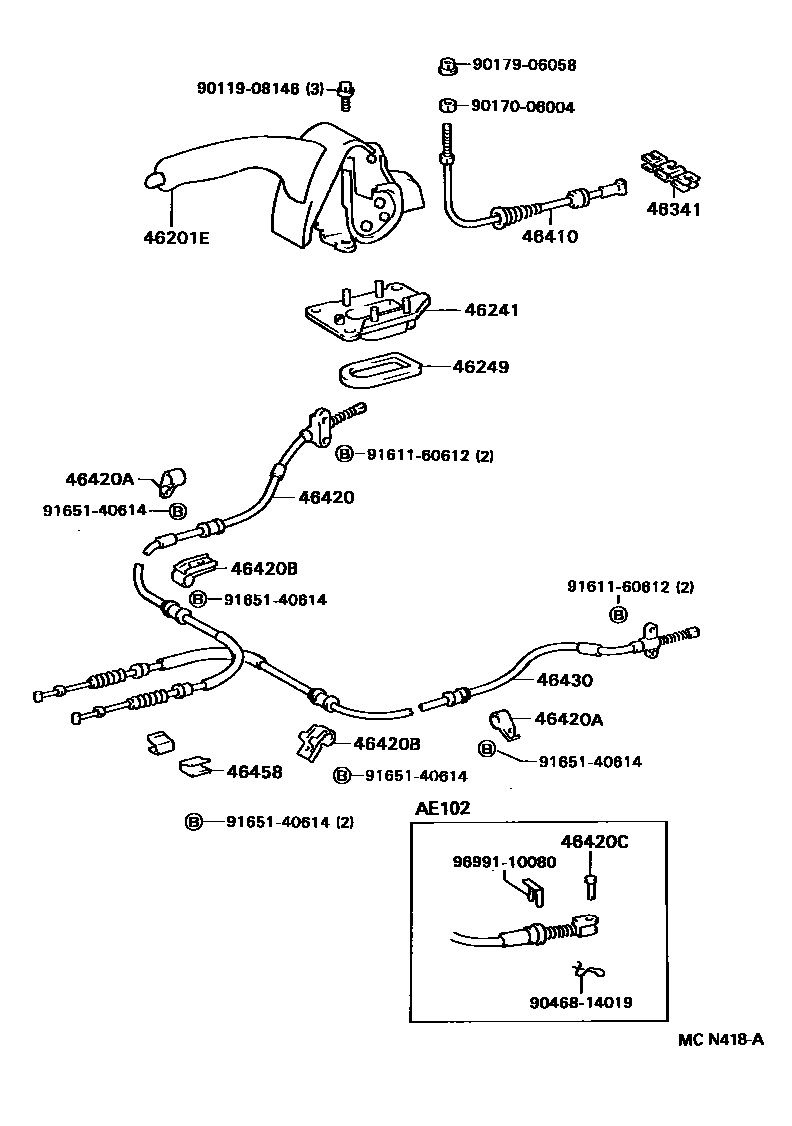

PARKING BRAKE & CABLE

0001 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02020-B0iAE101..GL,GLI,SI199306-199601

SHADOW GRAY,TRIM1#,(L)

main46201-02020-J0iAE102..GEN199505-199601

TYPE A:REFER TO ILLUSTRATION,DARK,TRIM8#

main46201-02021-B0iAE10#..(GL,GLI,SI)..(GCC,GEN)199601-199710

TYPE A:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1#

main46201-02021-J0iAE10#..(GL,GLI,SI)..(GCC,GEN)199601-199710

TYPE A:REFER TO ILLUSTRATION,DARK BLUE,TRIM8#

main46201-12150-B0iAE101,EE100..STD,XL,XLI199205-199505

SHADOW GRAY,TRIM1#

main46201-12150-J0iAE101,EE100..STD,XL,XLI199205-199505

DARK BLUE,TRIM8#

main46201-12160-B0iAE101..GL,GLI,SI199205-199505

SHADOW GRAY,TRIM1#,(J)

main46201-12160-J0iAE101..GL,GLI,SI199205-199505

DARK BLUE,TRIM8#,(J)

main46201-12170-B0iAE102199402-199505

SHADOW GRAY,TRIM1#

main46201-12180-B0iAE101,EE100..XL,XLI199505-199710

SHADOW GRAY,TRIM1#

main46201-12180-J0iAE101,EE100..XL,XLI199505-199710

DARK BLUE,TRIM8#

main46201-12190-B0iAE10#..(GL,GLI,SI)..(GCC,GEN)199505-199710

TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1#

main46201-12190-J0iAE10#..(GL,GLI,SI)..(GCC,GEN)199505-199710

TYPE B:REFER TO ILLUSTRATION,DARK BLUE,TRIM8#

main46201-12200-B0iAE102..ARL199505-199605

SHADOW GRAY,TRIM1#

46241BOOT, PARKING BRAKE LEVER

main46241-02010iAE10#..(GL,GLI,SI)..(GCC,GEN)199306-199710

TYPE A:REFER TO ILLUSTRATION

main46241-12090iAE101..GL,GLI,SI; AE102;AE101,EE100..STD,XL,XLI199306-199505

TYPE B:REFER TO ILLUSTRATION

main46241-12110iAE10#..(GL,GLI,SI)..(GCC,GEN); AE102..ARL;AE101,EE100..XL,XLI199505-199710

TYPE B:REFER TO ILLUSTRATION

46249SHIELD, PARKING BRAKE HOLE

main46249-02010iAE101..4FC..GL199306-199505

main46249-12010iAE10#..(GL,GLI,SI)..(GCC,GEN); AE102..ARL;AE101,EE100..STD,XL,XLI199206-199710

TYPE B:REFER TO ILLUSTRATION

46341EQUALIZER, PARKING BRAKE

main46341-12020iAE10#,EE100199205

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-02030iAE10#..(GL,GLI,SI)..(GCC,GEN)199505

TYPE A:REFER TO ILLUSTRATION

main46410-12210iAE10#,EE100199205-199505

main46410-12250iAE10#..(GL,GLI,SI)..(GCC,GEN)199505

TYPE B:REFER TO ILLUSTRATION

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02030iAE10#,EE100..GCC,GEN199306

(L)

main46420-12390iAE102..ARL199402-199605

main46420-12400iAE10#,EE100..GCC,GEN199205

(J)

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01746×2iAE10#,EE100199205

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01744iAE10#,EE100199205

LH

main90949-01747iAE10#,EE100199205

RH

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08040×2iAE102..ARL199402-199605

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02030iAE10#,EE100..GCC,GEN199306

(L)

main46430-12290iAE102..ARL199402-199605

main46430-12300iAE10#,EE100..GCC,GEN199205

(J)

46458RETAINER, CABLE

main46458-50010×2iAE10#,EE100199205

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9046814019

main90468-14019

9161160612

main91611-60612

9165140614

main91651-40614

9699110080

main96991-10080

18 parts on this diagram · 2 diagrams in section
