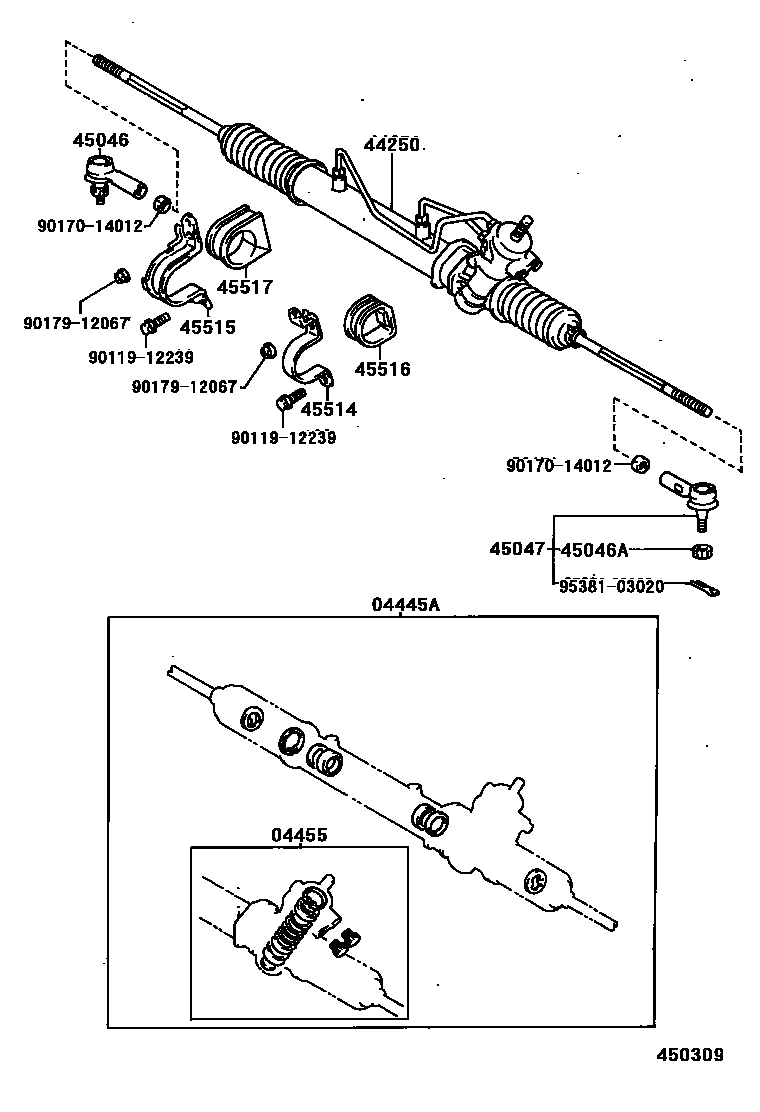

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0009 1 0010 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-12100iAE101..XLI199206-199208

KOYO GEAR BOX

main04445-12110iEE100..RHD..5F..XL199206-199505

W(POWER STEERING);NEW ZEALAND SPEC

main04445-12130iAE101..RHD199404-199505

KOYO GEAR BOX

main04445-12150iAE102;AE101,EE100..LHD199505-199710

TOYOTA GEAR BOX

main04445-12160iAE101..RHD199505-199710

KOYO GEAR BOX

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-10040iAE101..XLI199206-199208

KOYO GEAR BOX

main04455-12090iAE101..GLI,XLI199404-199505

NEW ZEALAND SPEC

main04455-12210iAE101..RHD199505-199710

KOYO GEAR BOX

sub04455-10030

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-12290iAE101..XLI199206-199208

KOYO GEAR BOX

main44250-12390iAE101,EE100..RHD..(4FC,5F)..(GLI,XL,XLI)199205-199505

NEW ZEALAND SPEC

main44250-12400iAE101,EE100..LHD199205-199505

main44250-12420iEE100..3FC;AE101,EE100..RHD..(GL,GLI,STD,XLI)199207-199505

TOYOTA GEAR BOX

main44250-12440iAE101..RHD199404-199505

KOYO GEAR BOX

main44250-12510iAE102199505-199707

NEW ZEALAND SPEC

main44250-12530iAE101..RHD199505-199710

KOYO GEAR BOX

main44250-12540iAE10#199707-199710

sub44250-12541

sub90178-08013

main44250-12560iAE101,EE100..LHD199505-199704

sub44250-12561

sub90178-08013

main44250-12620iEE100..3FC;AE101,EE100..RHD..(GL,GLI,STD,XLI)199205-199207

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iAE10#,EE100199205-199505

main45046-29305iAE10#,EE100199505

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAE10#,EE100199205

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iAE10#,EE100199205-199505

main45046-29305iAE10#,EE100199505

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12090iEE100..RHD199506-199710

W(POWER STEERING);NEW ZEALAND SPEC

main45514-12110iAE101,EE100..GL,SI,STD,XL199205

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-12170iAE10#,EE100199205

main45515-12180iAE101,EE100..LHD199205-199704

W(POWER STEERING)

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-12060iAE10#,EE100199205

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12111iAE10#,EE100199205

9011912239

main90119-12239

9017014012

main90170-14012

9017912067

main90179-12067

9538103020

main95381-03020

14 parts on this diagram · 8 diagrams in section
