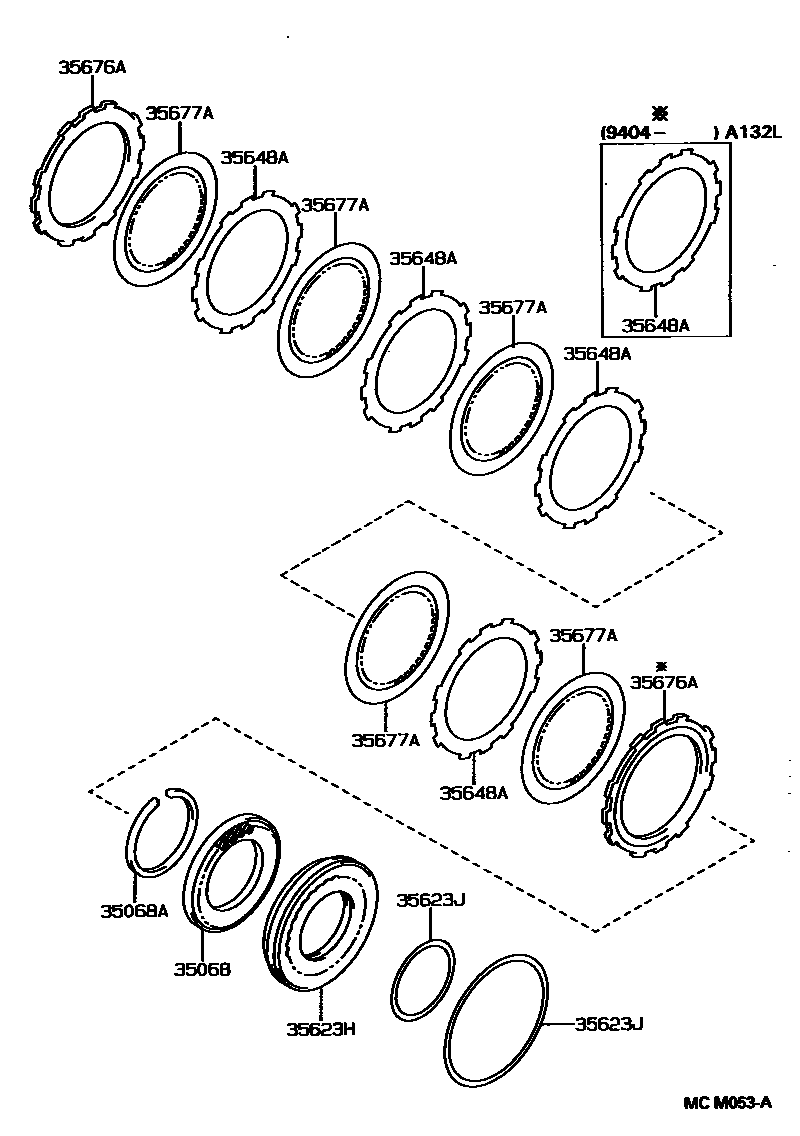

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-20010iAE10#..4FC199701

main35068-32010iAE10#,EE100..ATM199205-199701

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iAE10#,EE100..ATM199205

35623HPISTON, 1ST & REVERSE BRAKE

main35623-10010iEE100..3FC199206-199404

main35623-12010iAE101..4FC..GL199205-199308

main35623-12040iAE101..4FC..GL199308-199505

main35623-12050iAE10#..4FC..(GLI,SI,XLI)199308

main35623-12060iEE100..3FC199404-199505

main35623-20010iAE101..4FC..(GLI,SI,XLI)199205-199308

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iAE10#,EE100..ATM199205

INNER

main90301-99022iAE10#,EE100..ATM199205

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020×6iAE10#..4FC..(GLI,SI,XLI)199308

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010×2iAE101,EE100..ATM199205-199308

T=3.5

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12040×5iAE101..4FC..(GLI,SI,XLI); AE101..4FC..GL199205-199311

main35677-12060×6iAE10#..4FC..(GLI,SI,XLI)199311

main35677-32040×4iEE100..3FC199206-199404

main35677-32060×4iEE100..3FC199404-199505

7 parts on this diagram · 1 diagram in section
